Solar panel solar kit 300w controller

Solar kit 2x150W 12V MPPT The set includes two flexible solar panels with a power of 150 W each, made of monocrystalline solar cells, which ensures high efficiency even with limited sunlight. The flexible design of the panels allows them to be easily installed and adapted to various surfaces, which is crucial in mobile applications.

The key element of the set is the MPPT 30A charging controller, which, thanks to the MPPT (Maximum Power Point Tracking) technology, significantly increases the efficiency of the photovoltaic system - by up to 25%. compared to traditional PWM controllers. This allows for more efficient use of solar energy and increases the reliability of the entire system. The included set of solar cables, 2x5 meters long and 4mm2 in diameter, ensures a stable and safe connection between the panels and the controller. This set enables the effective collection of solar energy and its use to power various 12V devices.

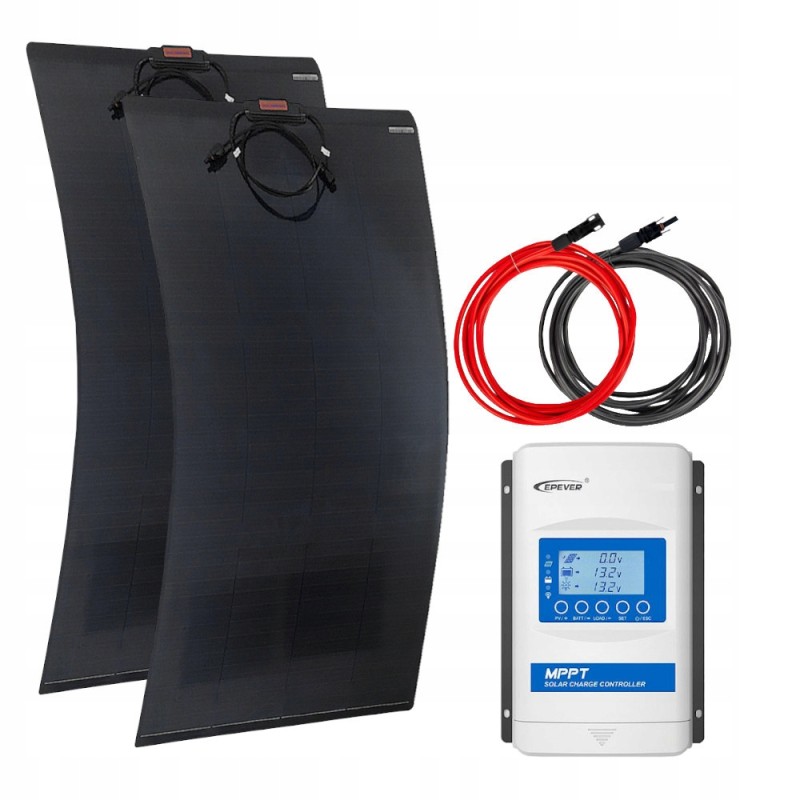

The set includes:* 2x Solarfam 150W flexible panel

* 1x Epever XTRA MPPT 12/24V 30A charging controller

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Solarfam 150W flexible panel - 2 pieces Cells: Monocrystalline

Peak power: 150W

Power tolerance: +3%

Efficiency: 18.8%

Power voltage [Vmp]: 22.12 V

Max current [ Imp]: 6.79 A

No-load voltage [Voc]: 26.29 V

Short circuit current [Isc]: 7.19 A

Temperature range: -20 to +65 °C

Connection box: IP67

Cables: 65 cm with MC4 tips

Base: Black

Height: 117 cm

Width: 68 cm

Thickness: 2 mm

Weight: 3.5 kg

Epever XTRA MPPT charging controller 12/24V 30A Max. PV circuit voltage: 100V / 92V (at temperature 25°C)

Maximum input power: 390W/12V - 780W/24V

Nominal system voltage: 12/24VDC

Battery input voltage range: 8~32V

Rated current discharge: 30A

Rated charging current: 30A

No-load efficiency: 98.6%

Load efficiency: 96.6%

Maximum input voltage: 100V

Operating temperature: -25°C ~ +50°C

Power consumption: ›12mA

Compatibility with batteries:: Liquid, AGM, Gel, Lithium, LiFePO4

Tightness class: IP33

Dimensions (length x width x height): 230 x 165 x 63mm

Weight [kg]: 1.31

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
