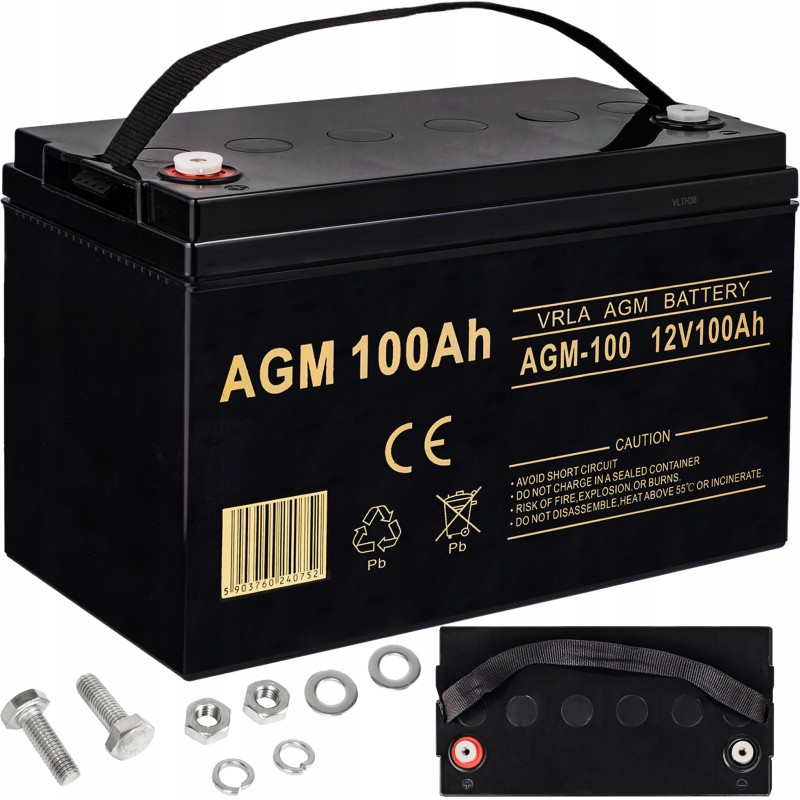

Maintenance-free AGM battery for UPS 12v 100ah

AGM VRLA BATTERY VOLT POLSKA 100Ah 12V PRODUCTION 2022

CHARACTERISTICS: The batteries are made using AGM (Absorbent Glass Mat) VRLA technology and are mainly intended, among others, for use in emergency power systems (UPS, automation systems), solar installations and converters tension.

They work best in buffer charging systems, but they can also be used in applications where batteries operate cyclically.

They are characterized by high resistance to deep discharges. For a discharge depth of up to 50%, they have approximately 650 operating cycles.

They absorb gases very well.

The designed service life is 8-10 years at 20-25°C.

They can work in any position

They are characterized by high efficiency and performance

High resistance to mechanical damage and high temperatures

Safe to use (pressure valves)

AGM VRLA batteries are characterized by an internal structure based on separators made of fiberglass. The separators are placed between the lead plates inside the energy storage tank in the battery.

An additional feature of this type of batteries is that they have an automatic sealing system (Valve Regulated pressure valves). The valves open when too much pressure is detected inside the battery, safely venting the resulting gas outside the housing, preventing damage. This situation most often occurs when the battery is overcharged.

The battery casing is made of ABS material and the cells are made of copper.

APPLICATION: Emergency power supply systems (UPS power supplies, converters)

Alarm systems, fire protection

Photovoltaic installations

Access control systems

Power supply for cash registers and fiscal printers

CCTV systems

Power supply for electric toys

Telecommunication systems

Backup lighting system

Power supply for medical equipment

Power supply for electric vehicles (motorcycles, quads, scooters, lawn mowers, boats, motorboats, etc.)

Power supply for mobile devices (wheelchairs, golf carts, forklifts, cleaning machines)

TECHNICAL PARAMETERS: Expected service life: 8 - 10 years.

Capacity (25 °C): 100 Ah

Voltage: 12V

Maximum charging current: 30 A

Mounting: M6 (screws included)

Total height: 220 mm

Width: 170 mm

Length: 325 mm

Weight:23 kg +- 4%

Internal resistance (25 °C): 19 mΩ when fully charged

Self-discharge: 2-3% per month at 25 °C

Capacity (40 °C): 102%

Capacity (25 °C): 100 %

Capacity (0 °C): 85 %

Capacity (-15 °C): 65 %

Buffer charging: 13.5 – 13.8 V (-18 mV/C)

Cyclic charging: 14.5 – 15.0 V (-30 mV/C)
