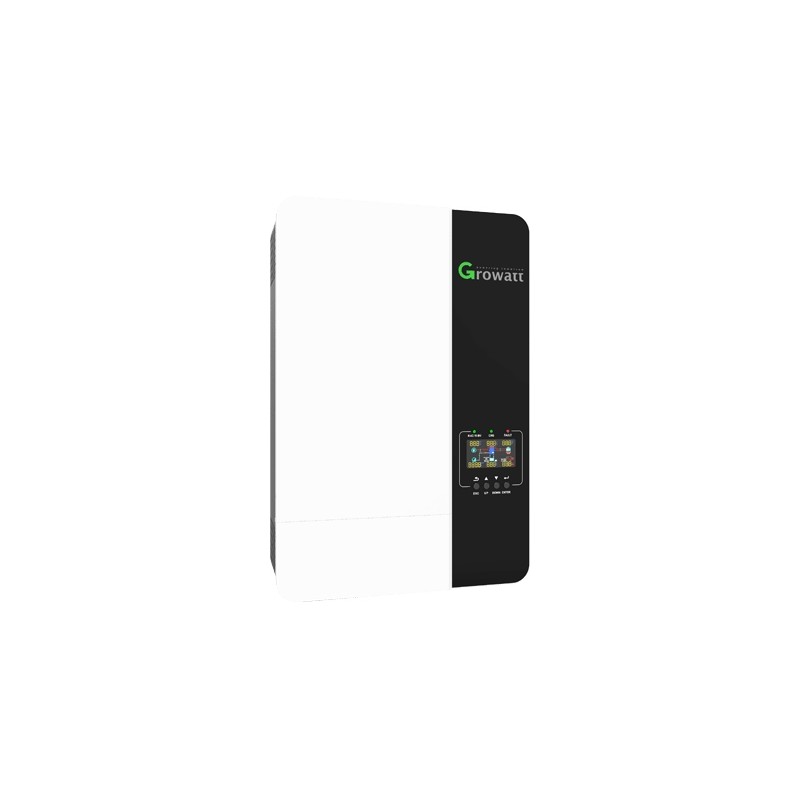

Inverter 1-phase off grid 5kw 1 MPPT gro

1-phase off-grid inverter inverter 5kW 1 MPPT Growatt SPF5000ES The presented off-grid inverter by Growatt is a great solution for the constantly rising electricity prices.

Growatt SPF5000ES allows you to set energy flow priorities, which ensures the most optimal use of the purchased equipment, and thus shortens the return on investment as much as possible. First, it transmits energy from the sun to the receivers; if there is excess energy, it also charges the connected batteries. If the production from PV is less than the current consumption, it selects energy from the batteries, and if they are empty or not there at all (yes, it can also work without batteries), it takes the missing electricity from the power grid, if it is connected to it, of course .

The product will work well both in places where it is not possible to supply power from the network, and in homes, as a relief from electricity bills, or even their disappearance in terms of kilowatt hours (unfortunately, we cannot get rid of fixed fees by being connected to the grid).

The inverter has a separate AC output circuit, so if someone wants to connect it to an existing electrical installation, you must first disconnect the network!

Specification Battery

Battery voltage - 48 V

Battery type - Lithium / lead-acid

AC side (input and output)

Nominal output power - 5000 VA / 5000 W

Instantaneous output power - 10,000 VA

Possibility of parallel operation - Yes, maximum 6 units

AC voltage parameters - 230VAC ± 5% @ 50/60Hz

Efficiency - 93%

Voltage waveform - Full sine

Switch time - 10 ms typical, 20 ms maximum

Charging current - 80 A

AC input voltage - 230 V

DC input (photovoltaic modules)

Maximum PV power - 6,000 W

Maximum PV current - 22 A

Maximum PV voltage - 450 V DC

Maximum charging current from PV - 100 A

MPPT operating voltage range - 120 V DC ~ 430 V DC

Number of independent MPP trackers / chains per tracker - 1 / 1

Other information

Tightness class - IP20

Dimensions (height x width x depth) - 485 x 330 x 135 mm

Net weight - 12 kg

Permissible operating humidity - 5% - 95%

Permissible operating altitude above sea level - <, 2000 meters

Permissible operating temperature - 0°C - 55°C

Permissible storage temperature - -15°C - 60°C
