Solar kit 150W 12V MPPT 15A* Product code: 35975

The 150W solar kit is a highly efficient, flexible solution for obtaining solar energy, ideal for users of campers, boats or camping sites. The set includes a flexible solar panel with a power of 150 W, made of monocrystalline cells, which ensures high efficiency in converting sunlight into electricity. Its flexibility allows installation on a variety of surfaces, and the durable construction guarantees long-term use. The central element of the set is the MPPT 15A charging regulator, which increases the efficiency of the photovoltaic system by up to 25% compared to classic PWM regulators. MPPT technology effectively manages the energy obtained from the panels, adapting it to the current sunlight conditions.

The included set of solar cables with a length of 2x5 meters and a diameter of 4 mm2 allows easy and quick connection of the panels with the regulator. The recommended range of battery capacity for use with this set is 80-120Ah, which allows for the effective accumulation of energy to power 12V devices.

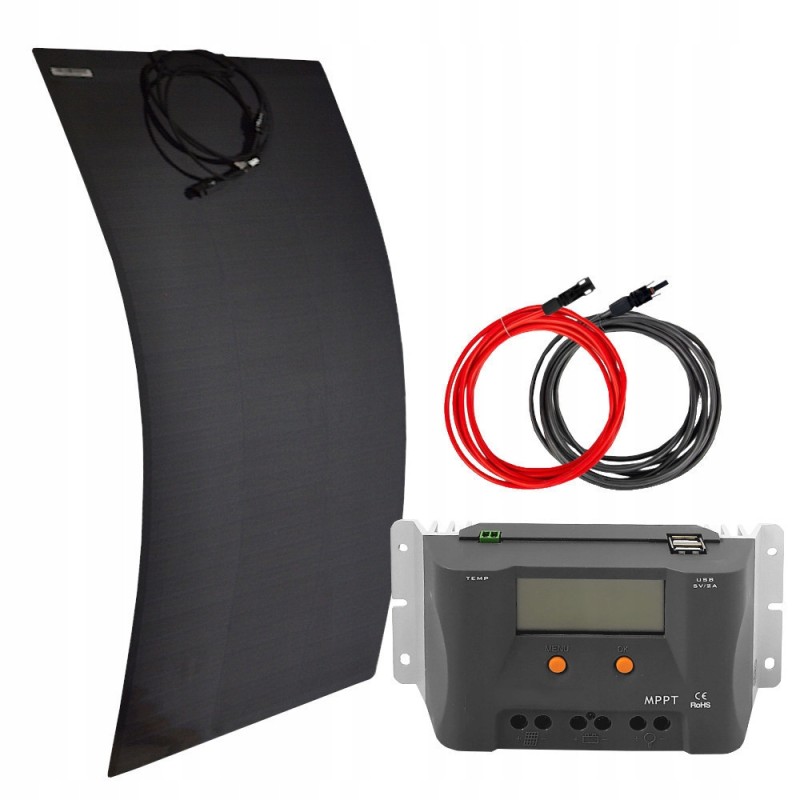

The set includes:* 1x Solarfam 150W flexible panel

* 1x Lumiax MPPT 12V 15A charging regulator

* 1x Set 2x5m 4mm2 solar cables terminated with connectors

Solarfam 150W flexible panel Cells: Monocrystalline

Peak power: 150W

Power tolerance: +3%

Efficiency: 18.8%

Power voltage [Vmp]: 20.35 V

Max current [Imp]: 7.37 A

No-load voltage [Voc]: 24.05 V

Short circuit current [Isc]: 7.81 A

Temperature range: -20 to +85 °C

Connection box : IP67

Cables: 65 cm with MC4 connectors

Substrate: Black

Height: 117 cm

Width: 68 cm

Thickness: 2 mm

Weight: 3.5 kg

Lumiax MPPT 12V 15A charge controller System voltage: 12V

Max. charging current: 15A

MPPT charging voltage: ‹14.5 (at 25°C)

Receiver disconnection at low voltage: 10.8~11.8V SOC1~5

Reconnection voltage: 11.6~12.8V

Overcharge protection: 15.5 V

Max. battery connector voltage: 35V

Battery type: Liquid, Gel, AGM

Max. PV connector voltage: 30V

Max. input power: 200W

Dusk/dawn detection voltage: 8.0V

MPPT tracking range: ~Voc0.9

Output current: 10A

USB interface: 5V, 2A

Max. tracking efficiency: >, 99.9%

Max. charging conversion: 96.5%

Own power consumption: 7mA

Ambient temperature: -20 ~ +50°C

Storage temperature: -25 ~ +80°C

Protection rating: IP32

Dimension: 18, 9 x 9.6 x 5.3 cm

Weight: 0.48 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
