Solar panel solar kit 200w MPPT controller

Solar kit 200W 12V MPPT Holders* Product code: 36378

The solar kit with a power of 200W, using a monocrystalline solar panel, is an effective solution for powering electrical devices in campers, campers and boats.

Includes a 20A MPPT charge regulator, which effectively increases the efficiency of the system photovoltaic by up to 25% compared to standard PWM controllers. The set also includes 2x5 meters of solar cables with a cross-section of 4 mm², terminated with appropriate connectors, which facilitates installation. Additionally, the set includes practical corner brackets and brackets for stable installation, as well as a roof adapter for easy integration with various surfaces.

The optimal battery for this set is a model with a capacity of 80 to 120Ah.

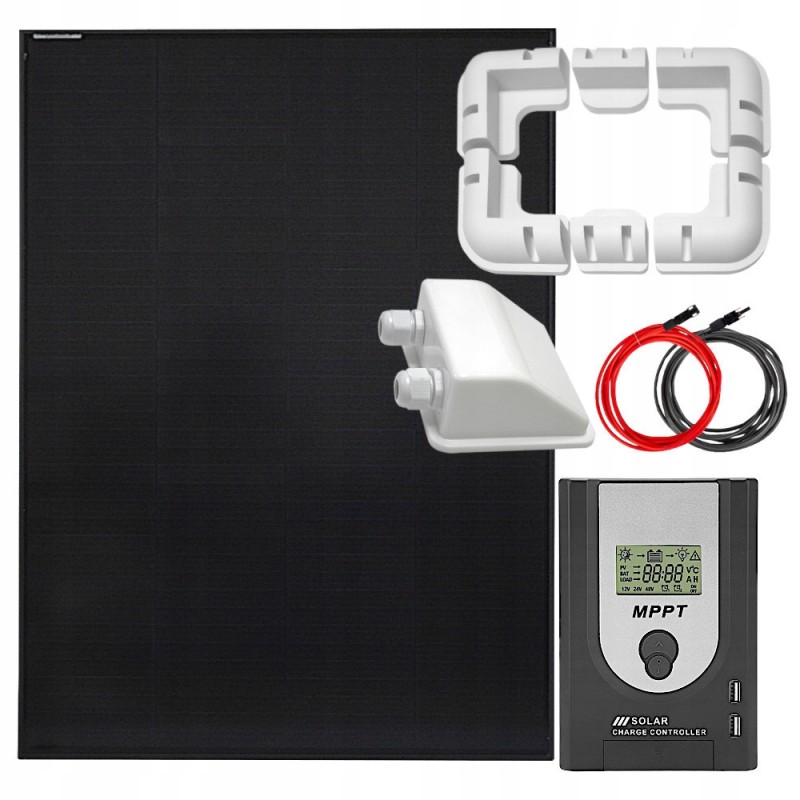

The set includes:* 1x Solarfam solar panel 200W monocrystalline

* 1x MPS 20A MPPT 12/24V USB charging controller

* 1x Corner holders for solar panels

* 1x Solar panel bracket holder

* 1x Roof adapter for solar cables

* 1x Set of 2x5m 4mm2 solar cables with connectors

Panel solar Solarfam 200W monocrystalline Cells: Monocrystalline

Peak power: 200 W

Power tolerance: ± 3%

Efficiency: 22%

Power voltage [Vmp]: 18.15 V

Max current [Imp]: 11, 02 A

No-load voltage [Voc]: 21.57 V

Short-circuit current [Isc]: 11.69 A

Operating temperature: -40°C to +85°C

Protection: Bypass diode

Frame : Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 110 cm

Width: 89 cm

Frame: 3 cm

Weight: 11.2 kg

MPS 20A MPPT 12/24V USB charging controller Output current: 20A

System voltage: 12V/24V automatic detection

Max. charging current: 20A

Battery voltage: 8V - 32V

Max. solar panel voltage: 75V

Max. solar panel power: 260W / 520W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 17.5 x 12 x 4.7 cm

Weight: 0 , 83 kg

Corner holders for solar panels Number of elements: 4 elements

Material: ABS, UV resistant

Color: White

Dimensions: 15 x 15 x 3.5 cm

Weight: 1.92 kg

Solar panel support holder Dimension: 8 x 7.5 x 4 cm

Cutout for solar panel: 25 x 30 mm

Color: White

Material: ABS

Roof adapter for solar cables Material: ABS

UV resistance: YES

Color: White

Number of pieces in the set: 1

Height: 4.50 cm

Width: 9.30 cm

Length: 11, 30 cm

Weight: 0.18 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
