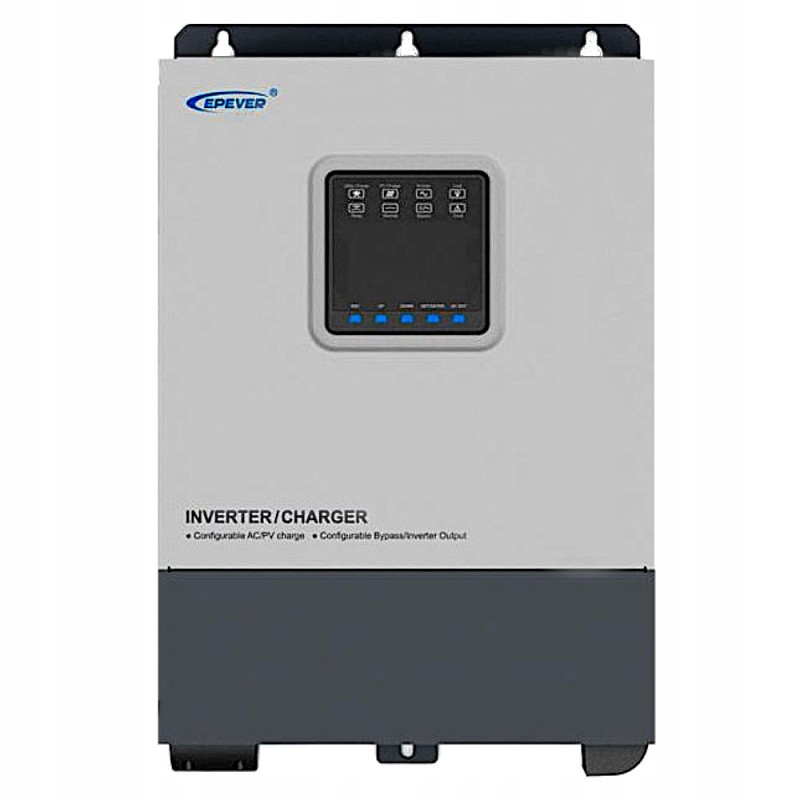

Hybrid inverter up3000 24v 3000w 3kw

Off Grid Epever MPPT Hybrid Inverter 24V 230V 3000W* Product code: 4S-3343

UP3000-HM10022 HI Series Hybrid Inverter is an inverter charger that supports various energy management modes for solar/grid/generator charging and power supply from the grid/AC load inverter .

To maximize the use of solar energy, users can choose energy sources according to actual needs and flexibly treat utilities as supplements. It aims to provide users with high-quality, stable and reliable electricity.

The UPower-Hi inverter can work with any gel, AGM, lead-acid and LifePO4 batteries.

Product features:

Supports battery mode or non-battery mode

Surge protection and reverse connection to perfectly support lithium battery system

Three charging modes: Solar only, Solar priority, Utility and Solar

Two AC output modes: grid priority and inverter priority

High MPPT tracking efficiency not less than 99.5%

PFC technology that ensures high AC to DC charging power ratio and reduces power grid consumption Capacity Advanced SPWM technology and pure sine wave

Configurable battery charging current and discharge current

Configurable grid charging current

Self-learning SOC function

4.2-inch LCD display for monitoring and modifying system parameters

Optional WiFi or GPRS remote control via isolated RS485 communication port

BMS-Link port and optional BMS-Link communication protocol module

Technical Data **** Model : UP3000-HM10022

Nominal battery voltage: 24VDC

Battery input voltage range: 21.6～32VDC

Continuous output power: 3000W

Overload (5s): 6000W

Output voltage range: 220VAC±5%,230VAC(- 10%～+5%)

Output frequency: 50/60±0.1 Hz

Output mode: Single phase

Output wave: Pure sine wave

Maximum efficiency: 95%

Input voltage range: 160VAC ～ 280VAC （range operating voltage), 170 VAC ~ 270VAC (initial voltage range)

Max. Media charging current: 80A

MPPT voltage range: 80～350V

Max. Open circuit voltage: 450V (Minimum temperature), 395V (25℃)

Max. PV input power: 4000W

Max.PV charging current: 100A

Compatibility with batteries: AGM, Gel, Liquid, Lithium

Tracking efficiency: ›99.5%

Charging conversion efficiency: 98%

Own consumption: ›1 .2A

Protection grade: IP30

Working environment temperature: -20℃～50℃（full input and output without derating）

Dimension: 64.2 x 38.1 x 14.9cm

Mounting dimension : 230 mm

Mounting hole size: Φ.8 mm

Weight: 19 kg
