Solar kit 170W 12V MPPT Xtra* Product code: 35968

The solar kit with a power of 170W is equipped with a monocrystalline solar panel that ensures high efficiency in converting sunlight into electricity. The key element of the set is an advanced MPPT charging controller, which optimizes the charging process and increases the efficiency of the photovoltaic system by up to 25% compared to conventional PWM controllers. The set also includes solar cables with a length of 5 meters each and a cross-section of 4 mm2, which are terminated with connectors, which facilitates installation and ensures stable connections. Additionally, the set is equipped with an MT50 control panel, which allows easy monitoring and control of the system operation.

The suggested battery for operation in the set with 170W solar panels is a battery with a capacity of 80-120Ah.

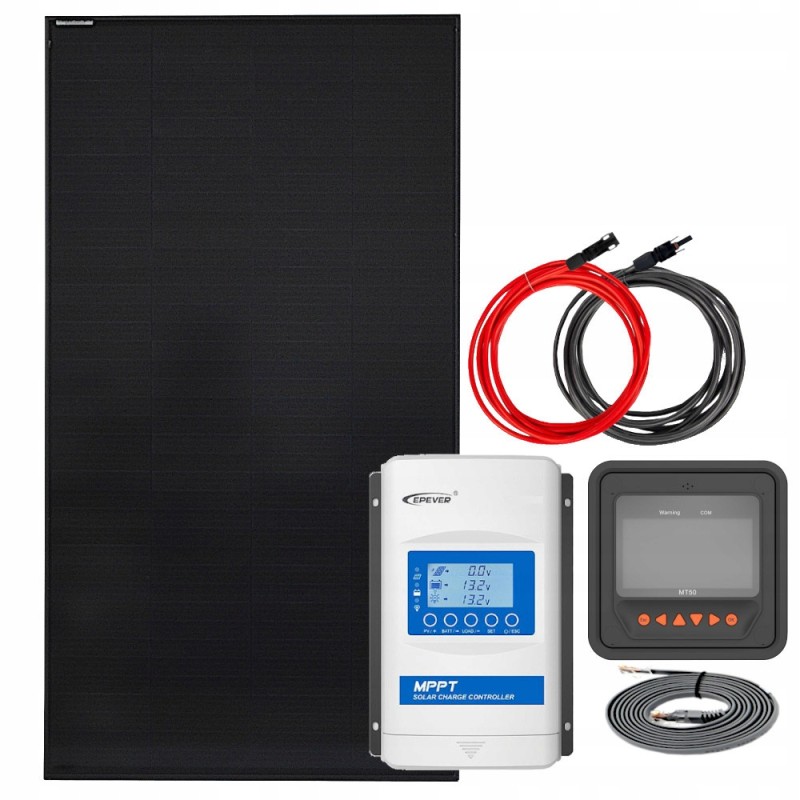

The set includes:* 1x MT50 Control Panel - meter with LCD display

* 1x Epever XTRA MPPT 12/24V 20A charging controller

* 1x Solarfam 170W monocrystalline solar panel

* 1x Set of 2x5m 4mm2 solar cables with connectors

MT50 Control Panel - meter with LCD display Consumption with backlight and sound on: ‹65 mA

Consumption with backlight on: ‹23 mA

Consumption with backlight off: ‹15 mA

Ambient temperature: -20°C / +70°C

Panel dimensions: 98 x 98 mm

Frame dimensions: 114 x 114 mm

Connection socket: RJ45

Cable length: Standard - 2 m

Weight: ~ 0.23 kg

Epever XTRA MPPT charging controller 12/24V 20A Max. PV circuit voltage:: 100V / 92V (at temperature 25°C)

Maximum input power:: 260W/12V - 520W/24V

Nominal system voltage:: 12/24VDC

Battery input voltage range:: 8~32V

Rated discharge current:: 20A

Rated charging current:: 20A

No-load efficiency: 98.3%

Load efficiency: 96.4%

Maximum input voltage: 100V

Operating temperature: -25° C ~ +50°C

Power consumption:: ›12mA

Compatibility with batteries:: Liquid AGM, Gel, Lithium, LiFePO4

Tightness class: IP33

Dimensions (length x width x height):: : 217 x 158 x 56.5mm

Weight [kg]:: 0.96

Solarfam 170W monocrystalline solar panel Cells: Monocrystalline

Peak power: 170 W

Power tolerance: ± 3%

Efficiency: 21.4%

Max power voltage [Vmp]: 20.41 V

Max current [Imp] ]: 8.32 A

No-load voltage [Voc]: 24.26 V

Short circuit current [Isc]: 8.75 A

Operating temperature: -40°C to +85°C

Protection: Diode bypass

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 123 cm

Width: 67 cm

Frame: 3 cm

Weight: 8 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
