Solar panel solar kit 170w MPPT controller

Solar kit 170W 12V MPPT* Product code: 35961

The solar kit 170W MPPT is an advanced solution for generating electricity, ideal for campers, boats and camping sites. The central element of the set is a 170W monocrystalline solar panel, which is characterized by high efficiency and durability. The key part of the set is the MPPT charge controller, which is optimized to maximize the efficiency of solar panels. Thanks to the use of MPPT technology, the efficiency of the photovoltaic system can increase by up to 25% compared to traditional PWM controllers. This makes the system more efficient in converting solar energy into electricity. The kit also includes a set of solar cables 2x5 meters with a cross-section of 4mm2, which ensures easy and safe installation. The cables are resistant to external factors, which guarantees reliability and long-term use.

The 170W MPPT solar kit is particularly recommended for applications where reliability and efficiency are required, such as powering small 12V electrical devices, including LED TVs, lighting, chargers or energy-saving refrigerators. A battery with a capacity in the range of 80-120Ah is recommended to work with this set, which provides adequate capacity for energy storage. This set is an excellent choice for people looking for an independent source of energy, especially in places away from the electricity grid.

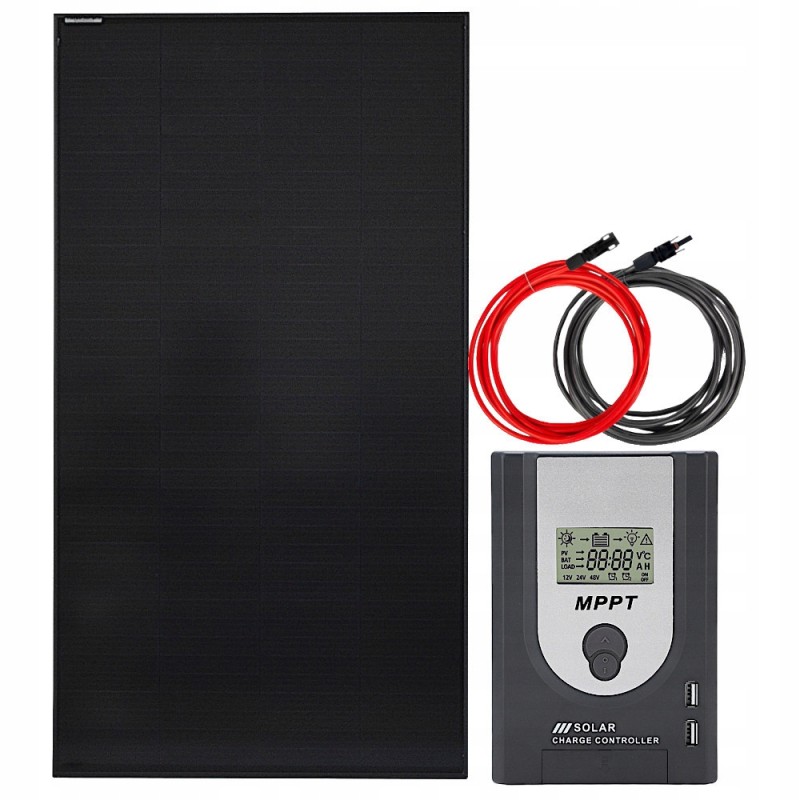

The set includes:* 1x Solarfam 170W monocrystalline solar panel

* 1x MPS 20A MPPT 12/24V USB charging controller

* 1x Set of 2x5m solar cables 4mm2 terminated with connectors

Solarfam 170W monocrystalline solar panel Cells: Monocrystalline

Peak power: 170 W

Power tolerance: ± 3%

Efficiency: 21.4%

Max power voltage [Vmp]: 20.41 V

Max current [Imp]: 8.32 A

No-load voltage [Voc]: 24.26 V

Short circuit current [Isc]: 8.75 A

Operating temperature: from -40°C to +85°C

Protection: Bypass diode

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 123 cm

Width: 67 cm

Frame: 3 cm

Weight: 8 kg

MPS 20A MPPT 12/24V USB charging controller Output current: 20A

System voltage: 12V/24V automatic detection

Max. charging current: 20A

Battery voltage: 8V - 32V

Max. solar panel voltage: 75V

Max. solar panel power: 260W / 520W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 17.5 x 12 x 4.7 cm

Weight: 0 , 83 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
