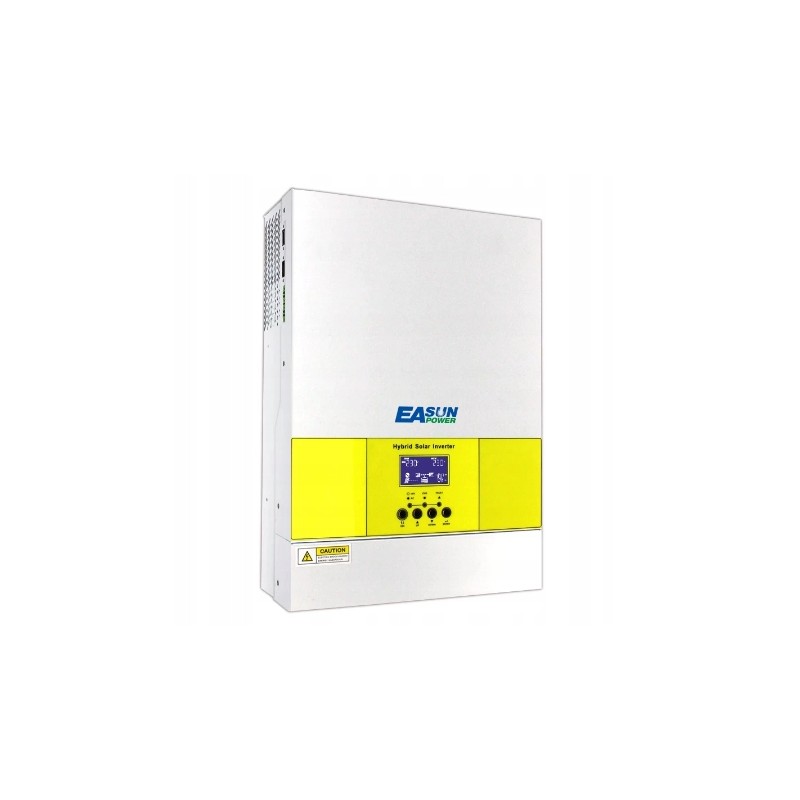

Easun 5 6 kw solar inverter mppt 100a wifi off grid

EASUN solar inverters are designed to build independent 230V off-grid power systems based on energy obtained from PV panels, the power grid and a battery. Thanks to their modular design and flexible configuration, EASUN inverters can operate in UPS mode with battery charging from PV panels and/or the power grid, they can also work in buffer systems powered only by PV panels and/or supported by power from the grid.

General information

*Pure sine wave inverter

*WIFI

*High PV input voltage range

*Built-in MPPT controller

* Battery equalization function for optimization

Battery performance and life cycle extension

* The inverter works without batteries *Built-in anti-twilight kit for harsh environments MPPT, what is it? The characteristic name MPPT comes from the English words translated as Maximum Power Point (MPP for short), which is used in the current-voltage description of solar panels. MPP is the point at which the solar panel obtains the highest voltage in given atmospheric conditions. In turn, the name MPPT refers to charging regulators that are equipped with a special electronic algorithm. This is what allows you to constantly track the Maximum Power Point of the electrical voltage in photovoltaic panels. The set includes:

Solar inverter

wifi

The manual in Polish can be downloaded in the additional information tab Technical parameters Rated power: 5.6KVA/5.6KW

Parallel operation of units: Yes, up to 9 devices

Entrance

Voltage 230 VAC

Supports a voltage range of 170-280 VAC (for personal computers) 90-280 VAC (for home devices)

Frequency range 50 Hz / 60 Hz (auto detection)

Output

AC voltage regulation (for battery power mode) 230VAC ± 5%

Peak power 11000VA

Efficiency (maximum) 93% ~ 96%

Power supply switching time: 15s @>,= 150% load, 10s at 110%-150% load

Waveform: Pure sine wave

Battery

Battery voltage 48VDC

Variable charging voltage 54 VDC

Overcharge protection63VDC

Solar charger and AC/DC rectifier

Solar charger type MPPT

Maximum open circuit voltage of photovoltaic panels: 500 VDC

Maximum PV power 5500W

MPPT Range Operating Voltage 150 ~ 450 VDC

Maximum charging current of solar panels 100A

Maximum AC charging current of the rectifier 60A

Total maximum charging current 100A

The output stable sinusoidal supply voltage of 230V (220V, 240V) is perfect for powering all electrical energy receivers, and the built-in starting overload support system allows you to power receivers with high starting current, such as compressors in refrigerators and generators.
