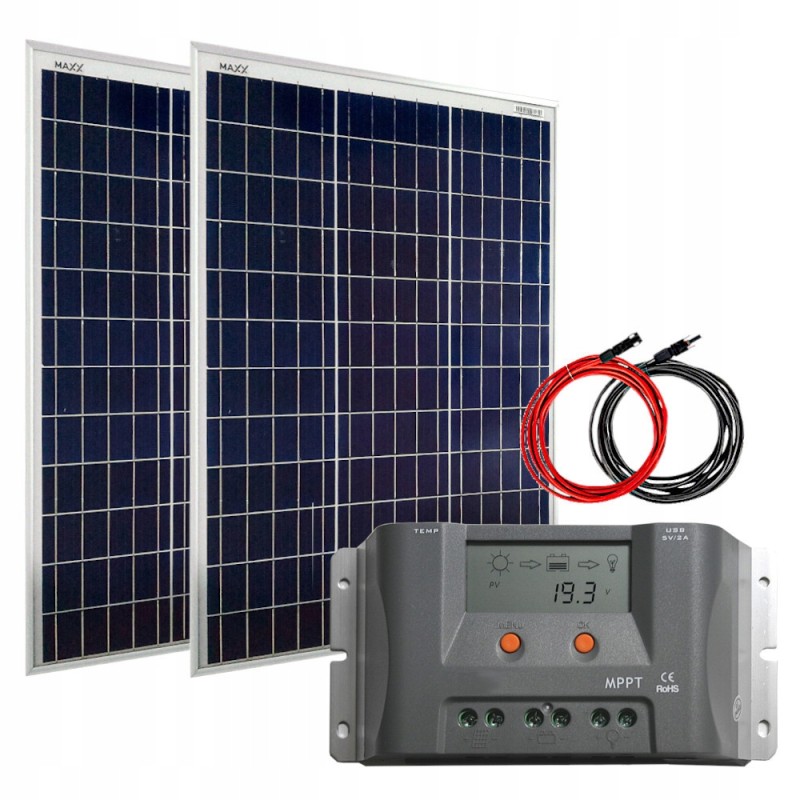

Solar panel set 2x50w 12v regulator 2xusb

Solar panel 2x50W MPPT controller 2xUSB * Product code: 34175

Two-panel solar set with a total power of 100W (2x50W) uses advanced polycrystalline cells, characterized by reliability and a long service life of up to 25 years. This is an effective choice for those who are looking for a sustainable source of solar energy. The included MPPT 10A charge controller ensures optimization of solar energy conversion, which increases the efficiency of battery charging. Additionally, a double USB connector allows you to easily connect and charge 5V mobile devices, such as phones, tablets or power banks. The whole is complemented by a set of solar cables with a length of 2x5m and a diameter of 4mm2, which facilitates installation and ensures trouble-free connection of the panels with the regulator. The set also allows you to connect a battery with a capacity of 60 to 100Ah, which further expands the scope of its applications.

The set includes:* 1x Lumiax MPPT 10A charging controller

* 2x Maxx 50W polycrystalline solar panel

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Regulator charging Lumiax MPPT 10A System voltage: 12V

Max. charging current: 10A

MPPT charging voltage: ‹14.5/29.0V (at 25°C)

Boost voltage: 14.5/29.0V (at 25°C)

Equalization voltage: 14.8/29.6V (at 25°C) )

Float voltage: 13.7/27.45V (at 25°C)

Load disconnection at low voltage: 10.8~11.8V/21.6~23.6V SOC1~5

Reconnection voltage: 11.6~12.8V/23.2~25.6 V

Overcharge protection: 15.5/31.0V

Max. battery connector voltage: 35V

Temperature compression: -4.17mV/K per cell (Boost, Equalization) -3.33mV/K per cell (Float)

Battery type: Liquid, Gel

Max. PV connector voltage: 45V

Max. input power: 130W

Dusk/dawn detection voltage: 8.0/16.0V

MPPT tracking range: ~Voc0.9

Output current: 10A

USB interface: 5V, 2A

Operation mode: Standard, D2D, Illumination street (2 -9h)

Max. tracking efficiency: >, 99.9%

Max. charging conversion: 96.5%

Dimension: 189 x 96 x 53 mm

Weight: 0.48 kg

Own power consumption: 7mA

Ambient temperature: -20 ~ +50°C

Storage temperature: - 25 ~ +80°C

Ambient humidity: 0 ~ 100%RH

Protection level: IP32

Maxx 50W polycrystalline solar panel - 2 pieces Cells: Polycrystalline

Peak power [W]: 50

Power tolerance [%]: +3%

Max power voltage: Vmp [V]: 18

Max current: Imp [ A]: 2.77

No-load voltage Voc [V]: 21.6

Short circuit current: Isc [A]: 2.96

Dimensions: 68 x 51 x 3 cm

Weight [kg]: 4, 8

Terminal: MC4

Frame: Anodized aluminum

Glass: Highly transparent tempered glass, 3.2mm thick

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
