Solar battery 400w monocrystalline 12v solar

Solar kit 400W 12V MPPT 40A* Product code: 35695

The solar kit with a power of 400W, consisting of two 200W panels, is a modern and effective solution for obtaining solar energy. These panels, using monocrystalline cells, provide higher efficiency compared to polycrystalline models, which is crucial in the variable sunlight conditions typical of Poland. The central element of the system is the advanced MPPT 40A charge controller, which optimizes the use of solar energy, significantly increasing the system's efficiency. Thanks to this, the solar set is able to effectively power a variety of electrical devices, from LED TVs, through lighting, to energy-efficient refrigerators. The set also includes a set of solar cables with a diameter of 6 mm² and a length of 5 meters, equipped with connectors that guarantee simple and safe installation. Additionally, the set includes MC4 connectors enabling parallel connection of panels, which increases the flexibility of system configuration.

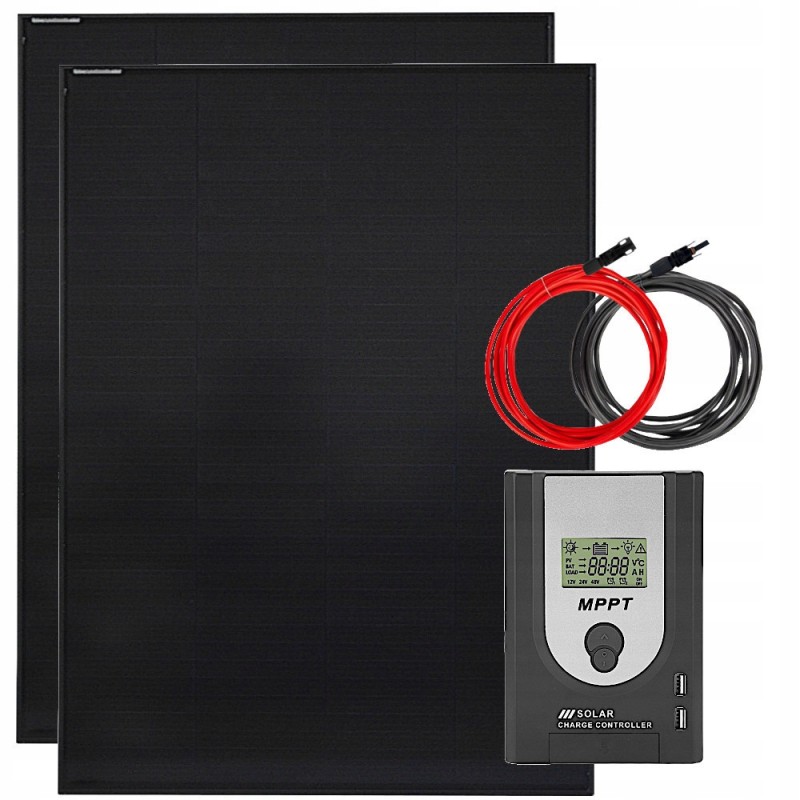

The set includes:* 2x Solarfam 200W monocrystalline solar panel

* 1x MPS 40A MPPT 12/24V charging controller

* 1x MC4 connector parallel connector 2+1 pair set

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Solarfam 200W monocrystalline solar panel - 2 pieces Cells: Monocrystalline

Peak power: 200 W

Power tolerance: ± 3%

Efficiency: 22%

Power voltage [Vmp ]: 18.15 V

Max current [Imp]: 11.02 A

No-load voltage [Voc]: 21.57 V

Short circuit current [Isc]: 11.69 A

Operating temperature: from -40 °C to +85°C

Protection: Bypass diode

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 110 cm

Width: 89 cm

Frame: 3 cm

Weight: 11.2 kg

MPS 40A MPPT 12/24V charge controller Output current: 40A

System voltage: 12V/24V automatic detection

Max. charging current: 30A

Battery voltage: 8V - 32V

Max. solar panel voltage: 100V

Max. solar panel power: 520W / 1040W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4, LiCoMn

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 21.5 x 14.5 x 7.5 cm

Weight : 1.5 kg

MC4 connector, parallel connector, 2+1 pair, complete Rated current: 30A

Rated voltage: 1000 VDC

Length: 28 cm

Type: two-way cable, type Y

Insulation material: PPO (polypropylene)

Protection level: IP67 (EN60529)

Cable connection: snap-in (connection stability)

Range of compatible cables: 2.5 / 4 / 6 mm²

Application: indoor and outdoor

Operating temperature: (-40°C) - (+ 90°C)

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
