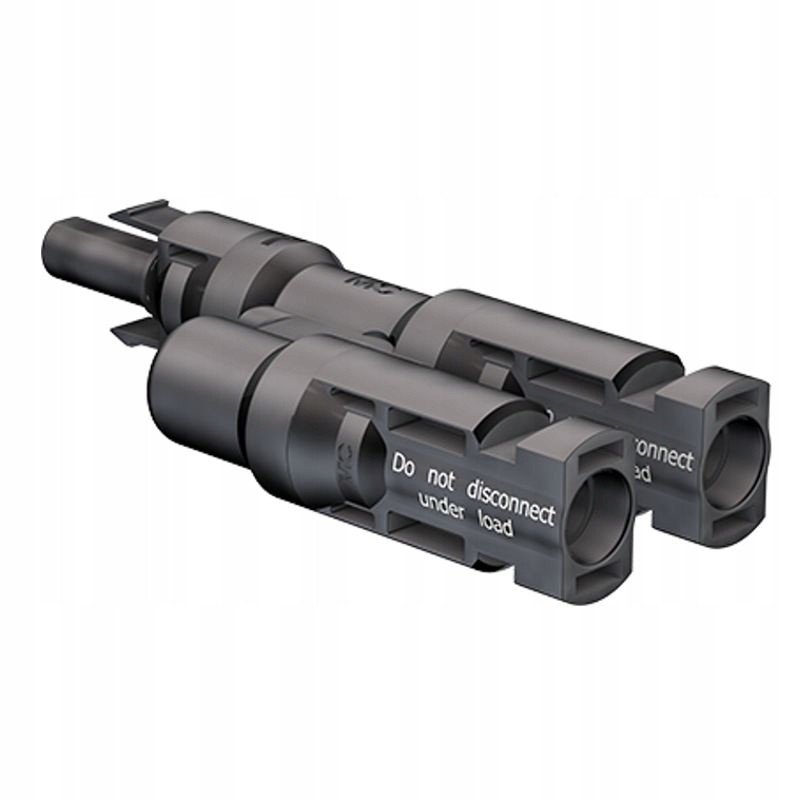

Connector for parallel connections, tee mc4 azs4

Connector for parallel connections (Tee) MC4 AZS4 ( + , + ) >,( - )Construction: 2x socket ( + ) KBT4... → plug ( - ) KST4

Technical data Type of contact - Banana connector Ø 4mm, made of tin-plated copper , inside the sockets there are elastic elements improving electrical contact - Multi-lams®

Rated voltage - 1500 V DC (UL)

Rated current 50 A

Test voltage 12 kV

Ambient temperature - 40°C… + 75° C (UL)

Max. operating temperature 105°C (STAUBLI)

Protection level connection status IP67 when connected

disconnected status IP2X

Measuring category/pollution degree CAT III / 2

Contact resistance ≤ 0.5mΩ

Protection class II

PC insulation

Certificate: UL according to UL 6703 - E343181

It is an original product of the Swiss company Stäubli (Multi-Contact), characterized by reliability and durability in all conditions. It is made of the best components available on the market. Other auctions include:

original MC4 connectors for mounting on cables and in housings

new series of MC4 EVO connectors compatible with MC4

MC4 parallel connectors for connecting panel chains

assembly tools MC4 and MC4 EVO 2 connectors

FLEX SOL EVO TX solar cables (1500 VDC, according to EN 50618)

In the case of photovoltaic connectors, the most important thing is that their parameters are stable during the 25 years of operation of the installation. The minimal and time-stable contact resistance of MC4 connectors guarantees maximum financial profit thanks to minimal energy losses, no service interruptions and failures, and fire safety. The connector contacts are made of tin-plated copper, which, unlike silver-plated copper, ensures a lower rate of electrochemical corrosion both in the connection of plugs and in the connection of tinned wires crimped on the connectors.

The design of the new MC4 EVO2 connectors allows operation at a voltage of 1500 V and transmitting significantly higher currents (for a 4 mm² cable – 45 A). Multi-Contact has obtained the following certificates for connectors: UL, TüV, IP68 1h/1m tightness, resistance to salts in the air and to ammonia gas. The connectors can be connected to wires with cross-sections of 2.5, 4, 6, 10 mm². FLEX SOL EVO TX solar cables meet the latest EN 50618 standard and, thanks to good quality copper, ensure minimal voltage drops. They are characterized by very good mechanical, chemical and environmental parameters. They are covered with a flame-retardant substance.

The product is new, original, unused, factory-packed.HOW TO PLACE AN ORDER
