Solar panel solar kit 140w controller

Solar kit 140W 12V MPPT 20A holder* Product code: 35164

The 140W solar kit, consisting of a 140W monocrystalline panel, a 20A MPPT charge controller, a set of 4mm2 solar cables with a length of 2x5m with connectors, corner brackets, brackets and a roof adapter, is a versatile solution to power 12V devices in campers, campers or boats. The monocrystalline panel ensures high efficiency in the conversion of solar energy, which is key to maximizing system performance.

The MPPT 20A charge controller uses maximum power point tracking (MPPT) technology, which increases the efficiency of energy harvesting compared to traditional PWM controllers.

Cross-section solar cables 4mm2, terminated with connectors, guarantee reliable connections, and their length allows for flexible installation of panels. Corner mounts and brackets enable stable mounting of the panel, and the roof adapter ensures safe cable routing.

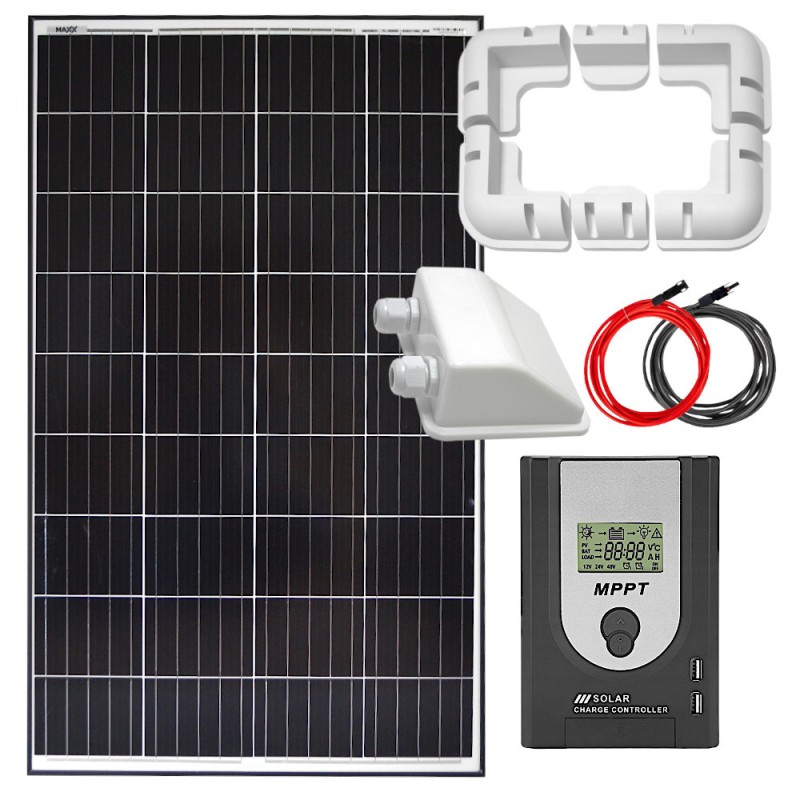

The set includes:* 1x Maxx 140W monocrystalline solar panel

* 1x MPS 20A MPPT 12/24V USB charging controller

* 1x Corner mounts for solar panels

* 1x Solar panel holder

* 1x Roof adapter for solar cables

* 1x Set of 2x5m 4mm2 solar cables with connectors

Maxx 140W monocrystalline solar panel Cells: Monocrystalline

Peak power: 140 W

Power tolerance: +3%

Max power voltage: Vmp: 19.8 V

Max current: Imp: 7.07 A

No-load voltage Voc: 23.76 V

Short circuit current: Isc: 7.78 A

Length: 113 cm

Width: 67 cm

Depth: 3.5 cm

Weight: 7.6 kg

Terminal: MC4

Frame: Anodized aluminum

Glass: Tempered glass, thickness 3.2 mm

MPS 20A MPPT 12/24V USB charging controller Output current: 20A

System voltage: 12V/24V automatic detection

Max. charging current: 20A

Battery voltage: 8V - 32V

Max. solar panel voltage: 75V

Max. solar panel power: 260W / 520W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 17.5 x 12 x 4.7 cm

Weight: 0 , 83 kg

Corner holders for solar panels Number of elements: 4 elements

Material: ABS, UV resistant

Color: White

Dimensions: 15 x 15 x 3.5 cm

Weight: 1.92 kg

Solar panel support holder Dimension: 8 x 7.5 x 4 cm

Cutout for solar panel: 25 x 30 mm

Color: White

Material: ABS

Roof adapter for solar cables Material: ABS

UV resistance: YES

Color: White

Number of pieces in the set: 1

Height: 4.50 cm

Width: 9.30 cm

Length: 11, 30 cm

Weight: 0.18 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
