Solar panel solar battery 100w flexible

Solar kit 100W 12V MPPT 2xUSB* Product code: 35597

The 100W solar kit is an advanced solution for obtaining solar energy, ideal for mobile users, such as owners of campers or boats. The key element of the set is a flexible 100W monocrystalline solar panel. Its design allows for easy adaptation to various surfaces, which makes it extremely practical for mobile applications. An additional advantage is its waterproofness, which increases durability and reliability in various weather conditions. The set includes an MPPT 10A charging regulator, which ensures optimal use of solar energy, increasing charging efficiency. This is a component necessary to ensure the stability and longevity of the system.

The set also includes two 5-meter solar cables with a diameter of 2.5mm², which enable simple and quick connection of the panel with the regulator.

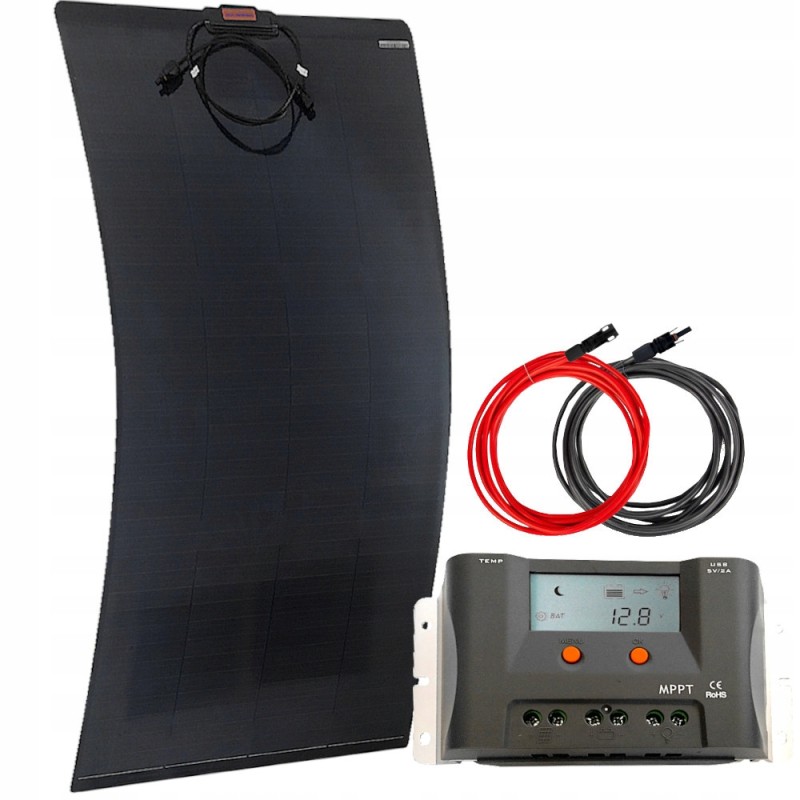

The set includes:* 1x Solarfam 100W flexible panel

* 1x Lumiax MPPT 10A charge controller

* 1x Set of 2x5m 2.5mm2 solar cables terminated with connectors

Solarfam 100W flexible panel Cells: Monocrystalline

Peak power: 100W

Power tolerance: +3%

Efficiency: 17.7%

Voltage power [Vmp]: 19.25 V

Max current [Imp]: 5.19 A

No-load voltage [Voc]: 22.75 V

Short circuit current [Isc]: 5.71 A

Temperature range: -40 °C to +65°C

Connection box: IP67

Cables: 65 cm with MC4 connectors

Height: 113 cm

Width: 52 cm

Thickness: 2 mm

Weight: 2.5 kg

Lumiax MPPT 10A charge controller System voltage: 12V

Max. charging current: 10A

MPPT charging voltage: ‹14.5/29.0V (at 25°C)

Boost voltage: 14.5/29.0V (at 25°C)

Equalization voltage: 14.8/29.6V (at 25°C) )

Float voltage: 13.7/27.45V (at 25°C)

Load disconnection at low voltage: 10.8~11.8V/21.6~23.6V SOC1~5

Reconnection voltage: 11.6~12.8V/23.2~25.6 V

Overcharge protection: 15.5/31.0V

Max. battery connector voltage: 35V

Temperature compression: -4.17mV/K per cell (Boost, Equalization) -3.33mV/K per cell (Float)

Battery type: Liquid, Gel

Max. PV connector voltage: 45V

Max. input power: 130W

Dusk/dawn detection voltage: 8.0/16.0V

MPPT tracking range: ~Voc0.9

Output current: 10A

USB interface: 5V, 2A

Operation mode: Standard, D2D, Illumination street (2 -9h)

Max. tracking efficiency: >, 99.9%

Max. charging conversion: 96.5%

Dimension: 189 x 96 x 53 mm

Weight: 0.48 kg

Own power consumption: 7mA

Ambient temperature: -20 ~ +50°C

Storage temperature: - 25 ~ +80°C

Ambient humidity: 0 ~ 100%RH

Protection level: IP32

Set of 2x5m 2.5mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 2.5 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
