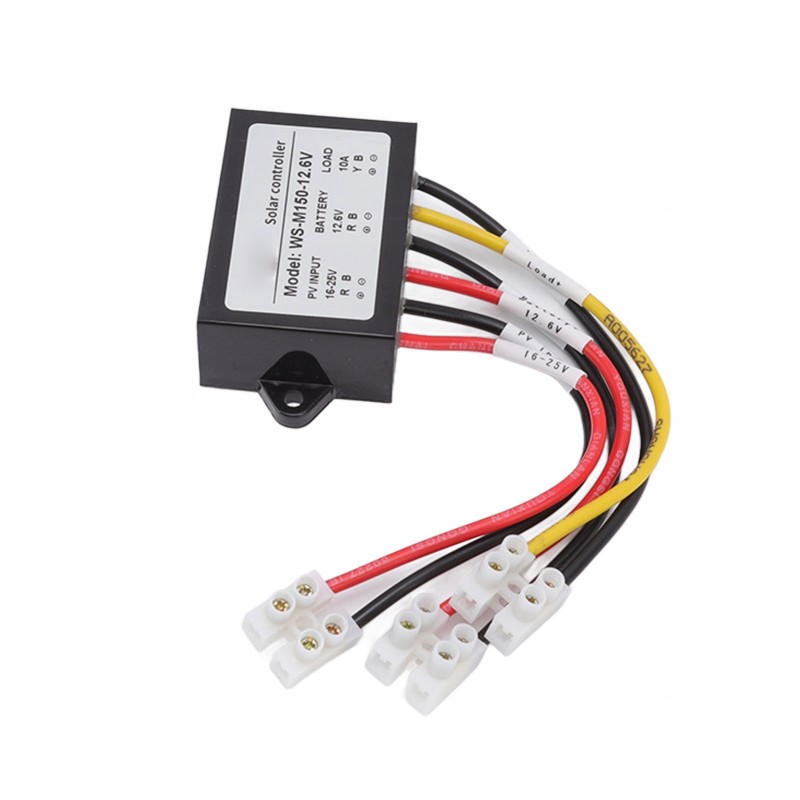

MPPT solar controller 150w 10 12v opposite

Feature:1. Battery Charging: This MPPT solar controller maximizes the solar panel's energy conversion into battery charging.

2. Synchronous Rectification: This solar charge controller adopts highly efficient synchronous rectification circuit structure.

3. Anti Backflow: This solar controller has an anti-backflow function. When the sun is shining, the controller charges the battery normally. When there is no sunlight, the controller can effectively prevent the battery from draining back.

4. Multiple Protection: This MPPT solar controller supports short circuit protection, over temperature protection, solar input undervoltage protection, battery undervoltage protection, load port short circuit protection.

5. Wide Application: This MPPT solar controller is widely used in solar street lamp controller, solar charger, solar electric bike, solar electric tricycle, solar car, home solar panels, solar monitoring etc.

Specification: Item Type: MPPT solar controller

Material: plastic

Normally open: load output 24 hours

Efficiency: ?95%

Noise: <, 55dB

Application: Solar street lamp controller, solar charger, solar electric bike, tricycle electric solar battery, solar car, home solar panels, solar monitoring and other application scenarios

Suitable for photovoltaic panel Specification: Open circuit voltage: 21 to 25B

Charger module:

PV input power: 150 W

PV input starting voltage: >.17V

PV input tracking voltage: 16 to 25V

Battery current output: 10A (maximum 12A)

No load loss: 20MA

Voltage adapted speed: 1 %

Corrected rate without load: 5%

Full load ripple: 400mV

No load ripple: 100mV

Discharge module:

Input voltage: equal to battery voltage

Load output voltage: equal to battery voltage

Output current load: 10A

Static power consumption: 12mA

Load output mode: normally open

Protection module:

Battery short circuit protection: yes

Load short circuit protection: yes

Temperature protection: Yes

Load short circuit protection: yes reverse flow: Yes

Protection level: IP67

Operating temperature: from minus 40 ? up to +65 ?

Overheat protection: when the internal temperature of the Mppt controller exceeds 100 ?, the Mppt controller will reduce the output power. If the internal temperature continues to rise to 110?, the Mppt controller will automatically turn off the output. When the internal temperature of the Mppt controller is lower than 90?, the Mppt controller will automatically resume operation.

Package List: 1 x MPPT Solar Controller
