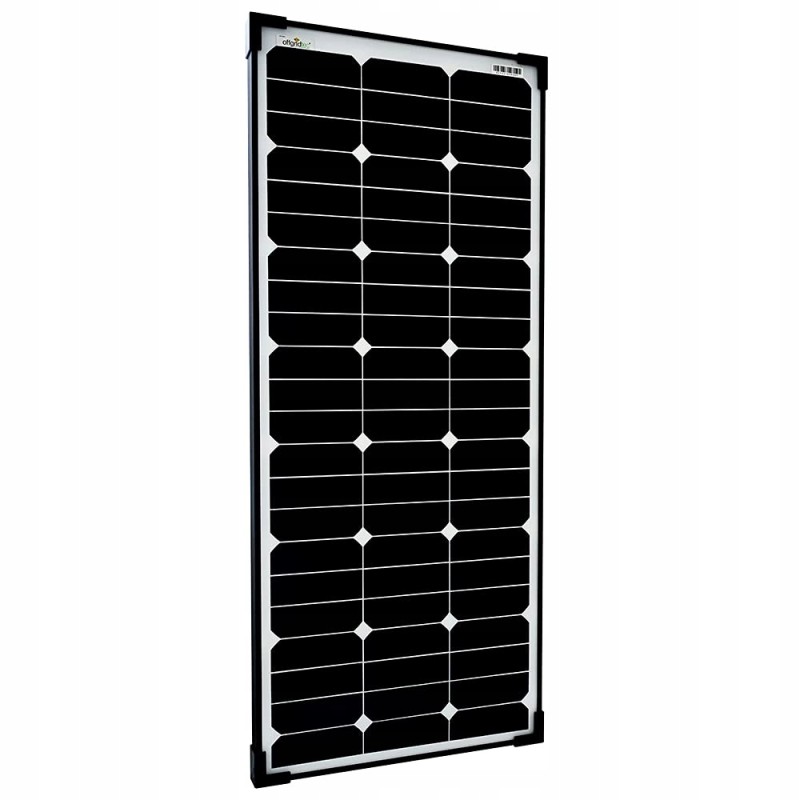

Offgridtec gmbh offgridtec spr ultra 80 80w slim

Offgridtec® SPR-Ultra-80 80W SLIM 12V High-End solar panel Manufacturer: Offgridtec GmbH Important features: efficiency over 24%, lighter and smaller than other mono modules with the same power, High-Power monocrystalline solar cells (made in USA), very good performance even in lower light, patented Back-Contact technology (only clean cells at the front are visible)

Black aluminum frame, extremely durable, elegant appearance, the module has a black aluminum frame and is equipped with specially tempered ESG solar glass. The connection cables are 90 cm long and equipped with MC4 plugs.

Technical data: Generator power: 80 Wp, system voltage: 12 V / DC, module voltage (Vmp): 18.2 V, max. current (Imp): 4.4 A, open-circuit voltage (Voc): 21.42 V, short-circuit current (Isc): 4.66 A, max. System voltage: 600 V / DC

Cell type: monocrystalline SPR cells, ambient temperature: -40 °C - +85°C, tolerance: ±3%, dimensions (L x W x H): 1010 x 420 x 35 mm, weight: 4.9 kg

Ideal for motorhomes, boats/yachts and small, especially narrow surfaces

components included: SPR-Ultra-80 80W SLIM 12V High-End solar panel

item weight: 4.84 kilograms

Model name: 3-01-013095

bullet point: Important properties: efficiency over 24%, lighter and smaller than other mono modules with the same power, High-Power monocrystalline solar cells (made in the USA), very good efficiency even in lower light, patented Back-Contact technology (only clean cells on the front are visible ), Black aluminum frame, extremely durable, elegant appearance, the module has a black aluminum frame and is equipped with specially tempered ESG solar glass. The connection cables are 90 cm long and equipped with MC4 plugs., Technical data: Generator power: 80 Wp, system voltage: 12 V / DC, module voltage (Vmp): 18.2 V, max. current (Imp): 4 .4 A, no-load voltage (Voc): 21.42 V, short-circuit current (Isc): 4.66 A, max. System voltage: 600 V / DC, Cell type: monocrystalline SPR cells, ambient temperature: -40°C - +85°C, tolerance: ±3%, dimensions (L x W x H): 1010 x 420 x 35 mm, weight: 4.9 kg, Perfect for motorhomes, boats/yachts and small, primarily all narrow surfaces

number of pieces in the package: 1

connector type: MC4

brand: Offgridtec

efficiency: High efficiency

packaging level: unit

Number of items: 1

size: 80 Watt Slim

number parts: 013095

color: dark

item type name: solar panels

item packaging weight: 5.5 kilograms

manufacturer: Offgridtec GmbH

externally assigned product ID: 4250983260465

recommended viewing nodes: 27006662031, 20852620031

number model: 013095

item name: Offgridtec® SPR-Ultra-80 80W SLIM 12V High-End solar panel

product page launch date: 2021-07-16T14:26:33.749Z

material: aluminum
