Solar battery 200w monocrystalline 12v mt50

Solar kit 200W 12V MPPT 20A* Product code: 36216

The 200W solar kit is a modern and efficient solution for generating solar energy. The set includes a 200W solar panel made of the highest quality monocrystalline cells, which ensures higher energy efficiency, especially beneficial in Polish climatic conditions with variable amounts of sunlight.

The key element of the set is the MPPT charging regulator, which maximizes the efficiency of solar energy conversion into electric. Additionally, the set is equipped with an MT50 Control Panel, facilitating monitoring and management of the system.

The set also includes 2x5 meters of solar cables with a cross-section of 4mm2, terminated with connectors, which ensures easy installation and solid connections.

The recommended battery for this set is a model with a capacity of 80 to 120Ah, which enables effective storage of the produced energy. This set is ideal for both stationary and mobile applications, for example in campers or boats.

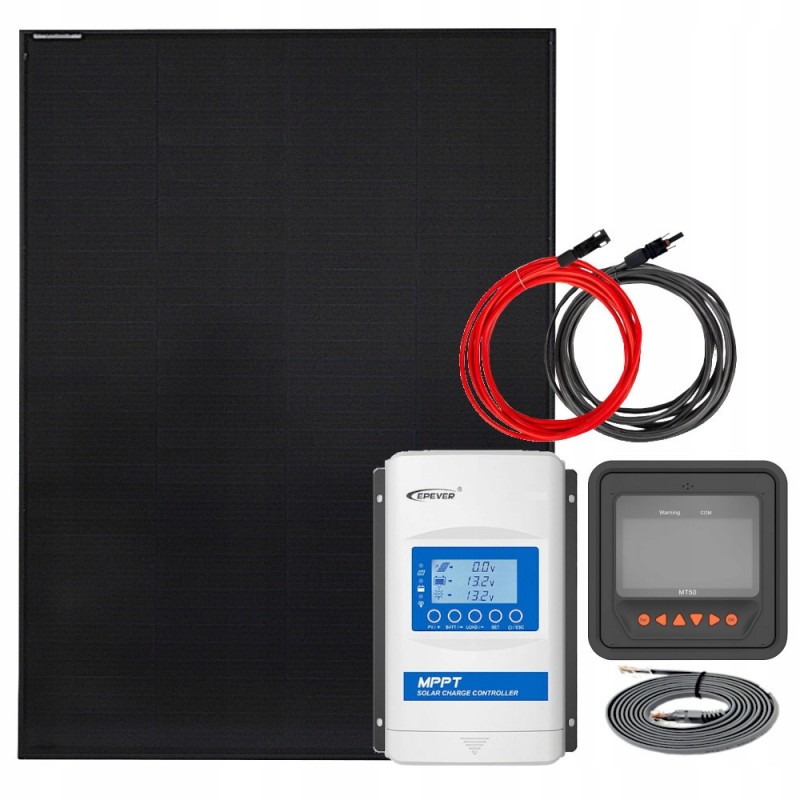

The set includes: * 1x Solarfam 200W monocrystalline solar panel

* 1x MPPT XTRA2210N-XDS2 20A charging controller

* 1x MT50 Control Panel - meter with LCD display

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Solarfam 200W monocrystalline solar panel Cells: Monocrystalline

Peak power: 200 W

Power tolerance: ± 3%

Efficiency: 22%

Power voltage [Vmp]: 18.15 V

Max current [Imp]: 11.02 A

No-load voltage [Voc]: 21.57 V

Short circuit current [Isc]: 11.69 A

Operating temperature: from -40°C up to +85°C

Protection: Bypass diode

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 110 cm

Width: 89 cm

Frame: 3 cm

Weight: 11, 2 kg

MPPT charge controller XTRA2210N-XDS2 20A Max. PV circuit voltage:: 100V / 92V (at temperature 25°C)

Maximum input power:: 260W/12V - 520W/24V

Nominal system voltage:: 12/24VDC

Battery input voltage range:: 8~32V

Rated discharge current:: 20A

Rated charging current:: 20A

No-load efficiency: 98.3%

Load efficiency: 96.4%

Maximum input voltage: 100V

Operating temperature: -25° C ~ +50°C

Power consumption:: ›12mA

Compatibility with batteries:: Liquid AGM, Gel, Lithium, LiFePO4

Tightness class: IP33

Dimensions (length x width x height):: : 217 x 158 x 56.5mm

Weight [kg]:: 0.96

MT50 Control Panel - meter with LCD display Consumption with backlight and sound on: ‹65 mA

Consumption with backlight on: ‹23 mA

Consumption with backlight off: ‹15 mA

Ambient temperature: -20°C / +70 °C

Panel dimensions: 98 x 98 mm

Frame dimensions: 114 x 114 mm

Connection socket: RJ45

Cable length: Standard - 2 m

Weight: ~ 0.23 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector

Product Images
