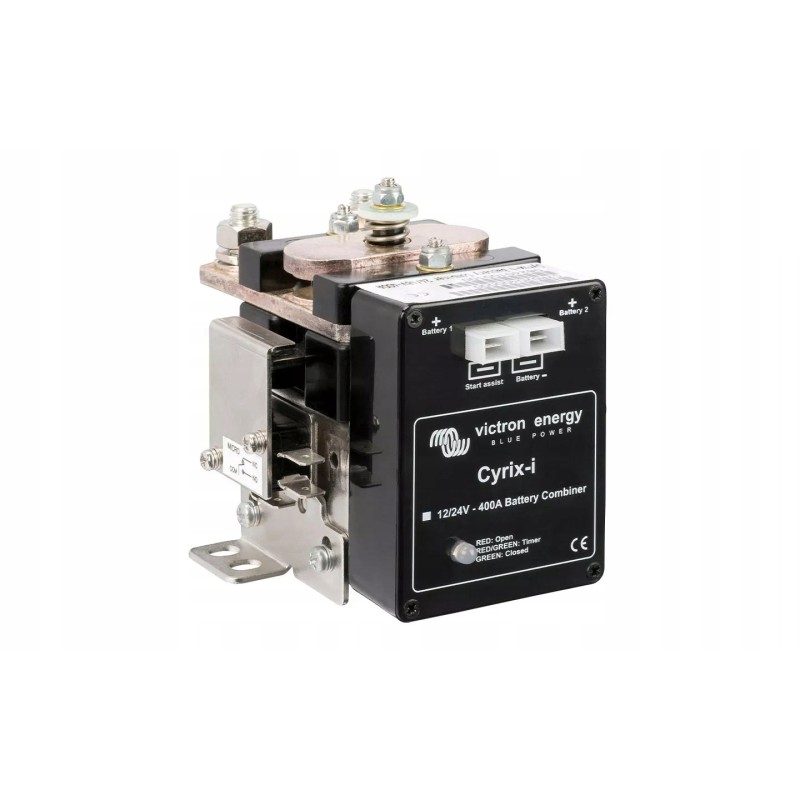

Victron energy cyrix i 12 24v 400a battery switch

Victron Energy Cyrix-i 12/24V 400A Battery SwitchThe Cyrix Battery Switch is a microprocessor-controlled heavy-duty relay that automatically parallels batteries when one reaches a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage drops below the maintenance voltage level (meaning that one or more batteries are discharging). Cyrix battery switches are an excellent alternative to diode disconnectors. Their main feature is the practical lack of voltage losses, which means that the output voltage of alternators or chargers does not need to be increased.

Technical data:

Continuous current: 400A

Peak current: 2000A in 1s

Input voltage: 8 - 36V DC

Disconnection voltage: 16V / 32V

Current consumption in open state: 4mA

Micro switch for remote monitoring: Yes

Status indicator: two-color LED

Weight: 0.9kg

Dimensions: 78 x 102 x 110mm
