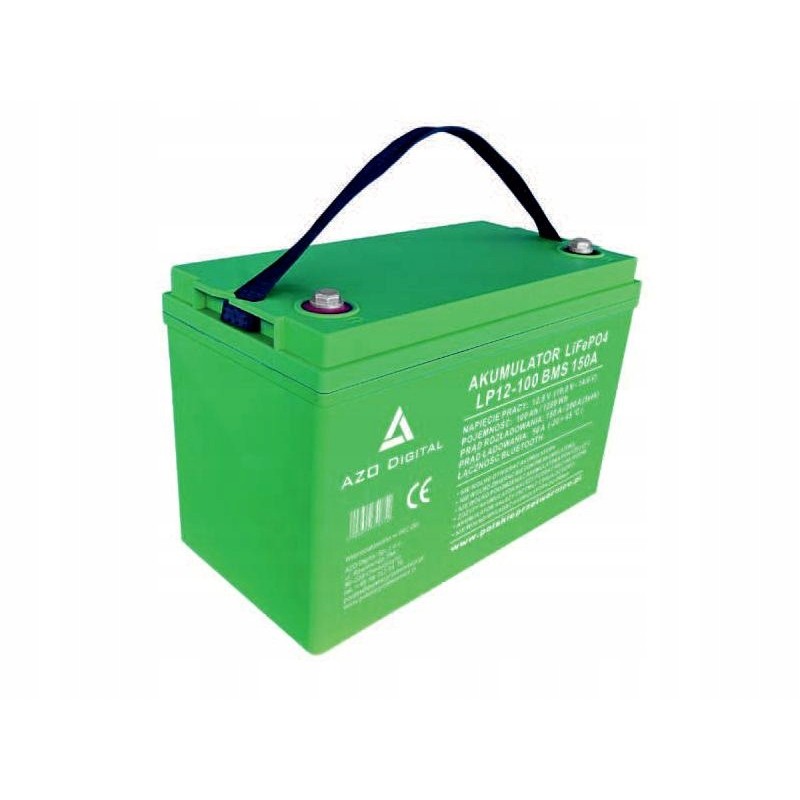

Lifepo4 battery 12v 100ah 150a bluetooth heating mat winter

LiFePO4 battery 12V 100Ah 150A 1280Wh + BT + Heating MatLithium batteries from the LP Pro series were designed for solutions that require high power and long-term reliability. They provide excellent operating parameters and high efficiency. They are an ideal solution for installations collecting all types of renewable energy, both solar and wind. They are used in industry and transport. They are also suitable for non-commercial and recreational applications.

Thanks to the built-in heating mat, they can operate at negative temperatures.

The factory-installed Bluetooth module allows you to constantly monitor their operating parameters, and the efficient BMS allows you to power devices with a power of 1.8 kW.

The system The BMS ensures monitoring of cell voltage and temperature both during charging and discharging of cells. If critical values are exceeded, the system cuts off the power, thus ensuring the safety of the battery and the working environment.

Charging at negative temperatures is carried out thanks to the built-in heating mat.

The actual charging process begins when the cell temperature reaches a positive value and is within the range between 0°C and 45°C

Typical use of LiFePO4 batteries

Electric vehicles: campers, scooters, quads

Electric boats

Gardening equipment

Photovoltaic installations

UPS emergency power supply

Printers, cash registers, alarms

BATTERY TECHNICAL PARAMETERS

Cell type: LiFePO4

Nominal voltage: 12.8 VDC

Nominal capacity: 100 Ah

Nominal capacity: 1280 Wh

Operating voltage: 10.8 - 14.6 VDC

Charging voltage: 14 .6VDC

Maximum charging voltage: 14.6VDC

Recommended discharge voltage: 11.2VDC

Critical discharge voltage: 10.8VDC

Recommended charging current: 25A

Maximum charging current: 100A

Maximum continuous discharge current: 150A

Maximum discharge current: 180A

Internal resistance: <, 25m Ohm

Efficiency: >, 99.5%

Self-discharge (month): <, 3%

Built-in BMS: YES

Bluetooth communication: YES

Lifespan (0.2C, 25°C 100% DOD): 4000 cycles

Lifespan (0.2C, 25°C 80% DOD): 6500 cycles

Battery series connection: Yes, maximum 4 pieces

Heating function: YES

Discharge temperature: -20 Celsius C ÷ 60 St. C

Charging temperature: -20 degrees Celsius C ÷ 45 St. C

Storage temperature: -10 degrees Celsius C ÷ 30 St. C

Dimensions: 330 x 171 x 215 mm

Weight: 10.2 kg

Connector: M8

Housing material: ABS

BMS TECHNICAL PARAMETERS

I overcharge protection: 160A (delay 1000 ms)

Overcharge protection II : 180A (delay 500 ms)

I discharge protection: 180A (delay 5 sec.)

II discharge protection: 250A (delay 3 sec.)

Overvoltage protection: 15.0 VDC (delay 500 ms)

Undervoltage protection: 8.8 VDC (delay 500 ms)

Thermal protection on: above 95 degrees Celsius

Thermal protection off: below 85 degrees Celsius

Battery test on YOUTUBE:

https://youtu. be/h_ZG_ADZzu0
