Solar panel solar kit 180w regulator 20a

Solar kit 180W 12V 20A + Holders* Product code: 36041

The solar kit with a power of 180W, equipped with a monocrystalline solar panel and an MPPT charging regulator, is an advanced technological solution that ensures efficient power supply in places isolated from the electrical network. It is ideal for users of motorhomes, boats or camping facilities who value independence and an ecological source of energy. The central element of the set is a 180W solar panel made of monocrystalline cells, which guarantee higher energy efficiency compared to polycrystalline panels. Additionally, the included MPPT charge controller optimizes the use of solar energy, maximizing its conversion into useful electrical current. The set also includes a complete installation kit, including solar cables with connectors, corner brackets and brackets, and a roof adapter, which allows for easy and safe installation system.

Designed to work with batteries with a capacity of 80 to 120Ah.

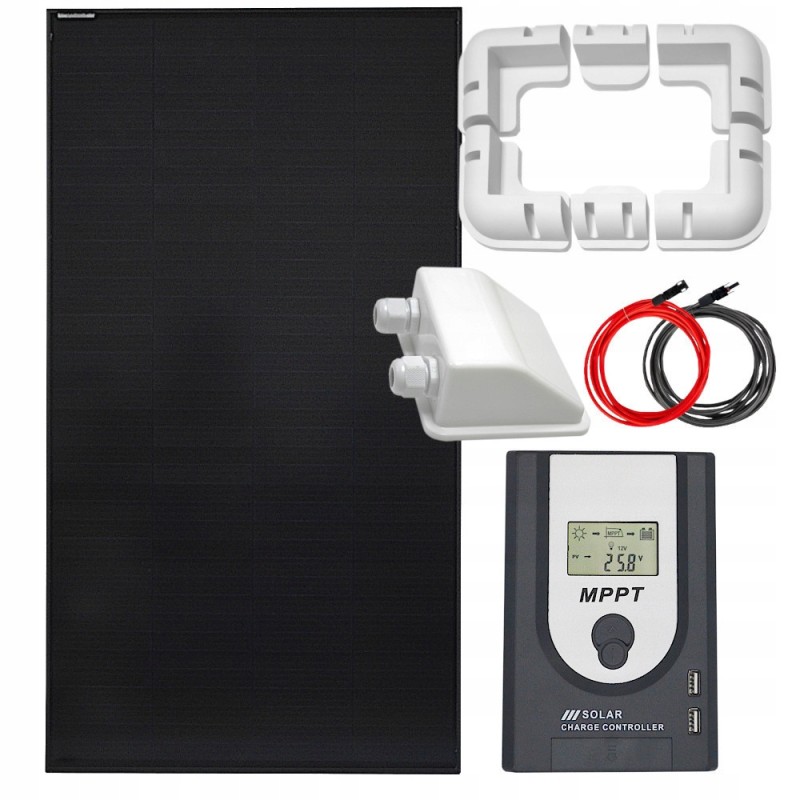

The set includes:* 1x Solarfam 180W monocrystalline solar panel

* 1x MPS 20A MPPT 12/24V USB charging controller

* 1x Corner holders for solar panels

* 1x Holder solar panel support

* 1x Roof adapter for solar cables

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Solarfam 180W monocrystalline solar panel Cells: Monocrystalline

Peak power: 180 W

Power tolerance: ± 3%

Efficiency: 22 %

Max power voltage [Vmp]: 21.55 V

Max current [Imp]: 8.36 A

No-load voltage [Voc]: 25.62 V

Short circuit current [Isc]: 8.86 A

Operating temperature: from -40°C to +85°C

Protection: Bypass diode

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 123 cm

Width: 70.5 cm

Frame: 3 cm

Weight: 8 kg

MPS 20A MPPT 12/24V USB charging controller Output current: 20A

System voltage: 12V/24V automatic detection

Max. charging current: 20A

Battery voltage: 8V - 32V

Max. solar panel voltage: 75V

Max. solar panel power: 260W / 520W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 17.5 x 12 x 4.7 cm

Weight: 0 , 83 kg

Corner holders for solar panels Number of elements: 4 elements

Material: ABS, UV resistant

Color: White

Dimensions: 15 x 15 x 3.5 cm

Weight: 1.92 kg

Solar panel support holder Dimension: 8 x 7.5 x 4 cm

Cutout for solar panel: 25 x 30 mm

Color: White

Material: ABS

Roof adapter for solar cables Material: ABS

UV resistance: YES

Color: White

Number of pieces in the set: 1

Height: 4.50 cm

Width: 9.30 cm

Length: 11, 30 cm

Weight: 0.18 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
