Victron orion tr smart 12 12 30a dc charger dc

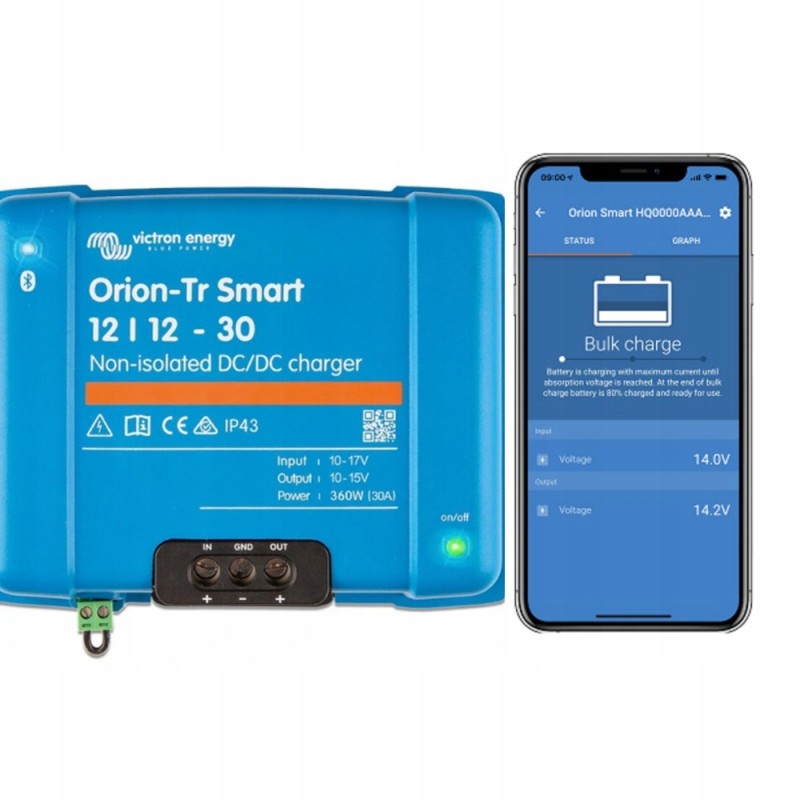

* Orion-Tr Smart 12/12 30A (360W) NON-isolated DC-DC charger Victron Energy The Orion-Tr Smart DC-DC charger is a professional, adaptive, 3-stage DC to DC charger with built-in Bluetooth.

-️ Intended for use in dual-battery installations in vehicles or boats in which an alternator and starting battery are used to charge the mains battery. The device can be monitored and programmed via Bluetooth, and can be remotely controlled using a remote switch.

-️ The Orion-Tr Smart charger can be used in 12V or 24V installations and is suitable for both lead-acid and lithium batteries. Models with a power of up to 400 W are available, and an unlimited number of devices can be connected in parallel to increase the output power.

It can operate at temperatures of up to 55°C, and maintains full nominal power at temperatures up to 40°C.

Power [W]: 360

Continuous output power at 25°C: 430 W

Maximum efficiency [%] 87

DC input voltage range [V]: 10 - 17

Minimum start voltage [V]: 7.5V

Approximate cut-off voltage [V]: 7V

Short-circuit current [A]: 60A

Continuous output current [A]: 30A

Weight [kg]: 1.8

DC output voltage [V]: 12.2V

DC output voltage range [V]: 10 - 15V

Communication type: Bluetooth

Dimensions [mm]: 186 x 130 x 80

* Bluetooth Smart

enabled You can use any Bluetooth-enabled smartphone, tablet or other device to monitor, change settings and update your charger when new software features become available.

* Fully programmable

Battery charging algorithm (configurable) or constant power output.

Smart alternator compatibility: engine detection mechanism.

Adaptive 3-stage charging algorithm: bulk - absorption - float

In the case of lead-acid batteries, it is important that during shallow deep discharges the absorption time is short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically extended to ensure that the battery is fully charged again.

For lithium batteries, the absorption time is fixed, defaulting to 2 hours.

Alternatively, a constant output voltage can be selected.

* Remote turn on/off

A remote on/off switch or relay contact can be connected to the bipolar connector. Alternatively, the H terminal (right) of the bipolar connector can be switched to battery positive, or the L (left) terminal of the bipolar connector can be switched to battery negative (or vehicle chassis, for example).

* All models are short circuit proof and can be paralleled to increase the output current An unlimited number of units can be connected in parallel.

* Protected against high temperature

The output current will decrease at high ambient temperature.

* IP43 protection level

When installed with screw terminals facing down.

* Screw-on terminals Installation does not require special tools.

Input fuse (non-replaceable)
