Solar panel solar kit 130w controller

Solar kit 130W 12V MPPT + Brackets * Product code: 33120

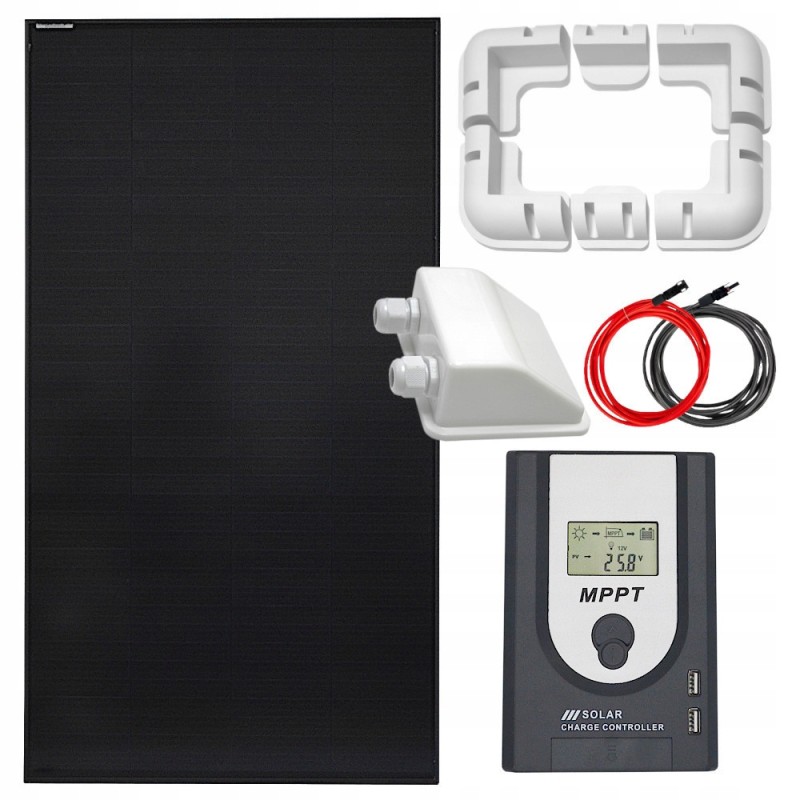

Solar kit 130W 12V MPPT, including a 130W monocrystalline panel, a 20A MPPT charge controller, as well as a set of 4mm2 solar cables with a length of 2x5m with connectors, corner brackets, brackets and a roof adapter, are comprehensive solution for the use of solar energy. This system is an excellent choice for campers, campers and boats, enabling the effective use of 12V devices such as LED TVs, LED lighting, chargers, and economical compressor refrigerators with a thermostat.

The MPPT 20A charge controller effectively increases the efficiency of the photovoltaic system by up to 25% in compared to PWM controllers. This allows for more efficient use of solar energy, which is crucial for optimizing the system's operation. Corner brackets, brackets and a roof adapter ensure safe and stable installation, which is important for the reliability and durability of the system. The recommended range of battery capacity to work with this set is 70-100Ah, which allows for adequate energy storage.

The set includes:* 1x Solarfam 130W monocrystalline solar panel

* 1x MPS 20A MPPT 12/24V USB charging controller

* 1x Corner holders for panels solar panels

* 1x Solar panel holder

* 1x Roof adapter for solar cables

* 1x Set of 2x5m 4mm2 solar cables with connectors

Solarfam 130W monocrystalline solar panel Cells: Monocrystalline

Peak power: 130 W

Power tolerance: ± 3 %

Efficiency: 21.4 %

Max power voltage: Vmp: 20.42 V

Max current Imp: 6.37 A

No-load voltage Voc: 24.27 V

Short circuit current Isc: 6.75 A

Operating temperature: from -40°C to +85°C

Cable length: 60 cm (4mm)

Protection: Bypass diode

Frame: Anodized aluminum

Glass: Tempered glass

Height: 116 cm

Width: 54 cm

Frame: 3 cm

Weight: 8 kg

MPS 20A MPPT 12/24V USB charging controller Output current: 20A

System voltage: 12V/24V automatic detection

Max. charging current: 20A

Battery voltage: 8V - 32V

Max. solar panel voltage: 75V

Max. solar panel power: 260W / 520W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 17.5 x 12 x 4.7 cm

Weight: 0 , 83 kg

Corner holders for solar panels Number of elements: 4 elements

Material: ABS, UV resistant

Color: White

Dimensions: 15 x 15 x 3.5 cm

Weight: 1.92 kg

Solar panel support holder Dimension: 8 x 7.5 x 4 cm

Cutout for solar panel: 25 x 30 mm

Color: White

Material: ABS

Roof adapter for solar cables Material: ABS

UV resistance: YES

Color: White

Number of pieces in the set: 1

Height: 4.50 cm

Width: 9.30 cm

Length: 11, 30 cm

Weight: 0.18 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
