Mini solar power plant 140w set 230v 1000wh

Solar Set 140W Mini Power Plant 230V 1000VA 1000Wh

The set includes all the necessary elements to run a mini solar power plant.

The system has a large expansion potential to increase the power of the panels, you can also enlarge the battery bank.

The set can also be used as a high-quality UPS that generates electricity full sine wave (full sine), the attached panels allow you to charge the battery while the UPS is operating.

The set is perfect for places where there is no access to the electricity network.

The set can be used in summer houses, allotment gardens, caravans and yachts.

Application : power supply for refrigerators, pumps, RTV equipment, computers, power tools, etc.

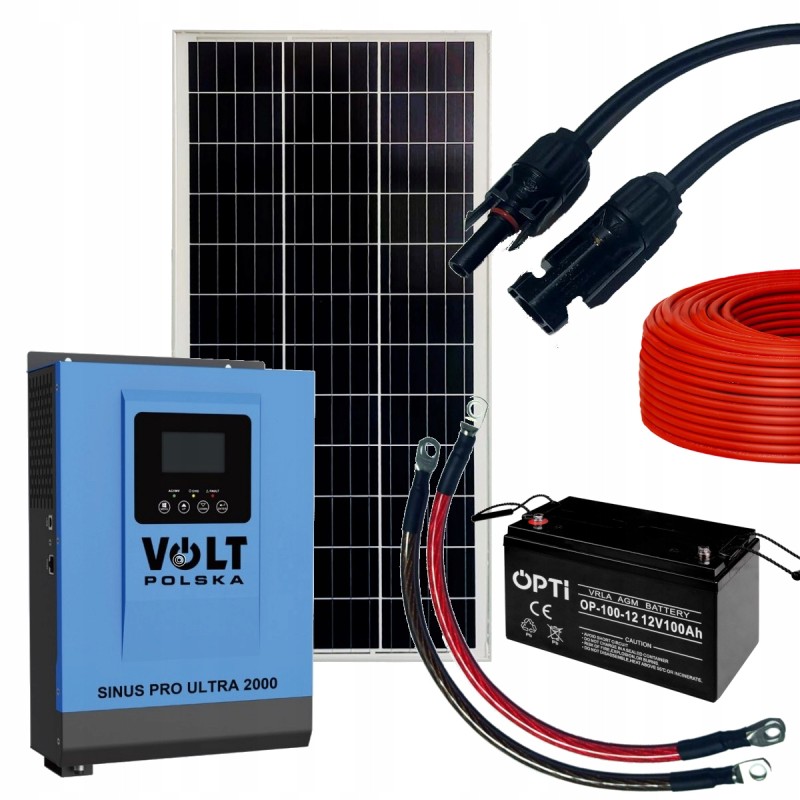

The solar set includes:

1x 140W Polycrystalline solar battery

1x AGM battery with a capacity of 100Ah 12V

1x Solar inverter Volt SINUS PRO ULTRA 2000

1x 5 m connection cables with MC connectors -4

Panel specifications:

The 140W solar panel is a high reliability product designed for long-term outdoor use in any environment. The 140W module is an excellent choice when working in low light conditions. The panel is resistant to weather conditions. The 140W Maxx module is designed to power batteries with a capacity of 70-120Ah. When purchasing a solar battery, you receive a MC4 serial connector for free.

Maximum power Pmax (W): 140W

Tolerance (%): ± 3%

Open circuit voltage Voc (V): 22.03

Voltage at maximum power Vmp (V):18.36

Current at maximum power Imp (A):7.63

Short-circuit current Isc (A):8.24

Module efficiency (%):19.4

Solar cell efficiency (%) :18.8

Fuse nominal current (A):10

Protection class:IP65

Maximum panel system voltage (V):DC1000

Operating temperature range: -40°C-85°C

Dimension: 1330x540x30mm

Panel frame size: 20mm

Weight: 8.5kg

The SINUS PRO ULTRA 2000 emergency power supply is used to power electrical devices requiring 230V alternating voltage from 12V direct voltage batteries. The built-in solar regulator allows you to additionally use solar energy to charge the batteries and power the connected load.

Key features:

Mains charger for charging the connected battery

Pure SINUS converter based on a toroidal transformer

Possibility to connect solar panels

The converter can operate in UPS mode, which ensures virtually uninterrupted and trouble-free operation of e.g. blowers, feeders, pumps, central heating installations, automation, etc.

LCD display with the most important parameters

Solid and compact casing

Shipment in 3 packages.

Technical data:

Total power (instantaneous):2000VA

Constant power:1000W

Battery voltage:12VDC

Input voltage range (photovoltaic panel):15VDC-75VDC

Max charging current:60A MPPT

Input voltage range (mains supply): 170VAC-280VAC

Output voltage range (mains supply): 220VAC-240VAC

Charging current from the mains: 10/20A

Output voltage range (converter): 230V+-3%

Operating temperature: 0-40°C

Dimensions: 224x337x97mm

Weight: 5kg
