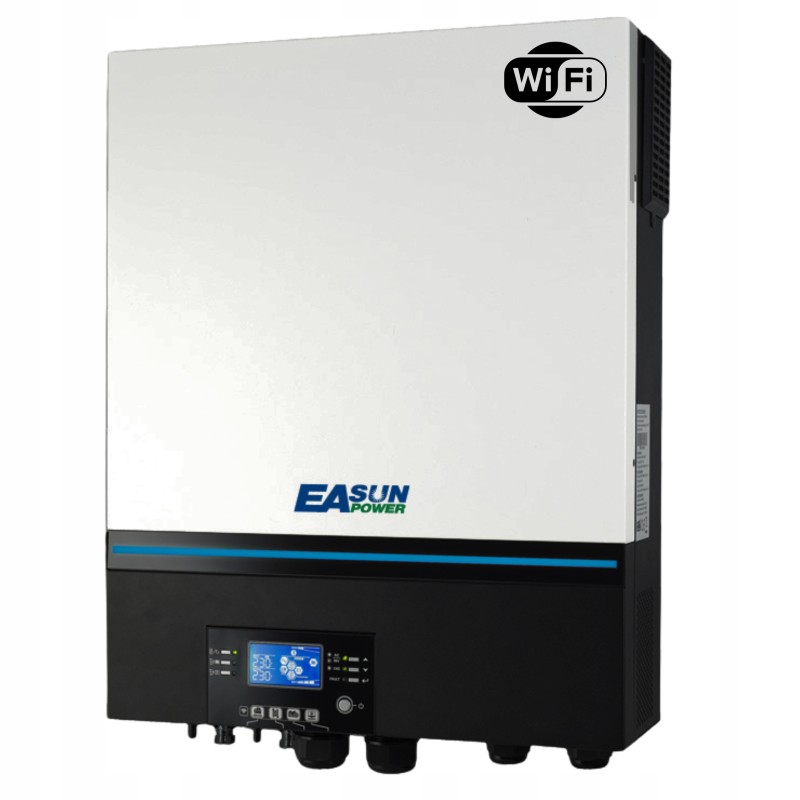

Solar inverter 8kw 8000w off grid mppt wifi 120a 48v

Multifunctional solar inverter EASUN POWER 8000WMultifunctional solar inverter EASUN POWER 8000W EASUN solar inverters are designed to build independent 230V off-grid power systems based on energy obtained from PV panels, the power grid and a battery. Thanks to their modular design and flexible configuration, EASUN inverters can operate in UPS mode with battery charging from PV panels and/or the power grid, they can also work in buffer systems powered only by PV panels and/or supported by power from the grid.

Specification

Built-in Wi-Fi for mobile monitoring (Android/IOS apps available)

Supports USB On-the-Go function

BMS lithium battery support (Pylontech, Weco, Soltaro)

Replaceable fan design for easy maintenance

Battery-free operation (single mode only devices)

Configurable AC/PV output clock and priority

High power charging current selection selectable input voltage range for home and personal devices

Compatible with mains power or generator input

Built-in dust protection kit

Optional DC output on DC fan, LED bulb, router and so on

Parallel operation up to 6 units, built-in parallel kit

Detachable LCD remote control display

High PV input design, max. 500V (Voc) input

Input

Nominal voltage: 230VAC

Allowable voltage range: 170-280VAC (for personal computer),90-280VAC (for home appliances)

Frequency: 50/60Hz (auto detection)

Output

Nominal voltage: 230VAC ± 5%

Impact power: 16000VA

Efficiency (peak): 90% ~ 93%

Waveform: Pure sine wave

Transfer time: 15ms (for personal computer), 20ms (for home devices)

No power consumption: <.70W

DC voltage (optional): 12VDC ± 5%, 100W

Battery

Battery voltage: 48VDC

Floating charging voltage: 54VDC

Overcharge protection: 66VDC

Solar charger type: MPPT

Max. PV array power: 8000W(4000Wx2)

Max. PV Open Circuit Voltage: 500VDC

MPPT Range @ Operating Voltage: 90VDC ~ 230VDC

Maximum Solar Charging: 120A

Maximum AC Charging Current: 120A

Maximum Charging Current: 120A

Dimensions, L x W x H ( mm): 147.4x432.5x553.6

Net weight(kg): 18.4

Communication interface: USB/RS232/RS485/Wifi

Operating temperature: -10°C to 50°C

Storage temperature: -15 °C ~ 60°C

Humidity: 5% to 95% relative humidity (non-condensing)

MPPTThe characteristic name MPPT comes from the English words translated as Maximum Power Point (MPP for short), which is used in the current-voltage description of panels solar. MPP is the point at which the solar panel obtains the highest voltage in given atmospheric conditions. The maximum power point will have a different value and location on a cloudy and sunny day. In turn, the name MPPT refers to charging regulators that are equipped with a special electronic algorithm. It is this that allows continuous monitoring of the Maximum Power Point of the electrical voltage in photovoltaic panels
