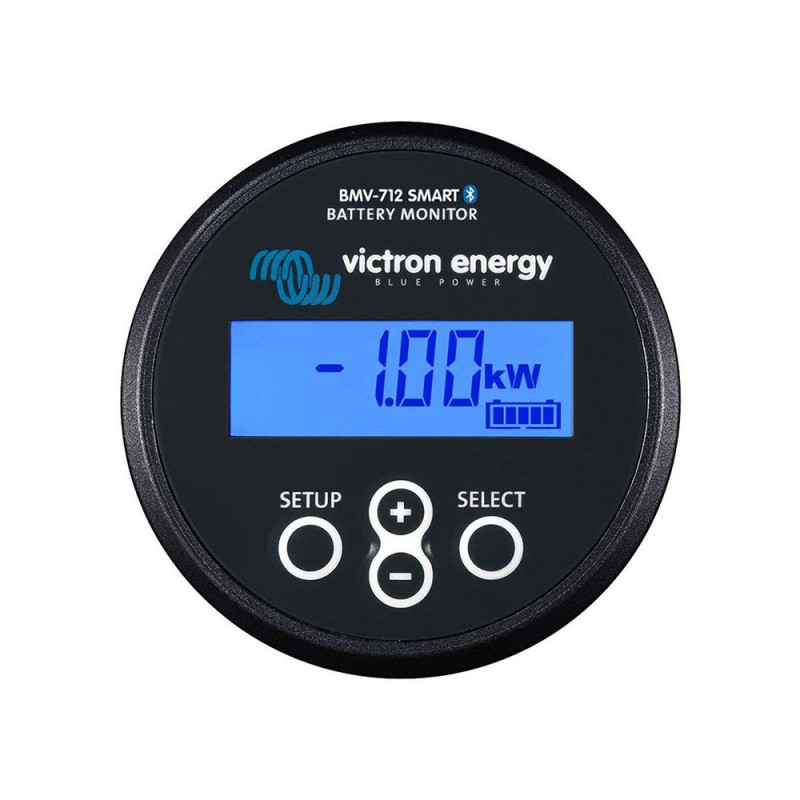

Victron battery charge monitor

Victron Energy battery charge control monitor (Bluetooth) - black * Product code: ST-2831

Victron Energy charge status monitor, which is an advanced microprocessor system for controlling the amount of battery energy connected to an extensive system of voltage, charging and discharge current measurements. The Puekert formula, an advanced algorithmic function, determines the exact state of battery charge. Depending on the current need, the display shows information on battery voltage, current, ampere-hours consumed and the time remaining until full discharge. An additional advantage is easy connection with the components provided in the set. The BMV700 set includes: control panel, shunt, and connection kit. The charge indicator is not everything: The remaining capacity of the battery depends on the ampere-hours used, discharge current, temperature and age of the battery. The ALGORIT complex of HMS software is needed to take all these variables into account. In addition to basic display options such as voltage, current and amp-hour consumption, the BMV-700 series also displays state of charge and power consumption in watts. The BMV-702 has an additional input that can be programmed to measure voltage (battery seconds), temperature or midpoint voltage. Management by phone and Victron Connect application: The 712 model is additionally equipped with a BlueTooth interface. After installing the Voctron Connect application on your phone, which can be downloaded from the Play Store or ApStore, you can enjoy very detailed information about the operation of your photovoltaic system. VE.Direct connector: Thanks to the built-in VE.Direct connector, it is possible to connect the device to Color Control GX and present the work results on a color display.

Technical Data **** Supply voltage range: 6.5 - 70 VDC

Current consumption, rear light off : ‹1 mA

Input voltage range, auxiliary battery: 6.5 - 70 VDC

Battery capacity (Ah): 1 - 9999 Ah

Operating temperature range: -40 +50 °C

Measures second battery voltage or temperature or center point: Yes

Temperature measurement range: -20 +50°C

VE. Direct communication port: Yes

Bistable relay: 60V / 1A normally open (function can be reversed)

Current: ± 0.01 A

Voltage: ± 0.01V

Ampere-hours: ± 0.1 Ah

Charge status (0 - 100 %): ± 0.1%

Time to go: ± 1 min

Temperature (0 - 50°C): ± 1°C

Current measurement accuracy: ± 0.4%

Voltage measurement accuracy: ± 0.3%

Installation: Flush mounting

Front: 63mm in diameter

Front frame: 69 x 69 mm

Shunt connecting screws: M10

Body diameter and depth: 52mm and 31mm

Protection category: IP55 (not intended for use external)

Safety: EN 60335-1

Emission / Immunity: EN 55014-1 / EN 55014-2

Automotive: ECE R10-4 / EN 50498

Shunt (included): 500A / 50mV

Cables (included): 10 meters 6 UTP core with RJ12 connectors, and a fused cable for connection +

Temperature sensor: Optional (ASS000100000)
