Solar hybrid kit 48v 5kw 230v 5000w

Off Grid solar kit 48V 5KW 230V 5000W* Product code: 36221

The solar system consisting of 5KW solar panels with a 230V 5000W hybrid inverter is an ideal power supply system used in summer houses.

The hybrid inverter allows you to store the energy produced by solar panels in batteries and using it to power devices. When the batteries run out, it automatically switches to mains power. A hybrid inverter is the perfect solution to significantly save electricity bills. It is possible to connect batteries to use the electricity collected during the day.

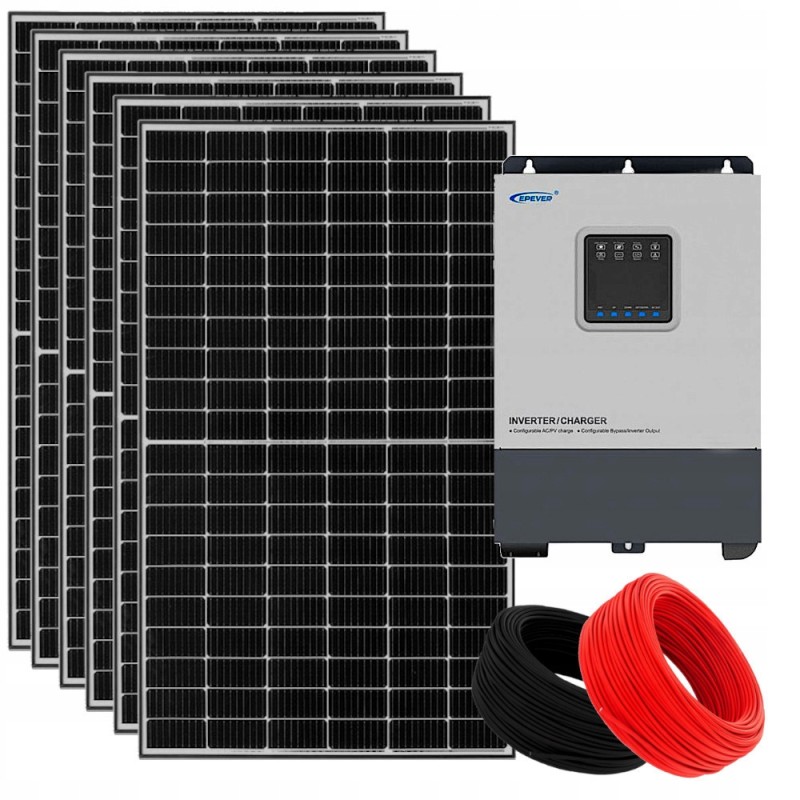

The set includes:* 10x JA Solar 385W monocrystalline Silver solar panel

* 1x Off Grid Epever MPPT hybrid inverter 48V 230V 5000W

* 1x Set of 2x15m solar cables 4mm2

* 1x Serial connectors MC4

JA Solar 385W monocrystalline Silver solar panel - 10 pieces Cells: Monocrystalline

Maximum power Pmax: 385W

No-load voltage Voc: 41.78 V

Short-circuit current Isc: 11.53 A

Maximum power voltage Vmp: 35 .04 V

Maximum power intensity Imp: 10.99 A

Power tolerance: 0-+5%

Efficiency: 20.7%

Temperature current indicator Isc: +0.044%/◦C

Temperature voltage indicator Voc: -0.272 %/◦C

Temperature power index Pmax: -0.350 %/◦C

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Dimensions: 176.9 x 105.2 x 3, 5 cm

Weight: 20.5 kg

Off Grid Epever MPPT Hybrid Inverter 48V 230V 5000W Nominal battery voltage: 48VDC

Battery input voltage range: 21.6～32VDC

Continuous output power: 5000W

Overload (5s): 8000W

Output voltage range: 220VAC±5%, 230VAC(-10%～+5%)

Output frequency: 50/60±0.1Hz

Output mode: Single phase

Output wave: Pure sine wave

Maximum efficiency: 95%

Input voltage range: 160VAC～ 280VAC（operating voltage range), 170VAC ~ 270VAC(initial voltage range)

MPPT voltage range: 80V - 350V

Max. Media charging current: 60A

Min. Open circuit voltage PV: 120V

Max. PV Open Circuit Voltage: 500V (Minimum Temperature), 440V (25℃)

Max. PV input power: 4000W

Max.PV charging current: 80A

Compatibility with batteries: AGM, Gel, Liquid, Lithium

Tracking efficiency: ›99.5%

Charging conversion efficiency: 98%

Own consumption: ›1 .2A

Protection grade: IP30

Working environment temperature: -20℃～50℃（full input and output without derating）

Dimension: 642.5x381.6x149mm

Mounting dimension: 230mm

Mounting hole size: Φ.8mm

Net weight: 19kg

Set of 2x15m solar cables 4mm2 Length of red wire: 15 meters

Length of black wire: 15 meters

Cross section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

MC4 serial connectors Contact material: Tinned copper

Suitable for cables: 4.0mm²~6.0mm² 12AWG-10AWG

Resistance: less than 0.3 m

Waterproof: IP 67

Pin dimensions: Ø,4mm

Flame class: UL94-V0

Rated voltage: TUV 1000V DC / UL 600V DC

Rated current: 20A-30A

Protection class: Class II

Pollution degree: 2
