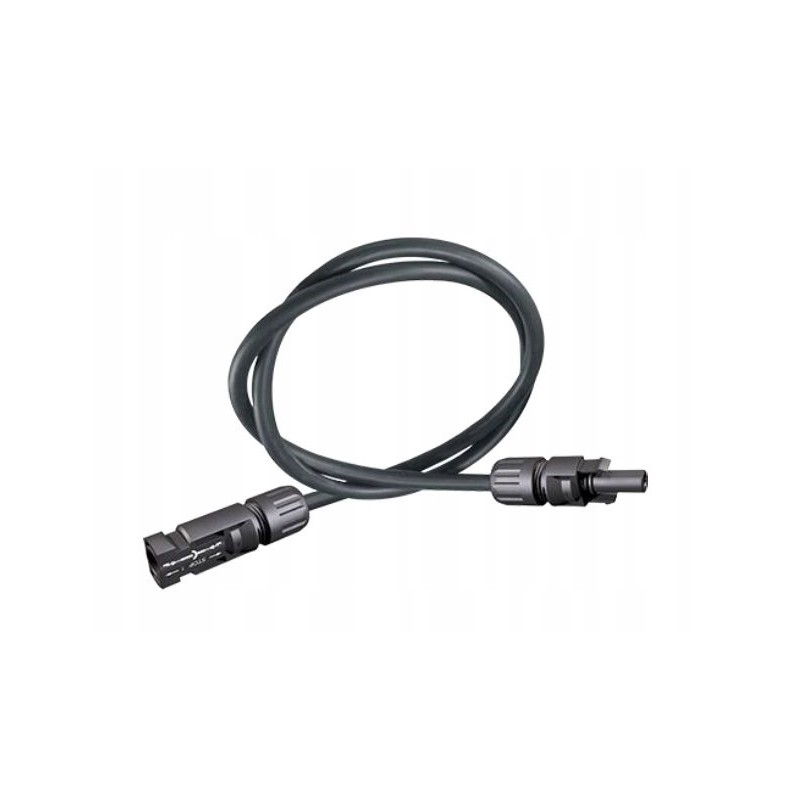

Staubli photovoltaic cable 4 mm2 10 meters

Photovoltaic cable with a cross-section of 4 mm2, made in accordance with the recommendations of the manufacturer of MC4 connectors, Staubli. Socket: PV-KBT4/6-I 32.0014P0001-UR

Plug: PV-KST4/6-I 32.0015P0001-UR

Cable: Flex-Sol-EVO-TX-4,0 62.7431-91021

Operating Voltage: 1000 VDC or 1500 VDC in restricted area

Nominal Current: 39 A

Length: 10 meters (1 pc)

Application: Connection of photovoltaic modules

Connecting modules and inverters

Standardization of connections in photovoltaic installations

Technical specifications: Nominal voltage: 1500 VDC max, 1800 V (UO) (IEC)

Test voltage according to EN 50395-6: 6.5 kVAC / 15 kVDC (5 min)

Rated voltage: 1500 VDC IEC

Rated current: 55 A

Insulation resistance according to EN 50395-8.2: ≥ 1000 MΩkm

Ambient temperature: -40°C… +90°C

Max cable core temperature: +120°C

Bending radius Dynamic / Static: >.5 x fi / >.4 x fi

Resistance to: UV radiation, Ozone, Hydrolysis

TÜV certificate according to EN50618 standard: R 50359551

This is an original product of the Swiss company Stäubli (Multi-Contact), characterized by reliability and durability in all conditions. It is made of the best components available on the market. Other auctions include:

original MC4 connectors for mounting on cables and in housings

new series of MC4 EVO connectors compatible with MC4

MC4 parallel connectors for connecting panel chains

tools for mounting MC4 and MC4 EVO 2

connectors FLEX SOL EVO TX solar cables (1500 VDC, according to EN 50618)

In the case of photovoltaic connectors, the most important thing is that their parameters are stable during the 25 years of operation of the installation. The minimal and time-stable contact resistance of MC4 connectors guarantees maximum financial profit thanks to minimal energy losses, no service interruptions and failures, and fire safety. The connector contacts are made of tinned copper, which, unlike silver-plated copper, ensures a lower rate of electrochemical corrosion both in the connection of plugs and in the connection of tinned wires crimped on the connectors.

The design of the new MC4 EVO2 connectors enables operation at a voltage of 1500 V and the transmission of much higher currents (for a 4 mm² cable - 45 A). Multi-Contact has obtained the following certificates for connectors: UL, TüV, IP68 1h/1m tightness, resistance to salts in the air and to ammonia gas. The connectors can be connected to wires with cross-sections of 2.5, 4, 6, 10 mm². FLEX SOL EVO TX solar cables meet the latest EN 50618 standard and, thanks to good quality copper, ensure minimal voltage drops. They are characterized by very good mechanical, chemical and environmental parameters. They are covered with a flame-retardant substance.

The product is new, original, unused, factory-packed.HOW TO PLACE AN ORDER
