Solar panel solar kit 170w BT controller

Solar kit 170W 12V MPPT* Product code: 35964

The solar kit with a power of 170W is an advanced solution for power supply needs in places away from the electrical grid, such as campers, boats or camping areas. The key component of the set is a 170W monocrystalline solar panel, which is characterized by exceptional efficiency and durability, ensuring optimal use of sunlight. The MPPT charging regulator used in the set significantly increases the efficiency of the photovoltaic system - by up to 25% compared to traditional PWM regulators. Thanks to this, solar energy is used more efficiently, which is important when powering 12V devices such as LED TVs, LED lighting, chargers or energy-saving refrigerators.

The set includes two solar cables, each 5 meters long and with a cross-section of 4 mm2, finished with connectors. , which facilitates installation and ensures a secure connection. The set is complemented by practical corner brackets, brackets and a roof adapter, which enable stable and durable installation of the panel.

Suggested battery for use with solar panels is 170Wto, a battery with a capacity of 80-120Ah.

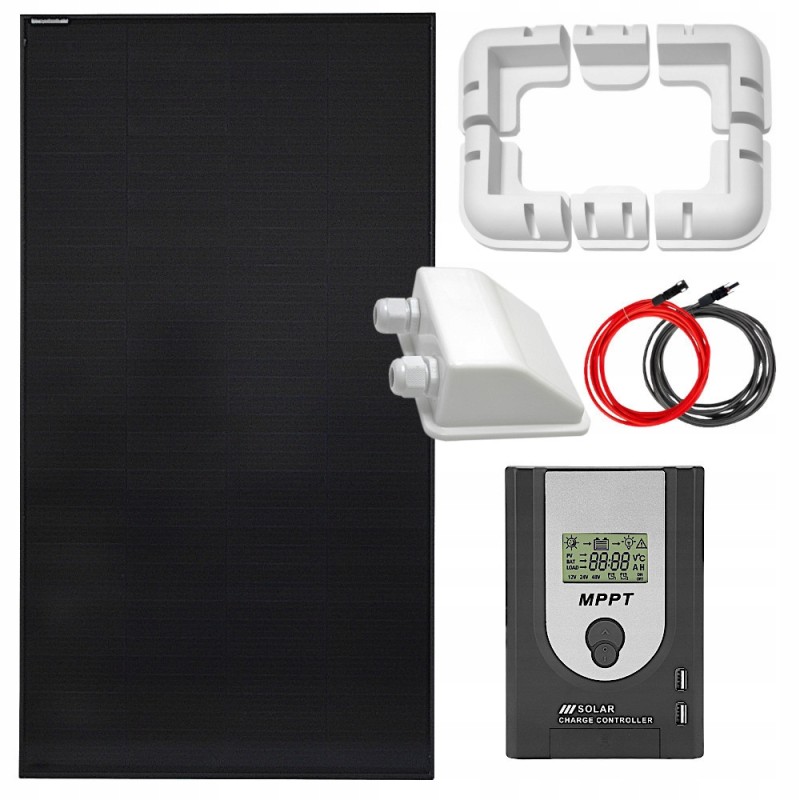

The set includes:* 1x Solarfam 170W monocrystalline solar panel

* 1x MPS 20A MPPT 12/24V USB charging controller

* 1x Corner holders for solar panels

* 1x Solar panel bracket holder

* 1x Roof adapter for solar cables

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Solarfam 170W monocrystalline solar panel Cells: Monocrystalline

Peak power: 170 W

Power tolerance: ± 3%

Efficiency: 21.4%

Max power voltage [Vmp]: 20.41 V

Max current [Imp]: 8.32 A

No-load voltage [Voc]: 24.26 V

Short-circuit current [Isc]: 8.75 A

Operating temperature: from -40°C to +85°C

Protection: Bypass diode

Frame: Anodized aluminum

Glass: 3.2mm tempered glass

Height: 123 cm

Width: 67 cm

Frame: 3 cm

Weight: 8 kg

MPS 20A MPPT 12/24V USB charging controller Output current: 20A

System voltage: 12V/24V automatic detection

Max. charging current: 20A

Battery voltage: 8V - 32V

Max. solar panel voltage: 75V

Max. solar panel power: 260W / 520W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 17.5 x 12 x 4.7 cm

Weight: 0 , 83 kg

Corner holders for solar panels Number of elements: 4 elements

Material: ABS, UV resistant

Color: White

Dimensions: 15 x 15 x 3.5 cm

Weight: 1.92 kg

Solar panel support holder Dimension: 8 x 7.5 x 4 cm

Cutout for solar panel: 25 x 30 mm

Color: White

Material: ABS

Roof adapter for solar cables Material: ABS

UV resistance: YES

Color: White

Number of pieces in the set: 1

Height: 4.50 cm

Width: 9.30 cm

Length: 11, 30 cm

Weight: 0.18 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
