Cable with direct connection 15a in line fuse pv k ilf 15 6n

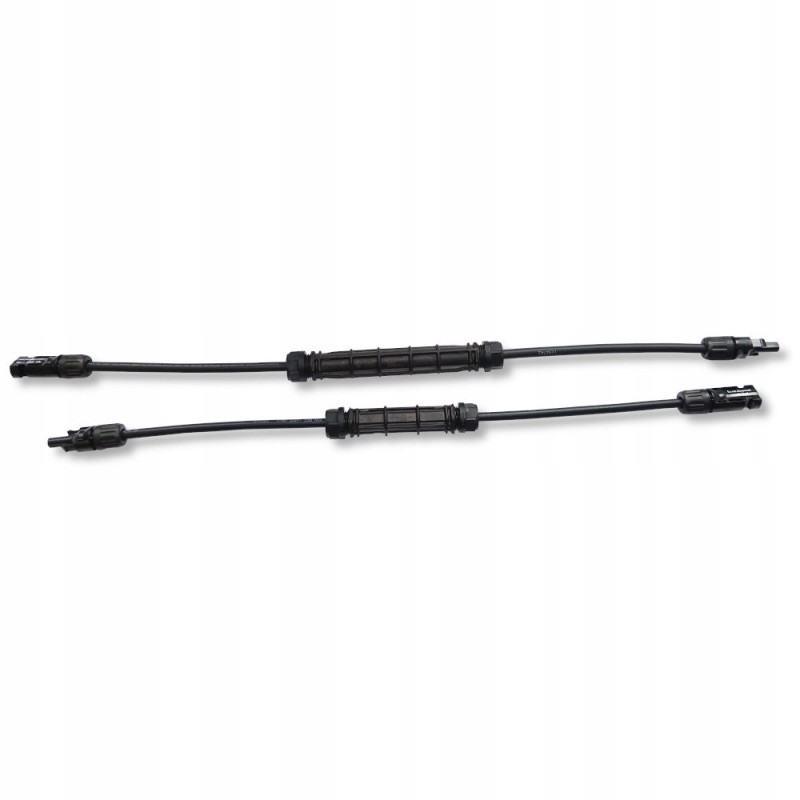

Cable with 15 A In-Line Fuse PV-K/ILF 15/6N Cable with a cross-section of 6 mm2 with a permanently installed 15 A / 1000 V fuse

Used for current protection of photovoltaic installations

Crimped internal connections guarantee lasting and stable contact

MC4 connectors are installed on both ends of the cable

Connection system: MC4 or MC4 Evo 2 connectors

Rated current of 1000 V fuses: 4 A, 10 A, 15 A, 20 A, 30 A

Rated current of 1500 V fuses: 4 A, 10 A, 15 A, 20 A

Rated voltage of fuses: 1000 V for cables 50 cm long

Rated voltage of fuses: 1500 V for cables 55 cm long

Insulation test voltage: 6600 V

Temperature ambient: -40�C � +50�C (UL9703 standard)

Max operating temperature: 105�C (TUV)

Casing protection level: IP68

Contact resistance: ? 0.25 m?

Material of electrical connectors: Tinned copper

Insulation: PC/PA/PA + GF

Wire cross-section: 6 mm?

Flammability class: UL94-V0

Certificate: Components certified according to the UL standard 9703 E474445

This is an original product of the Swiss company Staubli (Multi-Contact), characterized by reliability and durability in all conditions. It is made of the best components available on the market. Other auctions include:

original MC4 connectors for mounting on cables and in housings

new series of MC4 EVO connectors compatible with MC4

MC4 parallel connectors for connecting panel chains

assembly tools MC4 and MC4 EVO 2 connectors

FLEX SOL EVO TX solar cables (1500 VDC, according to EN 50618)

In the case of photovoltaic connectors, the most important thing is that their parameters are stable during the 25 years of operation of the installation. The minimal and time-stable contact resistance of MC4 connectors guarantees maximum financial profit thanks to minimal energy losses, no service interruptions and failures, and fire safety. The connector contacts are made of tin-plated copper, which, unlike silver-plated copper, ensures a lower rate of electrochemical corrosion both in the connection of plugs with each other and in the connection of tin-plated wires crimped on the connectors.

The design of the new MC4 EVO2 connectors enables operation at a voltage of 1500 V and transmitting significantly higher currents (for a 4 mm cable? � 45 A). Multi-Contact has obtained the following certificates for connectors: UL, TuV, IP68 1h/1m tightness, resistance to salts in the air and to ammonia gas. The connectors can be connected to wires with cross-sections of 2.5, 4, 6, 10 mm. FLEX SOL EVO TX solar cables comply with the latest EN 50618 standard and, thanks to good quality copper, ensure minimal voltage drops. They are characterized by very good mechanical, chemical and environmental parameters. They are covered with a flame-retardant substance.

The product is new, original, unused, factory-packed.HOW TO PLACE AN ORDER
