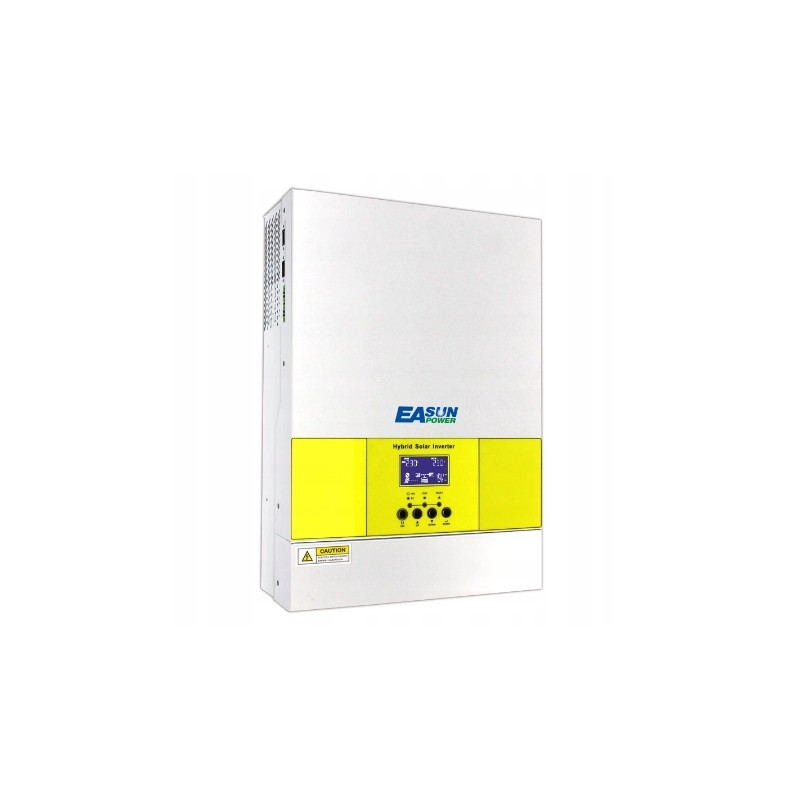

Easun inverter 3 6 kw solar mppt 100a wifi

EASUN solar inverters are designed to build independent 230V off-grid power systems based on energy obtained from PV panels, the power grid and a battery. Thanks to their modular design and flexible configuration, EASUN inverters can operate in UPS mode with battery charging from PV panels and/or the power grid, they can also work in buffer systems powered only by PV panels and/or supported by power from the grid.

General information

*Pure sine wave inverter

*WIFI MODULE INCLUDED (CONNECTS WITH THE APPLICATION)

*High PV input voltage range

*Built-in MPPT controller

* Battery equalization function for optimization

Battery performance and life cycle extension

*The inverter can operate without batteries above 250v with PV

*Built-in anti-twilight kit for harsh environments MPPT, what is it? The characteristic name MPPT comes from the English words translated as Maximum Power Point (MPP for short), which is used in the current-voltage description of solar panels. MPP is the point at which the solar panel obtains the highest voltage in given atmospheric conditions. The maximum power point will have a different value and location on a cloudy and sunny day. In turn, the name MPPT refers to charging regulators that are equipped with a special electronic algorithm. This is what allows you to constantly track the Maximum Power Point of the electrical voltage in photovoltaic panels. Technical parameters Rated power 3.6KVA/3.6KW

Input

Voltage 230 VAC

Supports the voltage range of 170-280 VAC (for personal computers) 90-280 VAC ( for home appliances)

Frequency range 50 Hz / 60 Hz (auto sensing)

Output

AC voltage regulation (for battery mode) 230VAC ± 5%

Peak power 7000VA

Efficiency (maximum) 93% ~ 96%

Time power switching: 15s @>,= 150% load, 10s at 110%-150% load

Waveform: Pure sine wave

Battery

Battery voltage 24 VDC

Variable charging voltage 27 VDC

Overcharge protection 33 VDC

Solar charger and AC/DC rectifier

MPPT solar charger type

Maximum open circuit voltage of photovoltaic panels: 500VDC

Maximum PV power 4000W

MPPT range Operating voltage 150 ~ 450VDC

Maximum solar panel charging current 100A

Maximum rectifier AC charging current 60A

Total maximum charging current 100A

Dimensions

depth x width x height (mm): 482x290x113

Net weight (kg): 9

Communication interface: USB / RS232 / RS485 / Bluetooth

Operating environment

Relative humidity: 5% to 95% (non-condensing)

Operating temperature - 10 °C to 50 °C

Storage temperature -15°C to 60°C

Included:

Solar inverter

wifi

Manual in Polish available for download in the additional information tab

Output stable sinusoidal supply voltage 230V (220V ,240V) is perfect for powering all electrical energy receivers, and the built-in starting overload support system allows you to power receivers with high starting current, such as compressors in refrigerators and generators.
