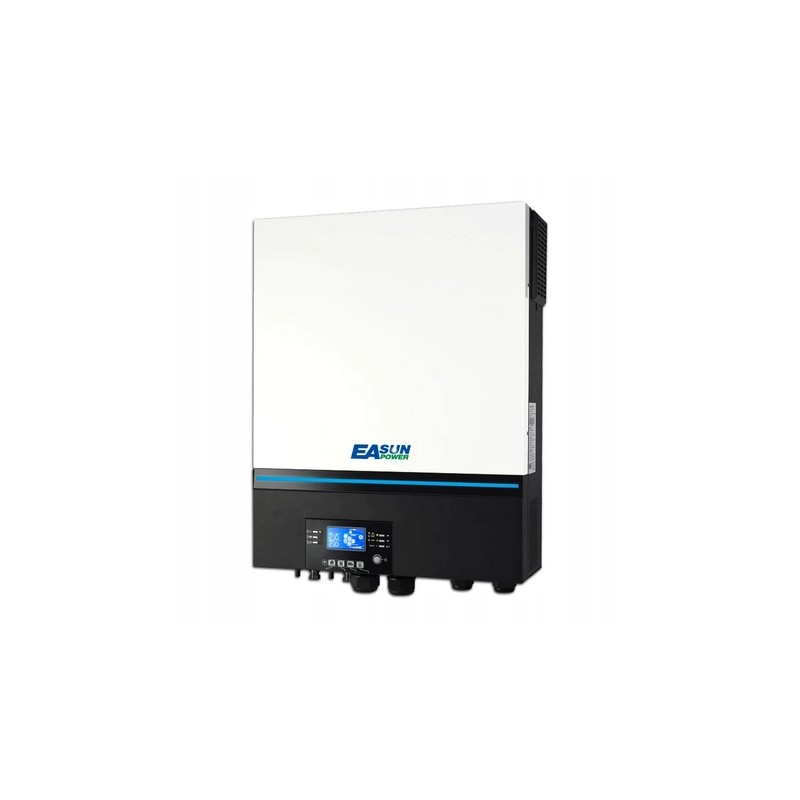

Easun 8kw solar inverter mppt 120a wifi

EASUN solar inverters are designed to build independent 230V off-grid power systems based on energy obtained from PV panels, the power grid and a battery. Thanks to their modular design and flexible configuration, EASUN inverters can operate in UPS mode with battery charging from PV panels and/or the power grid, they can also work in buffer systems powered only by PV panels and/or supported by power from the grid.

General information

* Built-in Wifi for mobile monitoring (Android/IOS apps are available)

* Supports USB On-the-Go

* Support BMS lithium battery (Pylontech, Weco, Soltaro)

* Replaceable fan design for easy maintenance * Battery-free operation (single device mode only)

*Configurable AC/PV output clock and priority

*High power charging current selection for selectable input voltage range for home and personal appliances *Compatible with mains power or generator input

*Built-in anti-dust kit

* Optional DC output for DC fan, LED bulb, router and so on * Parallel operation of up to 6 units, built-in parallel kit * Detachable LCD remote control display *High PV input design, max. 500V(Voc) input

MPPT, what is it? The characteristic name MPPT comes from the English words translated as Maximum Power Point (MPP for short), which is used in the current-voltage description of solar panels. MPP is the point at which the solar panel obtains the highest voltage in given atmospheric conditions. The maximum power point will have a different value and location on a cloudy and sunny day. In turn, the name MPPT refers to charging regulators that are equipped with a special electronic algorithm. This is what allows continuous tracking of the Maximum Power Point of the electrical voltage in photovoltaic panels. MODEL: ISolar SMW 8K

Rated power: 8KVA/8KW

Parallel capacity: Yes, up to 6 units

Input

Nominal voltage: 230VAC

Permissible voltage range: 170-280VAC (for personal computer),90-280VAC (for home appliances)

Frequency: 50/60Hz (auto detection)

Output

Nominal voltage: 230VAC ± 5%

Surge power: 16000VA

Efficiency (peak): 90% ~ 93%

Wave shape: Pure sine wave

Transfer time: 15ms (for personal computer),20ms (for home appliances)

No power consumption: <.70W

DC voltage (optional): 12VDC ± 5%, 100W

Battery

Battery voltage: 48VDC

Floating charging voltage: 54VDC

Overcharge protection: 66VDC

Solar charger and AC charger

Solar charger type: MPPT

Max. PV array power: 8000W(4000Wx2)

Max. PV open circuit voltage: 2x500VDC two strings

MPPT range @ operating voltage: 90VDC ~ 230VDC

Maximum solar charging: 120A

Maximum AC charging current: 120A

Maximum charging current: 120A

Physical

Dimensions, L x W x W (mm): 147.4x432.5x553.6

Net weight(kg): 18.4

Communication interface: USB/RS232/RS485/Wifi/Dry contact

Operating environment

Operating temperature: -10°C to 50°C

Storage Temperature: -15°C ~ 60°C

Humidity: 5% to 95%RH (non-condensing)
