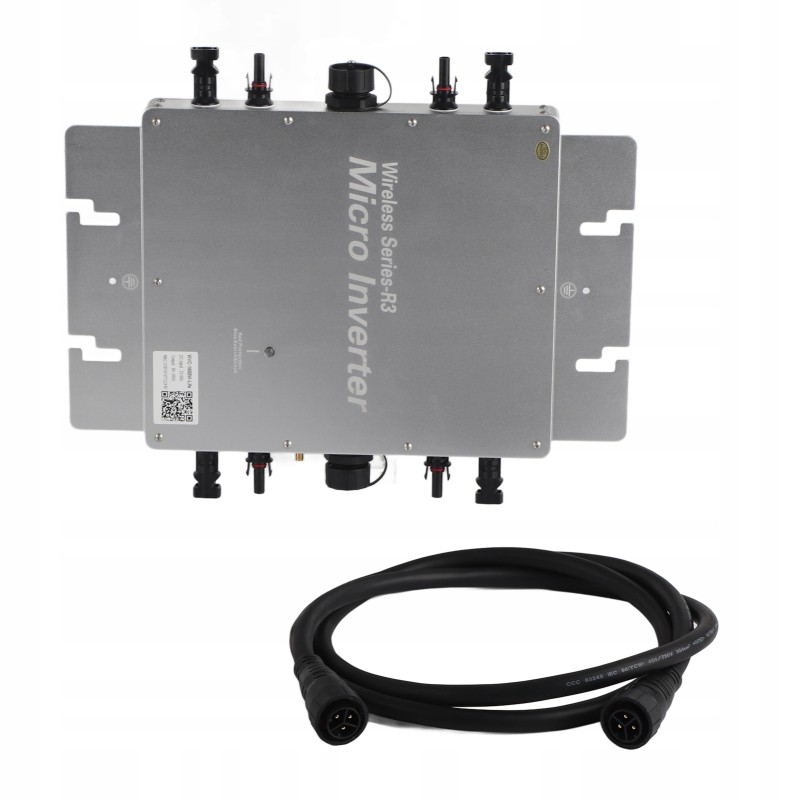

Solar photovoltaic power system

Feature:1. Micro inverter, supports AC 120/230V automatic voltage recognition, adaptive voltage/frequency.

2. Maximum power point tracking, reverse power transmission, stable performance.

3. Indoor high accuracy instrument with APP monitoring system, easy to install and use.

4. Solar inverter, with good waterproof performance and is an excellent photovoltaic power generation system.

5. Using high quality aluminum alloy materials + electronic components, no installation, no maintenance.

. Solar photovoltaic power system

Specification: Item type: micro inverter

Material: aluminum alloy + electronic components

Model: WVC-1600

Maximum input power: 1600W

Product application: solar power generation equipment

Applicable scenarios: solar power generation system (roof, outdoor)

Weight: approx. 3770g / 133oz

Product size: approx. 370 x 300 x 41.6 mm / 14.6 x 11.8 x 1.6 inch

Parameter

Output voltage mode 120/230V automatic AC voltage recognition

Solar panel open circuit voltage range 30-54VOC

Peak power tracking voltage 22-60V

Minimum/maximum starting voltage 22-60V

Maximum DC short circuit current 72.7 A

Maximum input operating current 61.5 A

Output parameters at 120 V at 230 V

Peak output power 1600W 1600W

Rated output power 1550W 1550W

Rated output current 13.3 A 6.95 A

Rated voltage range 80-160VAC 180-280VAC

Rated frequency range 48- 51Hz/58-61Hz 48-51Hz/58-61Hz

Power factor >.95% >.95%

Number of units connected per string 3 sets (single-phase) 6 sets (single-phase)

Output capacity at 120V at 230V

Static MPPT efficiency 99.50% 99.50%

Maximum output efficiency 95% 95%

Power loss at night

Total harmonic distortion

Appearance and technical parameters

Operating temperature range -40℃ - +65℃

IP65 NEMA3R waterproof level

Method cooling Self-cooling

433MHz/WiFi communication mode

Power transfer mode Reverse transmission, load priority use

Surveillance system mobile application, browser

Electromagnetic compatibility EN61000-6-1:2007 EN6100-6-3:2007+A1:2011+AC:2012

Network Interference EN50549-1, EN 50549-2, NBR 16149:2013, UL1741

Network Detection IEC/EN 62109-1, IEC/EN 62109-2, IEC 62116, IEEE 1547 Inverter Installation Steps:

Step 1: Fix the Inverter on the PV panel bracket using the screws included with the device.

Step 2: Connect the positive and negative poles of the DC connection plugs on the PV panel to the DC input terminals of the inverter.

Step 3: Open the waterproof cover of the AC output connector of the inverter and connect the AC cable to the waterproof plug AC.

Step 4: Connect the AC output line to the main AC cable,

Step 5: Repeat steps 1 to 3 to install and connect all inverters,

Step 6: Connect the main AC cable to the mains to start your journey green energy.

. Solar Photovoltaic Power System

Package List: 1 x Micro Inverter

1 x Cable

1 x English Manual

2 x Accessories Set (4 x Screw, 4 x Nut, 8 x Accessories)
