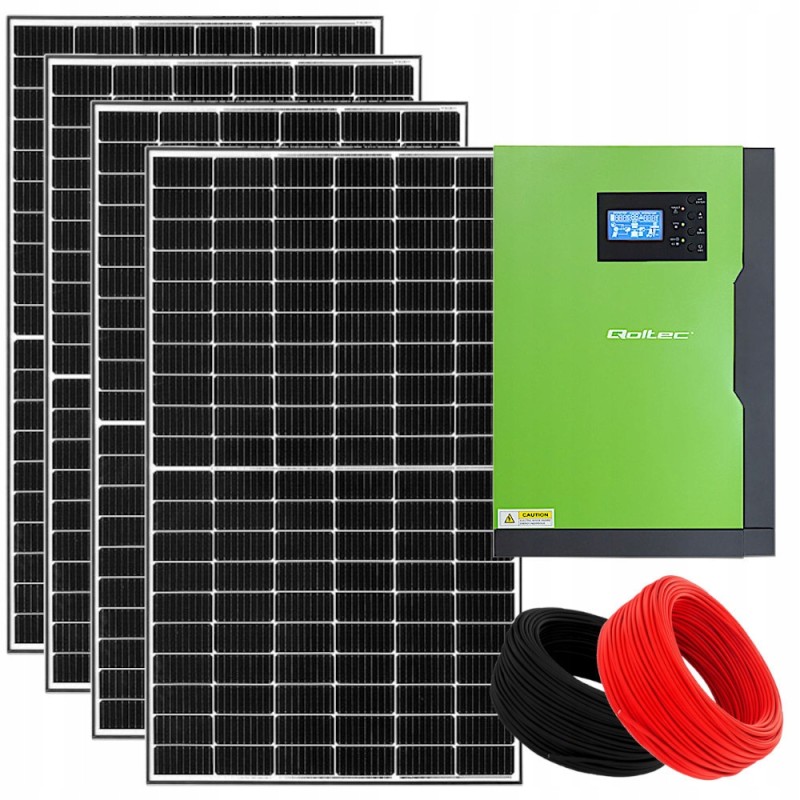

Solar hybrid kit 3kw 230v 3500w

Off Grid solar kit 24V 230V 3KW / 3500W* Product code: 36215

The solar system consisting of 3000W solar panels with a 230V 3500W hybrid inverter is an ideal power supply system used in homes where you can separate and save energy consumption from the power grid at home .

The hybrid inverter allows you to store the energy produced by solar panels in batteries and use it to power devices. When the batteries run out, it automatically switches to mains power. A hybrid inverter is the perfect solution to significantly save electricity bills. It is possible to connect batteries to use the electricity collected during the day.

The set includes:* 8x JA Solar 385W monocrystalline Silver solar panel

* 1x Qoltec 24V 3500W Off Grid Hybrid Inverter

* 1x Set of 2x15m solar cables 4mm2

* 1x MC4 serial connectors

JA Solar 385W monocrystalline Silver solar panel - 8 pieces Cells: Monocrystalline

Maximum power Pmax: 385W

No-load voltage Voc: 41.78 V

Short-circuit current Isc: 11.53 A

Maximum power voltage Vmp: 35.04 V

Maximum power intensity Imp: 10.99 A

Power tolerance: 0-+5%

Efficiency: 20.7%

Temperature current indicator Isc: +0.044%/◦C

Temperature voltage indicator Voc: -0.272 %/◦C

Temperature power index Pmax: -0.350 %/◦C

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Dimensions: 176.9 x 105.2 x 3.5 cm

Weight: 20.5 kg

Qoltec 24V 3500W Off Grid Hybrid Inverter Type:: Off-grid

Rated power: 3500VA/3500W

Peak power: 6000VA

Display: LCD

Charging type: MPPT

MPPT operating voltage range: 120 ~ 450VDC

Battery overcharge protection: 33 VDC

Storage temperature: -15˚C to +60˚C

Maximum battery charging current from PV: 100 A

Battery voltage: 24 VDC

Maximum charging current:: 100 A

Cooling system: 2 x fan

Maximum power of photovoltaic panel: 5000 W

Number of phases: Single-phase

Maximum open circuit voltage of photovoltaic panel:: 500 VDC

Nominal input voltage:: 230 VAC

Input voltage range: 90 - 280 VAC

Output voltage waveform: Pure sine wave

Operating frequency: 60/50 HZ

Efficiency: 90% ~ 93%

Protections:: Short circuit Against overheating Against overload Against overcharging

Switching time:: 10 ms (PC) 20 ms (Home devices)

Battery charging voltage: 27 VDC

Connector diameter: M6 - 6 mm

Noise: 45 dB

Operating temperature: -10˚C to +50˚C

Color housing: Green, black

Additional information: Possibility to connect an additional Wi-Fi module

Dimensions (D/D x W x H): 100 x 300 x 450 mm

Weight: 9.5 kg

Set of 2x15m solar cables 4mm2 Length of red wire: 15 meters

Length of black wire: 15 meters

Cross section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

MC4 serial connectors Contact material: Tinned copper

Suitable for cables: 4.0mm²~6.0mm² 12AWG-10AWG

Resistance: less than 0.3 m

Waterproof: IP 67

Pin dimensions: Ø,4mm

Flame class: UL94-V0

Rated voltage: TUV 1000V DC / UL 600V DC

Rated current: 20A-30A

Protection class: Class II

Pollution degree: 2
