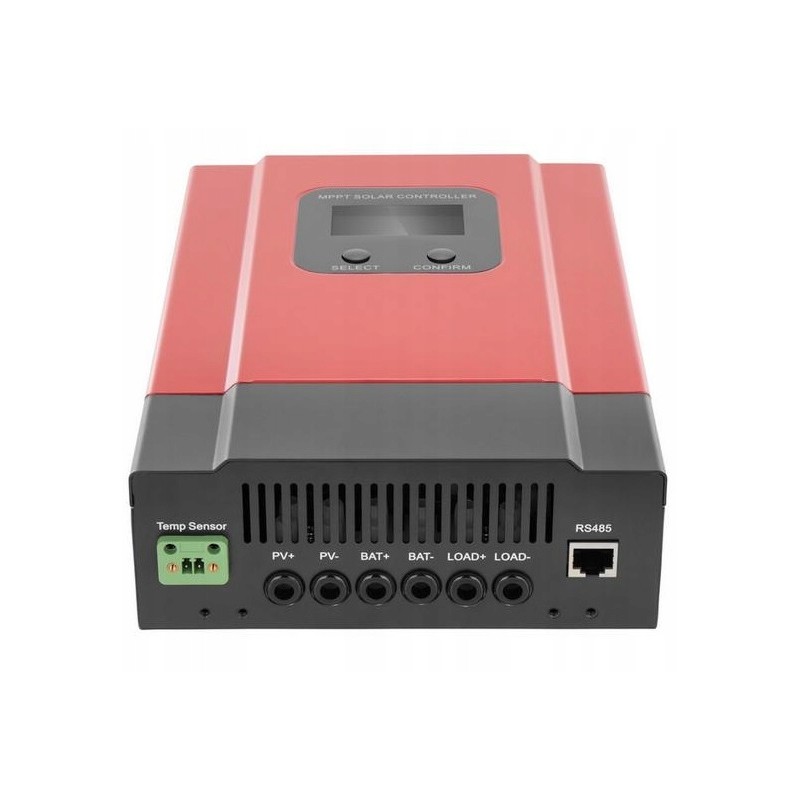

MPPT 60a solar charging controller for camper

MPPT solar charge controller 12/24/36/48V - 60A PRO LCD display MPPT controllers are an improved version of PWM type charge controllers. They fulfill all the basic functions required from a charge controller. Additionally, the regulator processor constantly checks the voltage value on the panel, detecting its maximum power point, the so-called MPPT (Maximum Power Point Tracking). As a result, the efficiency of MPPT regulators is incomparably greater, and in extreme cases the battery charging process can take up to half the time compared to classic PWM regulators.

The PRO version is equipped with a clear LCD display presenting current operating parameters and archived data. It also has the ability to manage individual settings from a Windows computer, and after equipping it with an optional wireless module, also via phones running Android and iOS. An additional important feature of this version of the regulator is the ability to program the LOAD output to operate at specific times.

Features:

Maximum operating point tracking (MPPT)

Automatic detection of 12V/24V/36V/48V battery voltage

Possibility of using high voltage panels

Multi-stage charging technology

Possibility to handle various types of batteries

Disconnection of receivers

Automatic switching on after disconnection

LOAD output with the possibility of automatic control

LCD display presenting operating parameters

Low power consumption in standby mode

External temperature measurement battery

Optional wireless communication module

Compatibility with Windows / Android / iOS systems

Security system

Battery overcharging

Deep battery discharge

Before polarity reversal

Automatic electronic fuse

Short circuit protection

Protection against too high voltage Uoc

Protection against reverse current to the panel at night

Thermal protection

Overload protection

PARAMETERS:

Rated operating voltage: 12V / 24V / 36V / 48V

12V charging voltage: 9V-15V

24V charging voltage: 18V-30V

36V charging voltage: 32V-40V

48V charging voltage: 42V-60V

Voltage stability: below +/- 1.5%

Maximum charging current: 60 A

Supported battery type: AGM / GEL / LiFePo4 / own

Charging method: CC-CV-FL

Total power: 12V-780W, 24V-1560W, 36V-2340W, 48V-3120W

Input voltage (PV): <, 150V

Voltage (PV) charging start: AKU +3V

PV low voltage protection: AKU +2V

PV overvoltage protection: 150V

Reconnection voltage: 145V

Output voltage (LOAD): equal to the battery output voltage

Output disconnection voltage (LVD): 10.5V (switching on 11V)

Output current: 60A

Own consumption: 0.5W-1.2W

Cooling: Active

Noise: below 40 dB

Operating temperature: -20 St C - +50 St C

Temperature compensation: -3 mV/St/2V (default)

Maximum wire cross-section: 20 mm²

Communication and management: RS485 (PC)

Communication and management (option): WiFi (Android / iOS)

Protection level (IP): IP21

Dimensions LxWxH [mm]: 275 x 180 x 85 [mm]

Weight [kg]: 2.60 kg

Included

Solar controller

External temperature sensor

Cable USB to PC

Screwdriver with replaceable tips

Mounting brackets

User manual in Polish
