Camper kit, LCD solar panel, 190W

SOLAR POWER KIT 190W FLEX - FLEXIBLE PANEL KIT 190W ETFE is characterized by high power for monocrystalline modules and a fully flexible and waterproof construction. It is made using modern light-absorbing technology, which makes the module up to 35% more efficient than other monocrystalline modules. ETFE material was used as the outer coating, which, compared to commonly available PET, ensures greater absorption of sunlight by reducing glare.

Bending strength in the frontal plane up to 15 degrees.

The modules are fully waterproof, adapted for use on a yacht, camper, caravan, boat.

Panel:Material: Monocrystalline silicon

Maximum system voltage [V DC]: 600

Max power voltage: Vmp [V]: 19.5

Max current: Imp [A]: 9.74

No-load voltage Voc [V]: 23.4

Short-circuit current: Isc [A]: 10.7

Coating: ETFE

Junction box: IP67

Connector: Type MC4

Dimensions [mm]: 1480x665x3

Weight [kg]: 3.2 kg

Certificates: CE ISO ROHS FCC

Operating temperature [°C]: -40 to +85

Power tolerance [%]: +3

Regulator: Regulator operating mode : 12V/24V auto

Max. solar or load current: 10A

Low voltage cut-off: 11.1V

Low voltage reconnection: 12.6V

Max solar voltage: 50V

Max battery voltage: 9~32V

Max wire size: 4mm2

Protection level: IP30

Temp. operation: -25 C ~ +55 C

Instruction in Polish: YES

Dimension [mm] / Weight: 142 x 85 x 41.5mm / 220g

Casing: Plastic

The VS1024AU PWM charging controller is a device that has been developed in accordance with the latest available technology and has many unique features, such as:

Dual USB output

LED display showing system parameters.

Possibility to control lighting.

Possibility to connect a temperature sensor.

Charging Controller automatically adjusts to the voltage 12V or 24V system.

Disconnecting the receiver when the voltage drops significantly.

Up to 4 mm2 clamp diameter for connection cables.

Comprehensive electronic protection against: overvoltages, short circuits, reverse polarity, overload, etc.

The device is dedicated to work with gel, lead-acid and AGM batteries.

SINUS converter 12V/230V 2000WThe characteristic feature of SINUS converters, which distinguishes them from classic simple DC/AC converters, is the generation of a sinusoidal alternating voltage at the output, identical to that in the power grid. This allows you to power devices equipped with electric motors and transformers, such as power tools, pumps and low-power household appliances (refrigerators).

Input voltage [VDC]: 11÷15 VDC

Output voltage [VAC]: 230 VAC

Maximum power : 2000 W

Continuous power: 1000 W

Output voltage waveform: Sinusoidal

Soft START: YES

Overload protection: YES

Short circuit protection: YES

Thermal protection: YES

Battery discharge warning: YES

Cooling: Active

Power connector: M6 screw connector

230V output socket: 1 x E (with pin)

USB socket: 5V / 500mA

Housing: Aluminum

Dimensions L x W x Height [mm]: 260 x 157 x 77

Weight: 3.1 kg

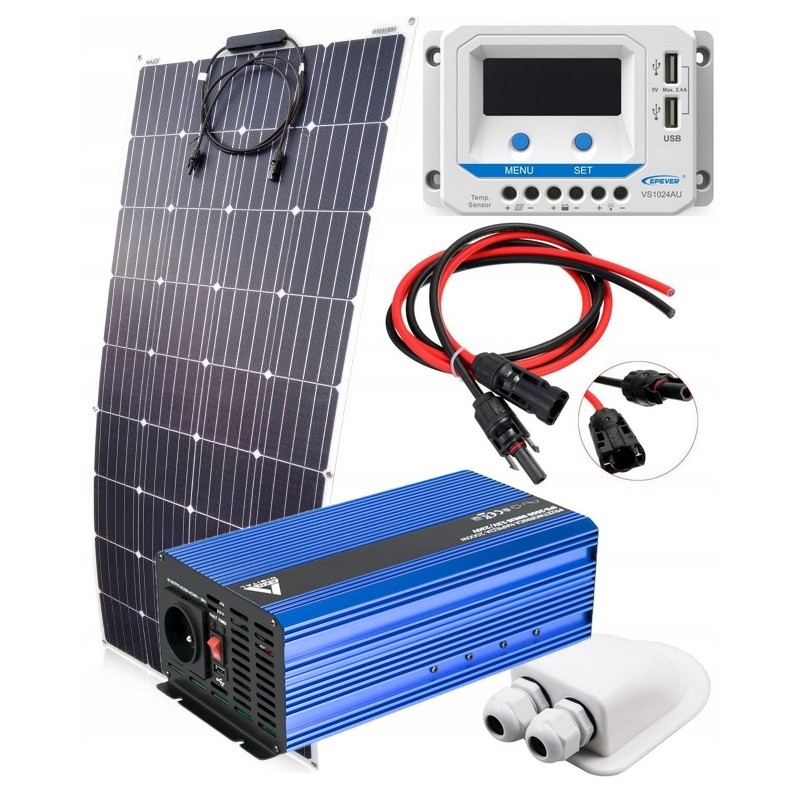

In the set: Flexible panel 190W ETFE

Charging controller 10A LCD

2000W 12V SINUS converter

Roof adapter

Solar cables 4mm2 - 2 x 7mb

MC4 connectors
