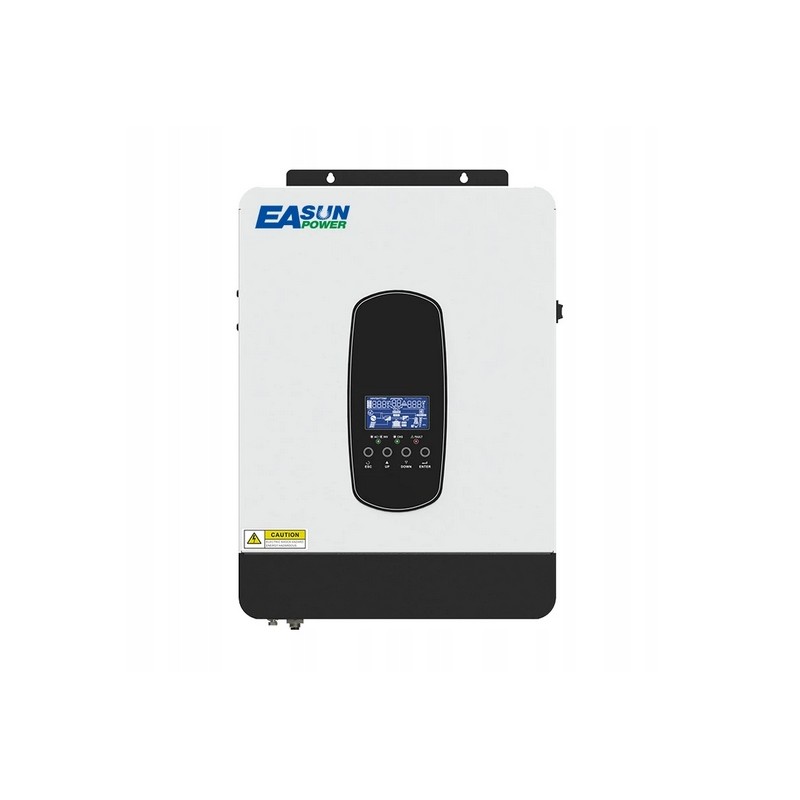

Easun 7 kw solar inverter mppt 80a wifi

1. Full digital voltage and current regulator double closed loop, advanced SPWM technology, pure sine wave output.

2. Two output modes: grid bypass and inverter output, UPS system.

3. Available in 4 charging modes: solar only, grid priority, solar priority and grid and solar hybrid charging.

4. Advanced MPPT technology with 99.9% efficiency.

5. With charging requirements (voltage, current, mode) settings, and suitable for various types of energy rechargeable batteries.

6. On/off rocker switch to control AC output.

7. Energy saving available to reduce no-load losses.

8. Intelligent variable fan that effectively dissipates heat and extends system life.

9. Lithium battery activation design, allowing access to lead-acid battery and lithium battery.

10.360° all-round protection with multiple security functions. Such as overload, short circuit and over current.

11. Supply of various user-friendly communication modules like RS485(WiFi ), USB etc.,

12. And it is suitable for computer, mobile phones, internet monitoring as well as remote operations.

13. The lithium battery can be activated both by the grid and PV.

It does not work without batteries First, please connect the batteries to the inverter MPPT, what is it? The characteristic name MPPT comes from the English words translated as Maximum Power Point (MPP for short), which is used is in the current and voltage description of solar panels. MPP is the point at which the solar panel obtains the highest voltage in given atmospheric conditions. The maximum power point will have a different value and location on a cloudy and sunny day. In turn, the name MPPT refers to charging regulators that are equipped with a special electronic algorithm. This is what allows you to constantly track the Maximum Power Point of the electrical voltage in photovoltaic panels. Technical parametersModels: ISolar-SMH-II-7KWOratedpower: 7000VA/6200W

Input

Voltage: 230Vac

SelectableVoltageRange: (170Vac ~ 280Vac)± 2%, (90Vac) -280Vac)±2%

Frequency band: 50Hz/60Hz (autodetection)

Output

ACVoltageRegulation (Batt.Mode): 230VAC±5%

Surgepower: 14000VA

Transfer time: 10ms(forpersonalcomputers)/20ms(forhhomeapplices)

Mileage: PureSineWave

Battery and ACCCHARGER

Battery voltage: 48VDC

FloatingChargeVoltage: 54VDC

OverchargeProtection: 61vdc

Maximum charging current: 80A

SOLARCHARGER

Max. PVArrayPower: 6000W

MPPTRange @ OperatingVoltage: 55-450VDC

MaximumVoltagePVArrayOpenCircuit: 450VDC

Maximum chargecurrent: 110A

Maximum efficiency: 98%

Physical

Dimension. D*W*H(mm): 423x310x120mm

Net weight(kgs): 8.0kg

CommunicationInterface: RS232/RS485(Standard)/GPRS/WIFI(optional)

Operating environment

Humidity: 5% to 95% RH (without condensation)

Operating Temperature: -10°Cto55°C

StorageTemperature: -15°Cto60°C

Included:

Solar inverter

wifi

Output stable sinusoidal power supply voltage 230V (220V,240V) is perfect for powering all electrical energy receivers, and the built-in starting overload support system allows you to power receivers with high starting current, such as compressors in refrigerators and generators.
