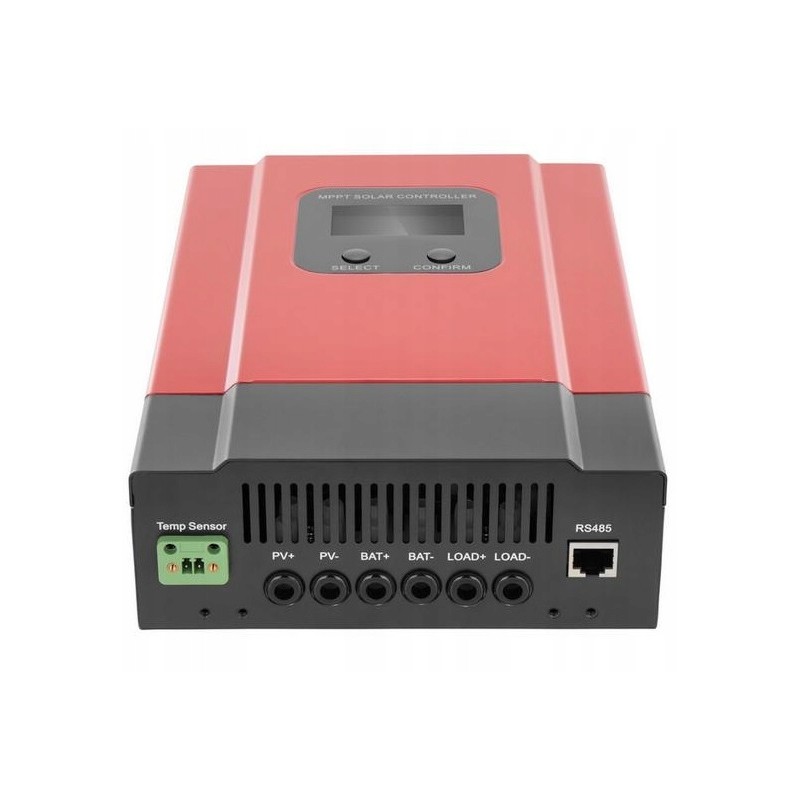

Solar charging controller MPPT 60A LCD camper

MPPT solar charge controller 12/24/36/48V - 60A PRO LCD display MPPT controllers are an improved version of PWM type charge controllers. They fulfill all the basic functions required from a charge controller. Additionally, the regulator processor constantly checks the voltage value on the panel, detecting its maximum power point, the so-called MPPT (Maximum Power Point Tracking). As a result, the efficiency of MPPT controllers is incomparably greater, and in extreme cases the battery charging process can take up to half as long as in the case of classic PWM controllers.

The PRO version is equipped with a clear LCD display presenting current operating parameters and archived data. It also has the ability to manage individual settings from a Windows computer and, after equipping it with an optional wireless module, also via phones running Android and iOS. An additional important feature of this version of the regulator is the ability to program the LOAD output to operate at specific times.

Characteristics:

Maximum Operating Point Tracking (MPPT)

Automatic detection of battery voltage 12V/24V/36V/48V

Possibility of using high voltage panels

Multi-stage charging technology

Possibility to handle various types of batteries

Disconnecting receivers

Automatic switching on after disconnection

LOAD output with automatic control option

LCD display presenting operating parameters

Low power consumption in standby mode

External battery temperature measurement

Optional wireless communication module

Works with Windows / Android / iOS

Security system

Battery overcharging

Deep battery discharge

Before changing the poles

Automatic electronic fuse

Short-circuit protection

Protection against too high voltage Uoc

Protection against reverse current to the panel at night

Thermal protection

Overload protection

PARAMETERS:

Rated operating voltage: 12V / 24V / 36V / 48V

12V charging voltage: 9V-15V

24V charging voltage: 18V-30V

36V charging voltage: 32V-40V

48V charging voltage: 42V-60V

Voltage stability: below +/- 1.5%

Maximum charging current: 60 A

Supported battery type: AGM / GEL / LiFePo4 / own

Charging method: CC-CV-FL

Total power: 12V-780W, 24V-1560W, 36V-2340W, 48V-3120W

Input voltage (PV): <, 150V

Charging start voltage (PV): BAT +3V

Low voltage PV protection: AKU +2V

PV overvoltage protection: 150V

Reconnection voltage: 145V

Output voltage (LOAD): equal to the battery output voltage

Output disconnect voltage (LVD): 10.5V (switch-on 11V)

Output current: 60A

Own consumption: 0.5W-1.2W

Cooling: Active

Noise: below 40 dB

Operating temperature: -20 St C - +50 St C

Temperature compensation: -3 mV/St/2V (default)

Maximum cable cross-section: 20 mm²

Communication and management: RS485 (PC)

Communication and management (option): WiFi (Android / iOS)

Degree of protection (IP): IP21

Dimensions LxWxH [mm]: 275 x 180 x 85 [mm]

Weight [kg]: 2.60 kg

Included

Solar controller

External temperature sensor

USB cable for PC

Screwdriver with replaceable tips

Mounting brackets

User manual in Polish
