Solar hybrid kit 2kw 230v 3000w

Off Grid solar kit 230V 2KW / 2400W* Product code: 36327

The Off Grid 230V 2KW solar kit is a modern solution for households, allowing for significant savings in the consumption of electricity from the grid. The set includes six solar panels made of monocrystalline silicon, which guarantees high efficiency and long-lasting operation. The heart of the system is a 24V 230V 2400W hybrid inverter, which enables effective storage of the energy produced by the panels. The inverter automatically switches to mains power when the batteries are depleted, ensuring an uninterrupted supply of energy.

This solar kit is an excellent choice for people who want to minimize their dependence on electricity supplies, reduce bill costs and contribute to environmental protection by using renewable energy sources.

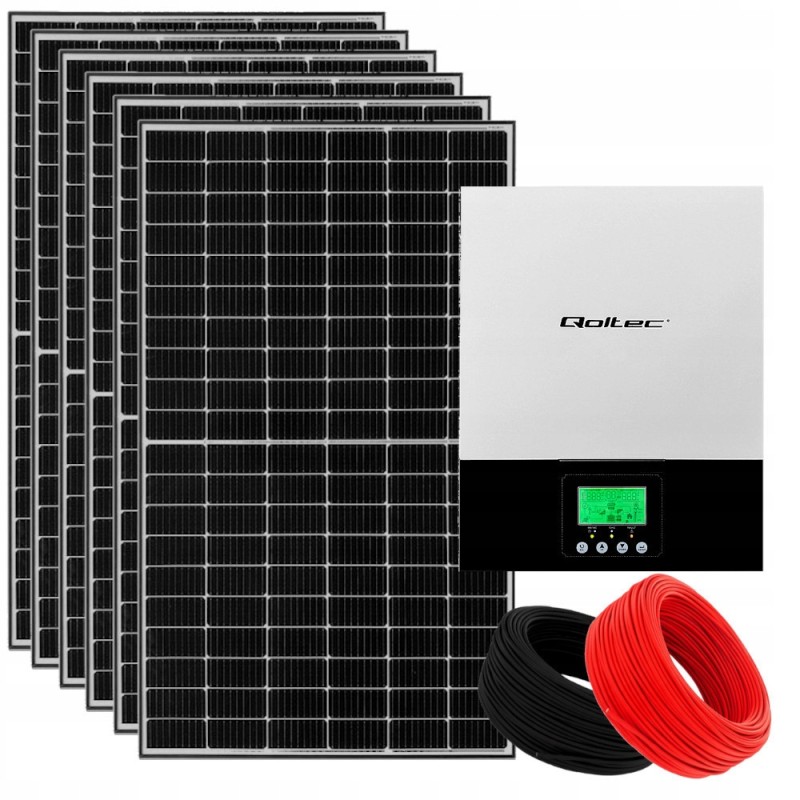

The set includes:* 6x Solar panel JA Solar 385W monocrystalline Silver

* 1x Off Grid Qoltec hybrid inverter 24V 230V 2400W

* 1x Set of 2x15m solar cables 4mm2

* 1x MC4 serial connectors

Solar panel JA Solar 385W monocrystalline Silver - 6 pieces Cells : Monocrystalline

Maximum power Pmax: 385W

No-load voltage Voc: 41.78 V

Short-circuit current Isc: 11.53 A

Maximum power voltage Vmp: 35.04 V

Maximum power intensity Imp: 10.99 A

Power tolerance: 0-+5 %

Efficiency: 20.7 %

Temperature current indicator Isc: +0.044 %/◦C

Temperature voltage indicator Voc: -0.272 %/◦C

Temperature power indicator Pmax: -0.350 %/◦C

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Dimensions: 176.9 x 105.2 x 3.5 cm

Weight: 20.5 kg

Qoltec Off Grid Hybrid Inverter 24V 230V 2400W Type: Off-grid

Charging type: MPPT

Rated power: 3000VA/2400W

Peak power: 6000W

Output voltage waveform: Pure sine wave

Maximum power of the photovoltaic panel: 3000W

MPPT operating voltage range: 120 ~ 450VDC

Maximum charging current: 80 A

Interface: RS232

Number of phases: Single-phase

Operating frequency: 50Hz / 60Hz (automatic detection)

Nominal input voltage: 230 VAC

Cooling system: 2 x fans

Switching time: 10 ms (PC) 20 ms (Home appliances)

Efficiency: 95%

Protections: Short-circuit Against overheating Against overload Against overcharging

Battery charging voltage: 27 VDC

Variable charging voltage: 27VDC

Battery overcharge protection: 31VDC

Battery voltage: 24VDC

Maximum battery charging current from PV: 80A

Maximum open circuit voltage of the photovoltaic panel: 450VDC

Display: LCD

Noise : 45 dB

Operating temperature: -10˚C ~ +50˚C

Additional information: Possibility to connect an additional Wi-Fi module

Housing color: White, black

Dimensions (D/D x W x H): 348 x 270 x 95 mm

Weight: 5.1 kg

Set of 2x15m solar cables 4mm2 Length of red wire: 15 meters

Length of black wire: 15 meters

Cross section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

MC4 serial connectors Contact material: Tinned copper

Suitable for cables: 4.0mm²~6.0mm² 12AWG-10AWG

Resistance: less than 0.3 m

Waterproof: IP 67

Pin dimensions: Ø,4mm

Flame class: UL94-V0

Rated voltage: TUV 1000V DC / UL 600V DC

Rated current: 20A-30A

Protection class: Class II

Pollution degree: 2
