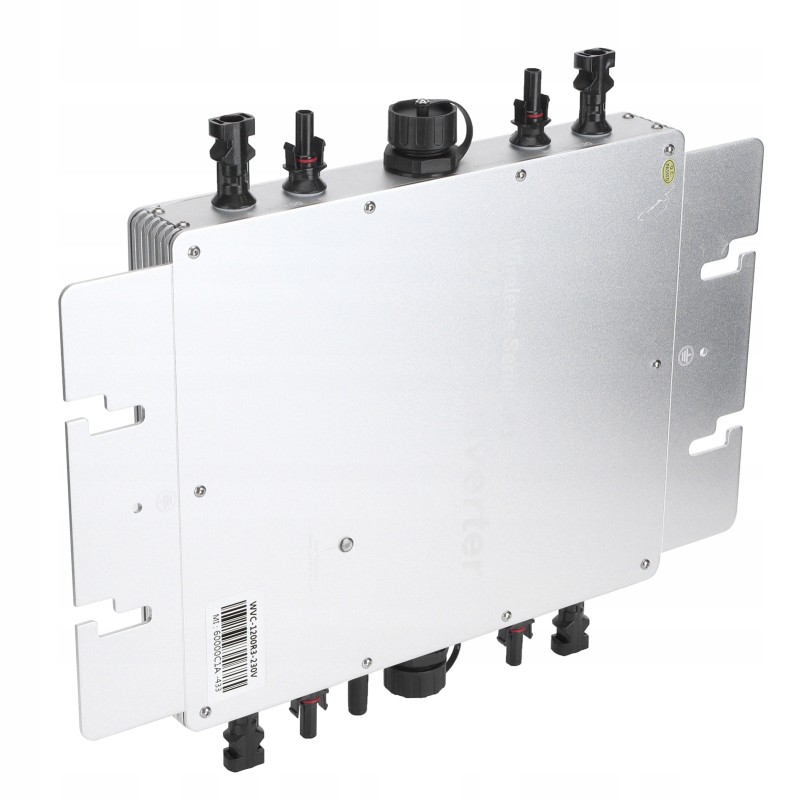

Wvc 1200 micro inverter sine wave solar system

Feature:1. Micro inverter, support maximum power point fast tracking (MPPT), reverse power transmission.

2. The input and output are completely isolated in terms of power consumption, which is safer and more reliable.

3. Support multiple parallel stacks, global voltage/frequency self-adaptation.

4. Built-in high-accuracy electric meter, high-accuracy induction microgrid mode.

5. The solar inverter has good waterproof performance and is widely used in rooftop and outdoor applications.

6. 5G Web of Things platform data management, with mobile phone APP monitoring system.

7. High-frequency modulated network connection mode in full forward bridge topology, without installation and maintenance.

. WVC-1200 Micro Inverter Sine Wave Solar System

Specification: Item Type: Micro Inverter

Material: Aluminum Alloy + Electronic Components

Model: WVC-1200

Maximum Input Power: 1200W

Product Application: Solar Power Generation Equipment

Applicable Scenarios: solar power system (roof, outdoor)

Weight: approx. 3675 g / 129.6 oz

Product size: approx. 370 x 300 x 41.6 mm / 14.6 x 11.8 x 1.6 inch

Parameter

Output voltage mode Auto switching

Solar panel open circuit voltage range 30-60VOC

Power tracking peak voltage 22-60V

Min/max. Initial voltage 22-60 V

Maximum short-circuit current DC 55A

Maximum working current input 48A

Output parameters at 120 V at 230 V

peak output power 1200W 1200W

Rated output power 1150W 1150W

rated output current 10a 5.22a

voltage range rated 80-160VAC 180-280VAC

Rated frequency range 48-51Hz/58-61Hz 48-51Hz/58-61Hz

Power factor >.95% >.95%

Number of connected units per chain 3 sets (single phase) 6 sets ( single phase)

Output efficiency at 120V at 230V

Static MPPT efficiency 99.50% 99.50%

Maximum output efficiency 95% 95%

Night power loss

Total harmonic distortion

Appearance and specifications

Operating temperature range - 40℃ to +65℃

IP65 NEMA3R waterproof level

Cooling method Self-cooling

433MHz/WiFi communication mode

Power transfer mode Reverse transmission, load priority use

Surveillance system mobile application, browser

Electromagnetic compatibility EN61000-6-1:2007 EN6100- 6-3:2007+A1:2011+AC:2012

Network interference EN50549-1, EN 50549-2, NBR 16149:2013, UL1741

Network detection IEC/EN 62109-1, IEC/EN 62109-2, IEC 62116 , IEEE 1547 Inverter Installation Steps:

Step 1: Fix the inverter on the PV panel bracket with the screws included with the device.

Step 2: Connect the positive and negative poles of the DC connection plugs on the PV panel to the DC input terminals of the inverter.

Step 3: Open waterproof cover of the inverter's AC output connector and connect the AC cable to the waterproof AC plug.

Step 4: Connect the AC output line to the main AC cable,

Step 5: Repeat steps 1 to 3 to install and connect all inverters,

Step 6: Plug your AC mains cable into the mains to start your green energy journey.

. WVC-1200 Micro Inverter Sine Wave Solar System

Package List: 1 x Micro Inverter

1 x Cable

1 x English Manual

2 x Accessories Set (4 x Screw, 4 x Nut, 8 x Accessories)
