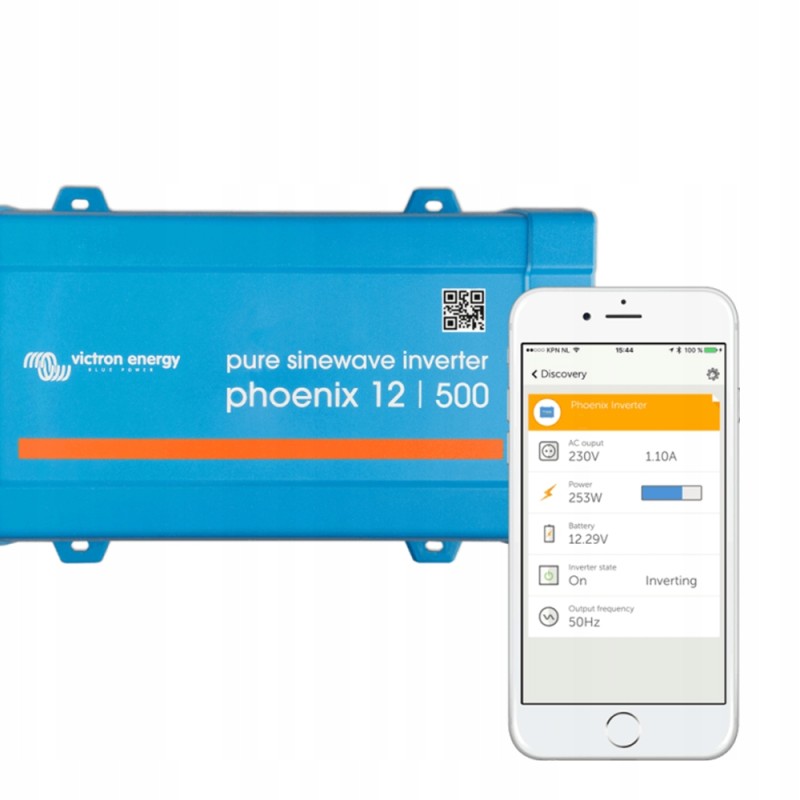

Voltage converter victron 12v 900w inverter

Inverters allow you to power home appliances that require 230/120V AC from recreational vehicle batteries or automotive batteries rated at 12, 24 or 48V DC.

* Advantages

VE.Direct Communication Port

VE Port .Direct can be connected to:

Computer (VE.Direct to USB interface cable required)

Smartphones, tablets, MacBooks and other Apple and Android devices (VE.Direct Bluetooth Smart dongle required)

Fully customizable:

Low battery alarm and reset levels

Low battery voltage cut-off and restart levels

Dynamic cut-off: load-dependent cut-off level

Output voltage 210 – 245V

Frequency 50 Hz or 60 Hz

ECO mode on/off and ECO mode sensing level

Basic technical data

Rated power [W]: 400

Rated power [VA]: 500

Maximum power [W]: 900

Maximum efficiency [%]: 90

Input voltage range DC [V]: 9.2 - 17

DC supply voltage [V]: 12

Sine: full *

AC output voltage [V]: 230/120VAC +/- 3% 50/60Hz +/- 1%

Automatic load cut-off voltage [V]: 9.3

Automatic load cut-off voltage [V]: 10.9

Operating temperature: -40 to +65°C (fan cooling)

Dimensions [mm]: 275 x 172 x 86

Weight [Kg]: 3.9

Protection class: IP21

Number of phases: 1

Communication type: VE.Direct

Safety standards

EN-IEC 60335-1 / EN-IEC 62109-1

EMC standards

EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3

* VE.Direct communication port

Porthe VE.Direct can be connected to:

Computer (via VE.Direct - USB cable - not included)

Apple and Android smartphones, tablets, Macbooks and other devices (via VE.Direct Bluetooth Smart dongle - not included)

Fully programmable:

Low and high alarm voltage - alarm activation and reset levels

Low and high voltage - disconnection and recovery levels

Output voltage 220/230/240V

Frequency 50 Hz or 60 Hz

ECO mode on/off and ECO mode levels

Monitoring:

Input/output voltage and current, temperature, alarms

* Proven reliability

The bridging plus toroidal transformer topology has proven its reliability for many years. The inverters have protection against short circuits, against overheating, both due to overload and high ambient temperature.

* High starting power

Necessary for loads such as a converter for LED lamps, halogen lamps or electrical devices.

* ECO mode

In ECO mode, the inverter will switch to standby mode when the load drops below the set value. In standby mode, the inverter turns on for a while (programmable, default every 2.5 seconds). If the load exceeds the set level, the inverter will remain on.

* Remote on/off

The remote switch can be connected to the two-pole connector, or between the positive terminal of the battery and the connector on the right side of the two-pole connector.

* LED diagnostics

See the user manual for details .

* Transfer load to another AC source: automatic transfer switching

For our low power inverters we suggest our Filax Automatic Transfer Switch. Filax has an ultra-fast switch (less than 20ms), so your computer or other electronic device will work continuously while switching.
