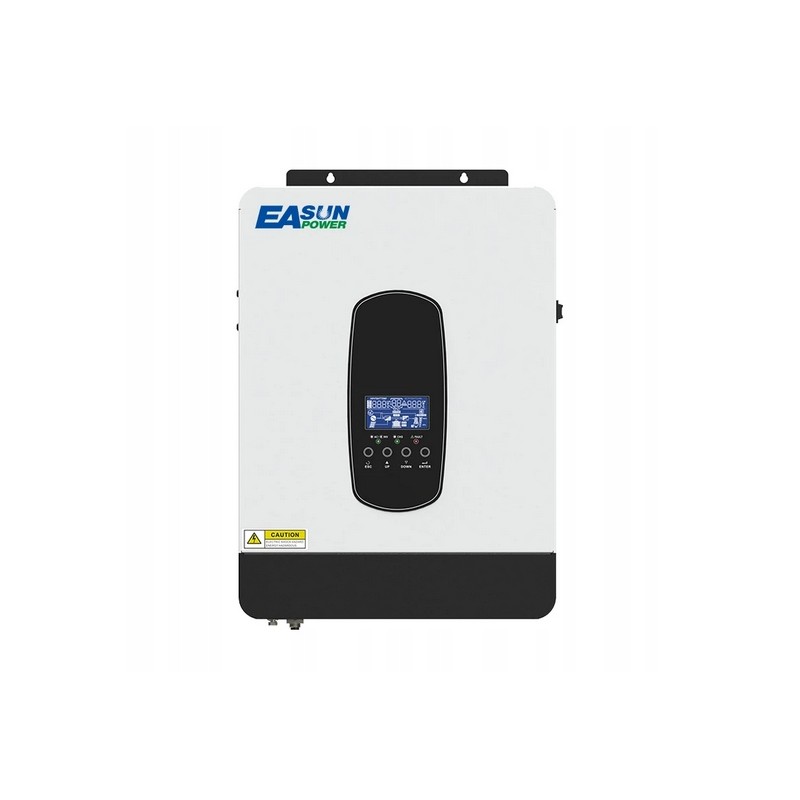

Easun inverter 3 2 kw solar mppt 80a wifi

1. Full digital voltage and current regulator double closed loop, advanced SPWM technology, pure sine wave output.

2. Two output modes: grid bypass and inverter output, UPS system.

3. Available in 4 charging modes: solar only, grid priority, solar priority and grid and solar hybrid charging.

4. Advanced MPPT technology with 99.9% efficiency.

5. With charging requirements (voltage, current, mode) settings, and suitable for various types of energy rechargeable batteries.

6. On/off rocker switch to control AC output.

7. Energy saving available to reduce no-load losses.

8. Intelligent variable fan that effectively dissipates heat and extends system life.

9. Lithium battery activation design, allowing access to lead-acid battery and lithium battery.

10.360° all-round protection with multiple security functions. Such as overload, short circuit and over current.

11. Supply of various user-friendly communication modules like RS485(WiFi ), USB etc.,

12. And it is suitable for computer, mobile phones, internet monitoring as well as remote operations.

13. The lithium battery can be activated both by the grid and PV.

It does not work without batteries First, please connect the batteries to the inverter MPPT, what is it? The characteristic name MPPT comes from the English words translated as Maximum Power Point (MPP for short), which is used is in the current and voltage description of solar panels. MPP is the point at which the solar panel obtains the highest voltage in given atmospheric conditions. The maximum power point will have a different value and location on a cloudy and sunny day. In turn, the name MPPT refers to charging regulators that are equipped with a special electronic algorithm. This is what allows you to constantly track the Maximum Power Point of the electrical voltage in photovoltaic panels. Technical parametersModels: ISolar-SMH-II-3.2KW

Rated power: 3200VA/3000W

Input

Voltage: 230Vac

Voltage range to choose from: ( 170Vac ~ 280Vac)± 2%,(90Vac-280Vac)± 2%

Frequency range: 50Hz/60Hz (auto detection)

Output

AC voltage regulation (Batt. mode): 230VAC ± 5%

Surge power: 6400VA

Transfer time: 10ms (for PC)/20ms (for home devices)

Wave: Pure sine wave

AC battery and charger

Battery voltage: 24VDC

Variable charging voltage: 27VDC

Over-charge protection : 31VDC

Maximum charging current: 60A

Solar charger

Max. PV array power: 3000W

Working voltage in the MPPT range: 55-450VDC

Maximum voltage in the open circuit of the PV system: 450VDC

Maximum charging current: 80A

Maximum efficiency: 98%

Physical

Dimension D * W * H(mm): 405x286x98mm

Net weight(kgs): 5.0kg

Communication interface: RS232/RS485(Standard)/GPRS/WIFI(optional)

Operating environment

Humidity: 5% to 95% RH (without condensation)

Operating temperature: -10°Cto55°C

Storage temperature: -15°Cto60°C

Included:

Solar inverter

wifi

Output stable sinusoidal power supply voltage 230V (220V,240V) perfectly suitable to power all electrical energy receivers, and the built-in starting overload support system allows you to power receivers with high starting current, such as compressors in refrigerators and generators.
