Solar panel solar battery 100w flexible

Solar kit 100W 12V MPPT* Product code: 35865

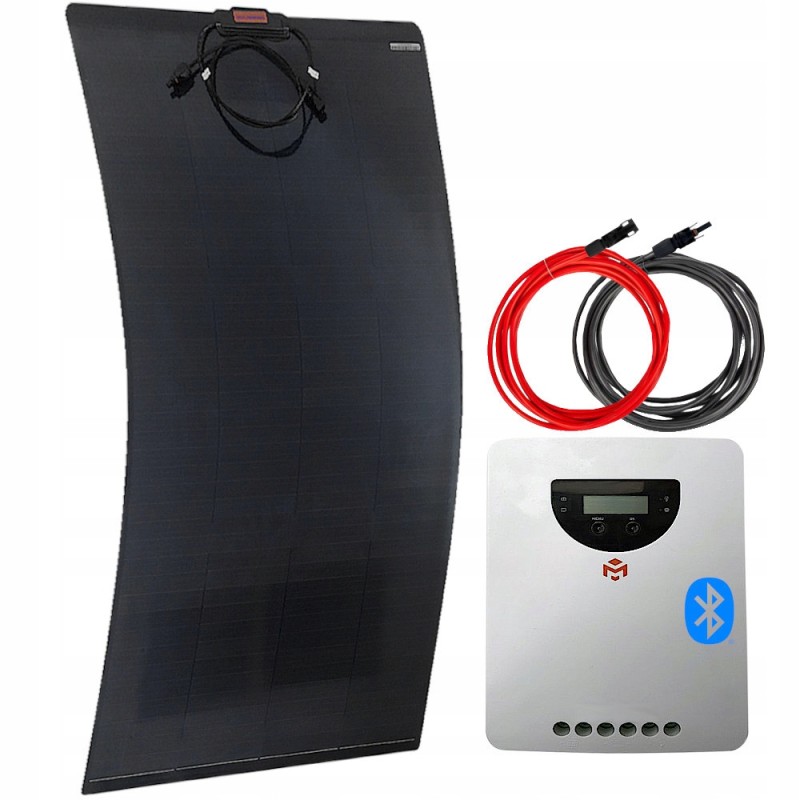

The 100W solar kit consists of a flexible monocrystalline solar panel that combines the advantages of high efficiency monocrystalline cells with the practicality of a flexible structure. The panel is ideal for mobile applications, such as campers or boats, where its flexibility allows for installation on a variety of surfaces, including slightly curved ones.

The set also includes an MPPT 20A charge controller, equipped with Bluetooth technology, which allows remote monitoring of the solar system via a dedicated application. This is a solution that increases comfort of use and efficiency of energy management.

The included set of solar cables with a length of 2x5 meters and a diameter of 2.5 mm² facilitates installation and ensures optimal energy transfer.

The set includes: * 1x Solarfam 100W flexible panel

* 1x Lumiax 20A charging controller MPPT 12/24V Bluetooth

* 1x Set of 2x5m 2.5mm2 solar cables terminated with connectors

Solarfam 100W flexible panel Cells: Monocrystalline

Peak power: 100W

Power tolerance: +3%

Efficiency: 17.7%

Voltage power [Vmp]: 19.25 V

Max current [Imp]: 5.19 A

No-load voltage [Voc]: 22.75 V

Short circuit current [Isc]: 5.71 A

Temperature range: -40 °C to +65°C

Connection box: IP67

Cables: 65 cm with MC4 connectors

Height: 113 cm

Width: 52 cm

Thickness: 2 mm

Weight: 2.5 kg

Lumiax 20A MPPT 12/24V Bluetooth Charge Controller Model: MC2010BT

System Voltage [V]: Auto Sensing 12V/24V

Max. charging current [A]: 20A

Charging voltage MPPT: Before boost mode (pulse charging) or equalization mode

Volt. Boost: 14~14.8/28~29.6V at 25℃(default: 14.5/29V)

Volt. Equalization: 14~15.0/28~30V at 25℃ (default: 14.8/29.6V at 25°C (Liquid, AGM)

Float Voltage: 13~14.5/26~39V at 25℃ (default: 13.7/27.4) V)

Receiver disconnection at low voltage: 10.8~11.8V/21.6~23.6V（default: 11.2/22.4V)

Volt. reconnect: 11.4~12.8V/22.8~25.6V（default: 12.0/24.0V)

Overcharge protection: 15.8/31.3V

Max. battery connector voltage: 35V

Temperature compensation: 4.17mV/K for the cell (Boost, Equalization)， 3.33mV/K for the cell (Float - maintenance charging)

Target charging voltage: 10.0~32.0V (lithium, default : 14.4V)

Charging recovery voltage: 9.2~31.8V(lithium, default: 14.0V)

Volt. low voltage disconnection: 9.0~30.0V(lithium, default: 10.6V)

Volt. low voltage connections: 9.6~31.0V(lithium, default: 12.0V)

Battery type: Gel, AGM, Liquid, Lithium（default: Gel)

Max. PV junction voltage *1: 100V(-20℃), 90V(25℃)

Max. input power: 260/520W

Day/night threshold: 3.0~12.8V/6.0~20.0V（default: 8/16V)

MPPT tracking range: (Battery voltage + 1.0V）~Voc*0.9 *2

Output current: 20A

Receiver mode: Always on, Street lamp, User mode Always on)

Max. tracking efficiency: >, 99.9%

Max. charging conversion: 98.0%

Dimensions: 13.6 x 13.6 x 6.7 cm

Weight: 0.83 kg

Own consumption: ›12mA

Communication: RS485 (RJ11 interface), IoT, Cyber-BT

Ground: Common minus

Ambient temperature: -20 ~ +55℃

Storage temperature:: -25 ~ +80℃

Ambient humidity: 0 ~ 100%RH

Protection rating: IP32

Max. altitude: 4000m

Set of 2x5m 2.5mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 2.5 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
