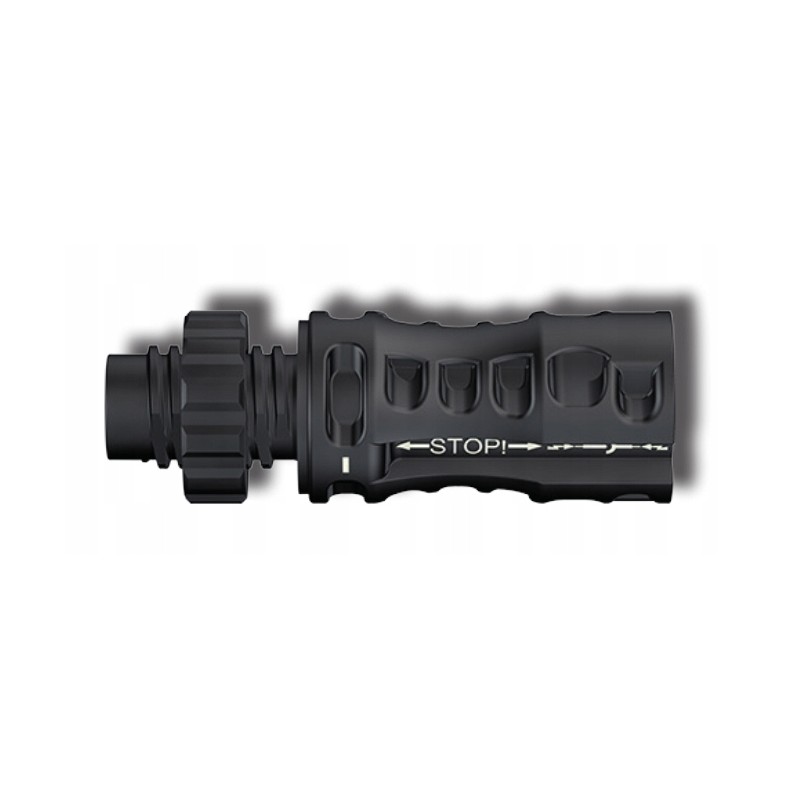

Staubli panel plug mc4 pv ads4 evo2 4 6mm2

PANEL PLUG MC4 (-) PV-ADS4-EVO2 4 mm2 or 6 mm2 Plug for photovoltaic installations.

Cable cross-section: 4 mm2 or 6 mm2

Total cable diameter: 5.5 to 7.4 mm

Resistance to salts in the air

Resistance to ammonia contained in the air

Certificates: UL, TÜV-Rheinland, CSA, CQC

For installation in inverters in photovoltaic installations, installation in a housing.

The plug is sold with the original connector (pin) Technical parameters MC4-Evo 2 panel connectors

Contact type:

Banana connector Ø 4 mm, made of tin-plated copper, elastic Multilam® elements are placed inside the sockets to improve electrical contact.

Max system voltage:

1500 V DC (TÜV)

1500 V DC (UL)

TÜV nominal current:

39 A – 2.5 mm²

42 A – 4.0 mm²

47 A – 6.0 mm²

Test voltage:

16 kV 1500V DC

Temperature operating:

-40°C … +85°C (TÜV)

-40°C … +90°C (UL)

Max operating temperature:

115°C

Protection level:

IP65/IP68 ( 1 h/1 m)

IP2X (disconnection state)

Overvoltage category/Pollution degree:

CAT III/3

Contact resistance ≤ 0.2 mΩ (guaranteed after approx. 25 years ≤ 0.35 mΩ)

Class safety:

Class II

Type of cable connection/Disconnection protection (UL):

Clinching/click system

Insulation:

PA (polyamide)

Flammability class:

UL94-VO

Certificates:

TÜV-Rheinland according to the IEC 62852:2014 standard - R60127171

UL according to the UL 6703 standard - E343181

It is an original product of the Swiss company Stäubli (Multi-Contact), characterized by reliability and durability in all conditions. It is made of the best components available on the market. Other auctions include:

original MC4 connectors for mounting on cables and in housings

new series of MC4 EVO connectors compatible with MC4

MC4 parallel connectors for connecting panel chains

tools for mounting MC4 and MC4 EVO 2

connectors FLEX SOL EVO TX solar cables (1500 VDC, according to EN 50618)

In the case of photovoltaic connectors, the most important thing is that their parameters are stable during the 25 years of operation of the installation. The minimal and time-stable contact resistance of MC4 connectors guarantees maximum financial profit thanks to minimal energy losses, no service interruptions and failures, and fire safety. The connector contacts are made of tinned copper, which, unlike silver-plated copper, ensures a lower rate of electrochemical corrosion both in the connection of plugs and in the connection of tinned wires crimped on the connectors.

The design of the new MC4 EVO2 connectors enables operation at a voltage of 1500 V and the transmission of much higher currents (for a 4 mm² cable - 45 A). Multi-Contact has obtained the following certificates for connectors: UL, TüV, IP68 1h/1m tightness, resistance to salts in the air and to ammonia gas. The connectors can be connected to wires with cross-sections of 2.5, 4, 6, 10 mm². FLEX SOL EVO TX solar cables meet the latest EN 50618 standard and, thanks to good quality copper, ensure minimal voltage drops. They are characterized by very good mechanical, chemical and environmental parameters. They are covered with a flame-retardant substance.
