Solar panel solar kit 100w controller

100W 12V MPPT USB solar kit* Product code: 35862

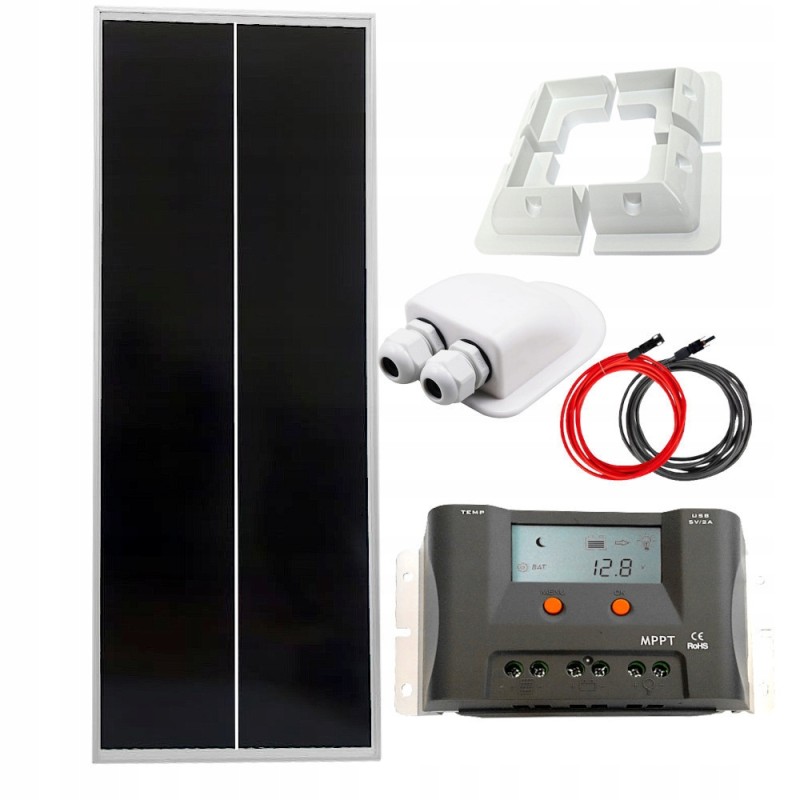

The 100W 12V MPPT solar kit, containing a 100W monocrystalline solar panel, a 10A MPPT charge controller, a set of 2.5mm2 solar cables with a length of 2x5m with connectors, corner brackets for mounting panels and a roof adapter, is a well-thought-out solution for obtaining solar energy. This system is particularly useful in motorhomes, camping sites and boats, enabling the use of 12V devices such as LED TVs, LED lighting, chargers, and energy-efficient compressor refrigerators with a thermostat.

The MPPT 10A charge controller increases the efficiency of the photovoltaic system by 25% in compared to PWM controllers, which allows for more efficient use of solar energy. The set also includes practical corner brackets and a roof adapter, which facilitates the installation of the panel and ensures assembly stability.

To ensure adequate energy capacity, a battery with a capacity of 70-100Ah is recommended.

The set includes:* 1x Solarfam 100W monocrystalline solar panel

* 1x Lumiax MPPT 10A charging controller

* 1x Corner brackets for solar panels

* 1x DD-W roof adapter

* 1x Set of 2x5m 2.5mm2 solar cables terminated with connectors

Solarfam 100W monocrystalline solar panel Cells: Monocrystalline

Peak power: 100 W

Power tolerance: ±3%

Efficiency: 21.4%

Max power voltage [Vmp]: 18.15 V

Max current [Imp]: 5.51 A

No-load voltage [Voc]: 21, 45 V

Short circuit current [Isc]: 5.9 A

Terminal: MC4

Frame: Anodized aluminum

Glass: Highly transparent tempered glass

Operating temperature: -40 ~ +85

Height: 116 cm

Width: 45 cm

Frame width: 3 cm

Weight: 6.3 kg

Lumiax MPPT 10A charge controller System voltage: 12V

Max. charging current: 10A

MPPT charging voltage: ‹14.5/29.0V (at 25°C)

Boost voltage: 14.5/29.0V (at 25°C)

Equalization voltage: 14.8/29.6V (at 25°C) )

Float voltage: 13.7/27.45V (at 25°C)

Load disconnection at low voltage: 10.8~11.8V/21.6~23.6V SOC1~5

Reconnection voltage: 11.6~12.8V/23.2~25.6 V

Overcharge protection: 15.5/31.0V

Max. battery connector voltage: 35V

Temperature compression: -4.17mV/K per cell (Boost, Equalization) -3.33mV/K per cell (Float)

Battery type: Liquid, Gel

Max. PV connector voltage: 45V

Max. input power: 130W

Dusk/dawn detection voltage: 8.0/16.0V

MPPT tracking range: ~Voc0.9

Output current: 10A

USB interface: 5V, 2A

Operation mode: Standard, D2D, Illumination street (2 -9h)

Max. tracking efficiency: >, 99.9%

Max. charging conversion: 96.5%

Dimension: 189 x 96 x 53 mm

Weight: 0.48 kg

Own power consumption: 7mA

Ambient temperature: -20 ~ +50°C

Storage temperature: - 25 ~ +80°C

Ambient humidity: 0 ~ 100%RH

Protection level: IP32

Corner holders for solar panels Number of elements: 4 elements

Material: ABS, UV resistant

Color: White

Dimensions: 15 x 15 x 6.6 cm

Weight: 1.92 kg

DD-W roof adapter Material: ABS

UV resistance: YES

Color: White

Number of pieces in the set: 1

Number of cable entries: 2

Cable thickness: 1mm - 6mm

Installation method: Gluing to the ground

Service life: About 10 years

Height: 4.5 cm

Width: 9.3 cm

Length: 11.3 cm

Weight: 0.18 kg

Set of 2x5m 2.5mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 2.5 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
