Solar panel solar kit 100w controller

100W 12V MPPT Bluetooth solar kit* Product code: 35902

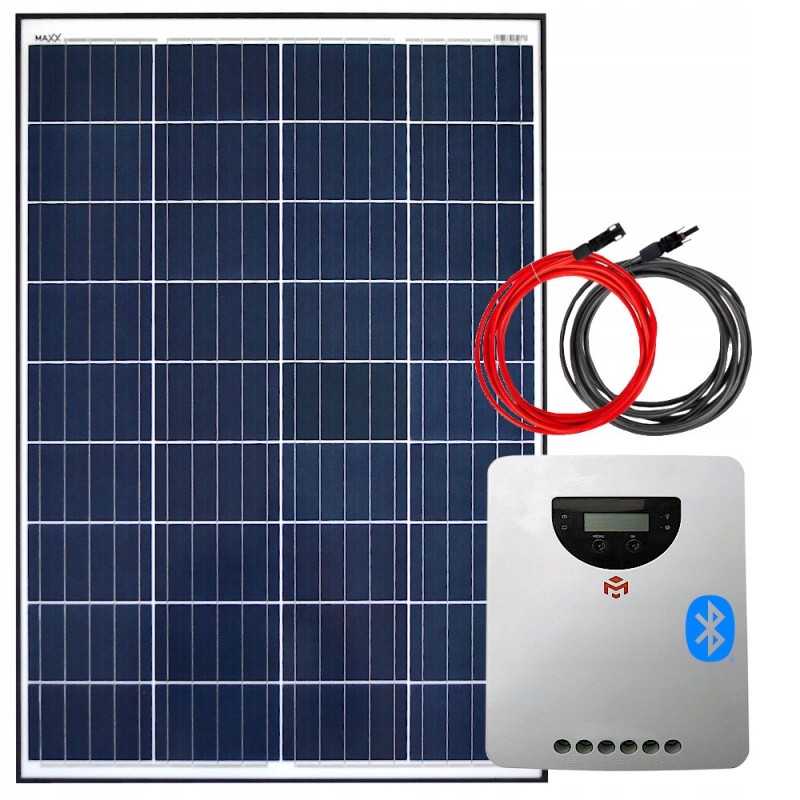

The 100W 12V MPPT Bluetooth solar kit includes a 100W polycrystalline panel, a 20A MPPT charge controller with Bluetooth function and a set of 2.5mm2 solar cables, 2x5m long with connectors. It is an effective system for powering 12V devices, ideal for use in motorhomes, camping or on boats. The MPPT 20A charge controller, equipped with Bluetooth technology, allows easy monitoring of the system, increasing photovoltaic efficiency by up to 25% compared to PWM controllers. This functionality allows for more efficient use of solar energy, which is crucial for optimizing the operation of the system. A set of solar cables with a cross-section of 2.5 mm2, terminated with connectors, ensures a safe and stable connection. For optimal operation of the system, a battery with a capacity of 70-100Ah is recommended, which allows for adequate energy storage.

The set includes:* 1x Maxx 100W polycrystalline solar panel

* 1x Lumiax 20A MPPT 12/24V Bluetooth charging controller

* 1x Set of 2x5m solar cables 2 .5mm2 terminated with connectors

Maxx 100W polycrystalline solar panel Cells: Polycrystalline

Peak power: 100W

Power tolerance: +3%

Max power voltage [Vmp]: 18 V

Max current [Imp]: 5.55 A

No-load voltage [Voc]: 21.6 V

Short-circuit current [Isc]: 5.99 A

Frame: Anodized black aluminum

Glass: Tempered glass 3.2mm

Terminal: MC4

Length: 93 cm

Width: 67 cm

Depth: 3.5 cm

Weight: 6.6 kg

Lumiax 20A MPPT 12/24V Bluetooth Charge Controller Model: MC2010BT

System Voltage [V]: Auto Sensing 12V/24V

Max. charging current [A]: 20A

Charging voltage MPPT: Before boost mode (pulse charging) or equalization mode

Volt. Boost: 14~14.8/28~29.6V at 25℃(default: 14.5/29V)

Volt. Equalization: 14~15.0/28~30V at 25℃ (default: 14.8/29.6V at 25°C (Liquid, AGM)

Float Voltage: 13~14.5/26~39V at 25℃ (default: 13.7/27.4) V)

Receiver disconnection at low voltage: 10.8~11.8V/21.6~23.6V（default: 11.2/22.4V)

Volt. reconnect: 11.4~12.8V/22.8~25.6V（default: 12.0/24.0V)

Overcharge protection: 15.8/31.3V

Max. battery connector voltage: 35V

Temperature compensation: 4.17mV/K for the cell (Boost, Equalization)， 3.33mV/K for the cell (Float - maintenance charging)

Target charging voltage: 10.0~32.0V (lithium, default : 14.4V)

Charging recovery voltage: 9.2~31.8V(lithium, default: 14.0V)

Volt. low voltage disconnection: 9.0~30.0V(lithium, default: 10.6V)

Volt. low voltage connections: 9.6~31.0V(lithium, default: 12.0V)

Battery type: Gel, AGM, Liquid, Lithium（default: Gel)

Max. PV junction voltage *1: 100V(-20℃), 90V(25℃)

Max. input power: 260/520W

Day/night threshold: 3.0~12.8V/6.0~20.0V（default: 8/16V)

MPPT tracking range: (Battery voltage + 1.0V）~Voc*0.9 *2

Output current: 20A

Receiver mode: Always on, Street lamp, User mode Always on)

Max. tracking efficiency: >, 99.9%

Max. charging conversion: 98.0%

Dimensions: 13.6 x 13.6 x 6.7 cm

Weight: 0.83 kg

Own consumption: ›12mA

Communication: RS485 (RJ11 interface), IoT, Cyber-BT

Ground: Common minus

Ambient temperature: -20 ~ +55℃

Storage temperature:: -25 ~ +80℃

Ambient humidity: 0 ~ 100%RH

Protection rating: IP32

Max. altitude: 4000m

Set of 2x5m 2.5mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 2.5 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
