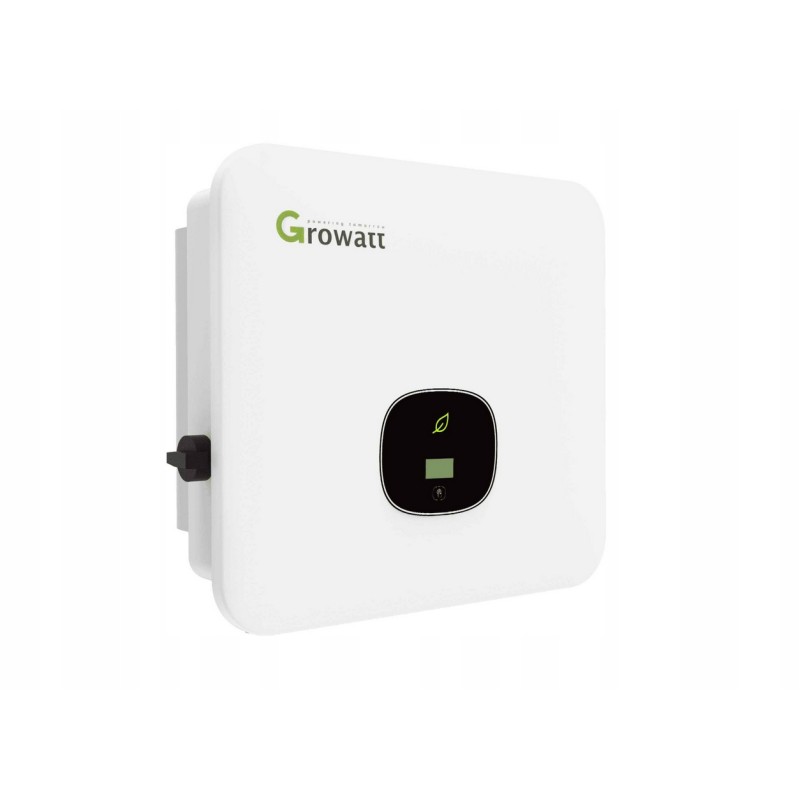

3-phase 8kW 2 MPPT hybrid inverter Growatt MOD 8000TL3-XH Three-phase hybrid photovoltaic inverters belonging to the new generation of inverters (X Series). The letter H in the model means it is a hybrid.

The Growatt MOD 8000TL3-XH hybrid inverter works with the Growatt ARK XH energy storage system, i.e. a high-voltage battery system with a BDC controller (Bidirectional DC/DC Box). To start hybrid operation, the inverter requires a minimum of three battery modules, but it will support as many as 10 battery modules, i.e. the energy storage capacity can range from 7.68 kWh to 25.6 kWh.

A huge advantage of the presented equipment is the AFCI function, i.e. detection and immediate extinguishing of electric arcs that may occur on improperly prepared connectors or when poor-quality connection materials wear out. An electric arc is an extremely dangerous phenomenon because it can cause a fire in the installation and, consequently, a threat to our house or other building.

Works with devices for monitoring the operation of photovoltaic installations: WiFi-X / LAN-X / ShineLink-X / GPRS-X.

Input data (direct current - DC) Maximum power of photovoltaic panels - 16,000W

Maximum DC voltage - 1,100V

Starting voltage - 160V

Voltage range - 140V-1000V

Nominal voltage - 600V

Maximum current per tracker - 16A

Maximum short-circuit current per tracker - 20A

Number of MPPTs - 2

Number of strings per MPPT - 1

Input data (DC battery) Compatible battery - ARK XH battery system (7.68 kWh - 25.6 kWh)

Operating voltage range - 600 - 900 V

Maximum operating current - 18.5 A

Maximum charging power - 10,000 W

Maximum discharge power - 8,800 W

Output data (alternating current - AC) Output power - 8,000W

Maximum output power - 8,800VA

Maximum current - 13.3A

Nominal voltage of alternating current, operating range - 230V/400V, 320-480V

Frequency alternating current, operating range - 50Hz60Hz ± 5Hz

Adjustable power factor shift - 0.8 leading...0.8 inductive

THDI - <.3%

AC connection - 3 Phase / L+N+PE

Efficiency Maximum efficiency - 98.6%

Weighted European efficiency - 98.1%

MPPT efficiency - 99.9%

Protections Reverse polarity protection - Yes

DC disconnector - Yes

DC overvoltage protection - Class II

AC overvoltage protection - Class II

AC short circuit protection - Yes

Insulation resistance monitoring - Yes

Ground fault monitoring - Yes

Network parameter monitoring - Yes

String fault monitoring - Yes

Residual current monitoring - Yes

Islanding protection - Yes

AFCI protection - Yes

General data Dimensions (Width / Height / Depth) in mm - 425/387/178

Weight - 14.0KG

Operating temperature range - -25°C ... +60°C

Height without negative effect on operation - 4000m

Power consumed at night - <.5.5 W

Topology - Transformerless

Cooling - Free convection

IP protection level - IP66

Relative humidity - 0~100%

General features DC connector - H4

Interfaces: RS485 / USB / WiFi / GPRS / RF / LAN - Yes / Yes / Optional / Optional / Optional / Optional

Display - OLED +LED
