Solar panel solar kit 140w MPPT

Solar kit 140W 12V MPPT 20A* Product code: 35166

The solar kit 140W 12V MPPT 20A, consisting of a 140W polycrystalline panel and an MPPT 20A charge controller, supplemented with a set of 4mm2 solar cables, 2x5m long with connectors, is an ideal solution for powering 12V devices in motorhomes, camping or on boats. This system enables the effective use of solar energy to power LED TVs, LED lighting, chargers, and economical compressor refrigerators with a thermostat.

The MPPT 20A charge controller maximizes the efficiency of solar panels, which allows for better use of solar energy and increases the efficiency of the entire system. The 140W polycrystalline panel is not only efficient, but also durable and resistant to various weather conditions.

Solar cables with a cross-section of 4 mm2, terminated with connectors, ensure solid and safe connections.

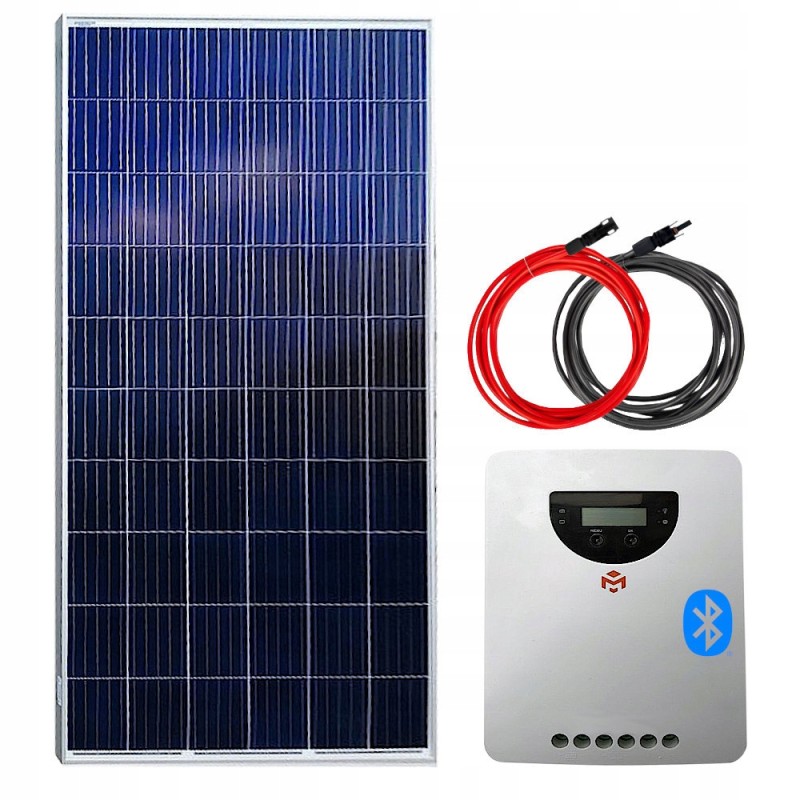

The set includes: * 1x Maxx 140W polycrystalline solar panel

* 1x Charge controller Lumiax 20A MPPT 12/24V Bluetooth

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Maxx 140W polycrystalline solar panel Model: 140W MAXX

Cells: Polycrystalline

Peak power [W]: 140

Power tolerance [%]: + 3%

Max power voltage: Vmp [V]: 18.4

Max current: Imp [A]: 7.61

No-load voltage Voc [V]: 22.08

Short circuit current: Isc [A] : 8.37

Length [mm]: 1270

Width [mm]: 670

Depth [mm]: 35

Weight [kg]: 8.2

Terminal: MC4

Frame: Anodized aluminum

Glass: Highly transparent tempered glass, thickness 3.2mm

Lumiax 20A MPPT 12/24V Bluetooth Charge Controller Model: MC2010BT

System Voltage [V]: Auto Sensing 12V/24V

Max. charging current [A]: 20A

Charging voltage MPPT: Before boost mode (pulse charging) or equalization mode

Volt. Boost: 14~14.8/28~29.6V at 25℃(default: 14.5/29V)

Volt. Equalization: 14~15.0/28~30V at 25℃ (default: 14.8/29.6V at 25°C (Liquid, AGM)

Float Voltage: 13~14.5/26~39V at 25℃ (default: 13.7/27.4) V)

Receiver disconnection at low voltage: 10.8~11.8V/21.6~23.6V（default: 11.2/22.4V)

Volt. reconnect: 11.4~12.8V/22.8~25.6V（default: 12.0/24.0V)

Overcharge protection: 15.8/31.3V

Max. battery connector voltage: 35V

Temperature compensation: 4.17mV/K for the cell (Boost, Equalization)， 3.33mV/K for the cell (Float - maintenance charging)

Target charging voltage: 10.0~32.0V (lithium, default : 14.4V)

Charging recovery voltage: 9.2~31.8V(lithium, default: 14.0V)

Volt. low voltage disconnection: 9.0~30.0V(lithium, default: 10.6V)

Volt. low voltage connections: 9.6~31.0V(lithium, default: 12.0V)

Battery type: Gel, AGM, Liquid, Lithium（default: Gel)

Max. PV junction voltage *1: 100V(-20℃), 90V(25℃)

Max. input power: 260/520W

Day/night threshold: 3.0~12.8V/6.0~20.0V（default: 8/16V)

MPPT tracking range: (Battery voltage + 1.0V）~Voc*0.9 *2

Output current: 20A

Receiver mode: Always on, Street lamp, User mode Always on)

Max. tracking efficiency: >, 99.9%

Max. charging conversion: 98.0%

Dimensions: 13.6 x 13.6 x 6.7 cm

Weight: 0.83 kg

Own consumption: ›12mA

Communication: RS485 (RJ11 interface), IoT, Cyber-BT

Ground: Common minus

Ambient temperature: -20 ~ +55℃

Storage temperature:: -25 ~ +80℃

Ambient humidity: 0 ~ 100%RH

Protection rating: IP32

Max. altitude: 4000m

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
