Solar panel set for plot 70w 12v 2xusb

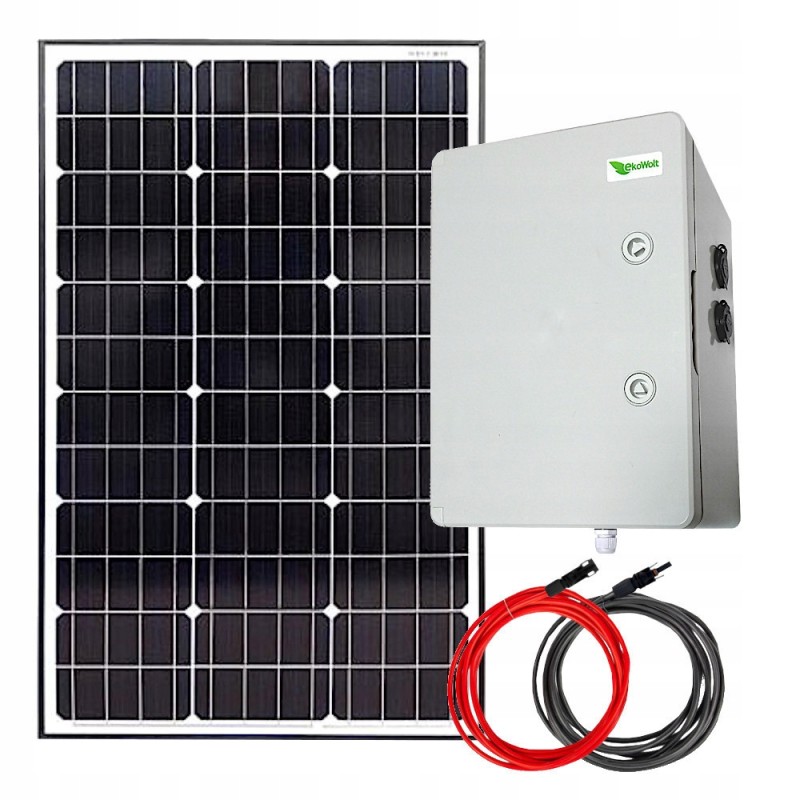

Off Grid 75W solar kit for a plot 40Ah 2xUSB* Product code: 35749

The Off Grid 75W solar kit for a plot is a modern solution for obtaining solar energy, perfect for places where access to a traditional energy source is limited or impossible. The set includes a 75W solar panel made of monocrystalline cells, characterized by higher efficiency compared to polycrystalline variants. This panel design ensures optimal use of solar energy even in less favorable light conditions. The key component of the set is the MPPT 15A charge controller, which effectively manages the energy from the panels, maximizing its use. Combined with a 40Ah gel battery, the set allows you to store a significant amount of energy that can be used as needed. The set also includes a complete set of solar cables, 5 meters long and 2.5 mm² in diameter, terminated with connectors, which facilitates installation and connection. In addition, the electrical box, equipped with two USB 2.1A outputs and a car cigarette lighter output, allows you to easily connect and power electrical devices.

The mounting bracket included in the set facilitates the installation of panels in a convenient place, ensuring maximum use of available sunlight.

The set includes: * 1x Maxx 75W monocrystalline solar panel

* 1x MPPT 15A charge controller

* 1x Maxx gel battery 40Ah 12V

* 1x ABS IP65 electrical box 50x35x20

* 1x Solar panel mounting bracket

* 1x Set of 2x5m solar cables 2.5 mm2 terminated with connectors

Maxx 75W monocrystalline solar panel Cells: Monocrystalline

Peak power: 75W

Power tolerance: +3%

Max power voltage [Vmp]: 18.9 V

Max current [Imp]: 3.97 A

Open circuit voltage [Voc]: 22.68 V

Short circuit current [Isc]: 4.37 A

Operating temperature range: -40 - +85 °C

Length: 81 cm

Width: 51 cm

Depth : 3 cm

Weight: 6.55 kg

Terminal: MC4

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

MPPT 15A charging controller System voltage: 12V/24V

Compatibility with batteries: AGM, Gel

Max. PV power: 195W (12V) / 390W (24V)

Max. charging current: 15A

Max. output current: 10A

Maximum panel voltage: 75V

Charging off: 14.7V (24V 29.4V)

Power on after discharge: 12.0V (24V 24V)

Power disconnection: 10.8V (24V 21.6V)

MPPT efficiency: 99%

USB output: 5V 1A

Operating temperature: -35C ~ +55C

Protection level: IP32

Height: 9.95 cm

Width: 13.10 cm

Depth: 3.40 cm

Weight: 0.27 kg

Maxx 40Ah 12V gel battery Model: 12-FM-40

Nominal voltage: 12 V

Capacity: 40 Ah

Full tightness: Yes

Manufacturing technology: Gel

Connector: M6

Width: 19.7 cm

Height: 17 cm

Depth: 16.5 cm

Weight: 12.1 kg

ABS IP65 electrical box 50x35x20 material: ABS plastic, halogen-free

color: gray RAL7035

door: opaque

operating temperature: -25°C ÷, 60°C

impact resistance class: IK10

tightness class: IP65

GWT: 650°C

GWT HF: 960°C

Weight: 3.9 kg

height: 50 cm

width: 35 cm

depth: 19 cm

Mounting bracket for solar panels Z-type brackets: 4 pieces

M6/20mm screws: 4 pieces

M6 nuts: 4 pieces

6mm spring washers: 4 pieces

6mm plain washers: 8 pieces

Roof screws: 8 pieces

Set of 2x5m 2.5mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 2.5 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
