Solar kit solar panel 800w 100ah

Off Grid solar kit 230V 340W / 800W* Product code: 35601

The Off Grid 340W solar kit is an advanced energy solution, ideal for use in homes and other places where independent power supply is required. It contains two solar panels made of monocrystalline silicon, which guarantees high efficiency and reliability. The key element of the set is a 12V 800W hybrid inverter. It allows you to store the energy produced by solar panels in a 100Ah battery. When the battery charge level drops, the inverter automatically switches to mains power, which ensures uninterrupted energy supply.

By using a hybrid inverter, the user can effectively manage energy and reduce electricity consumption from the power grid, which translates into significant savings in electricity bills.

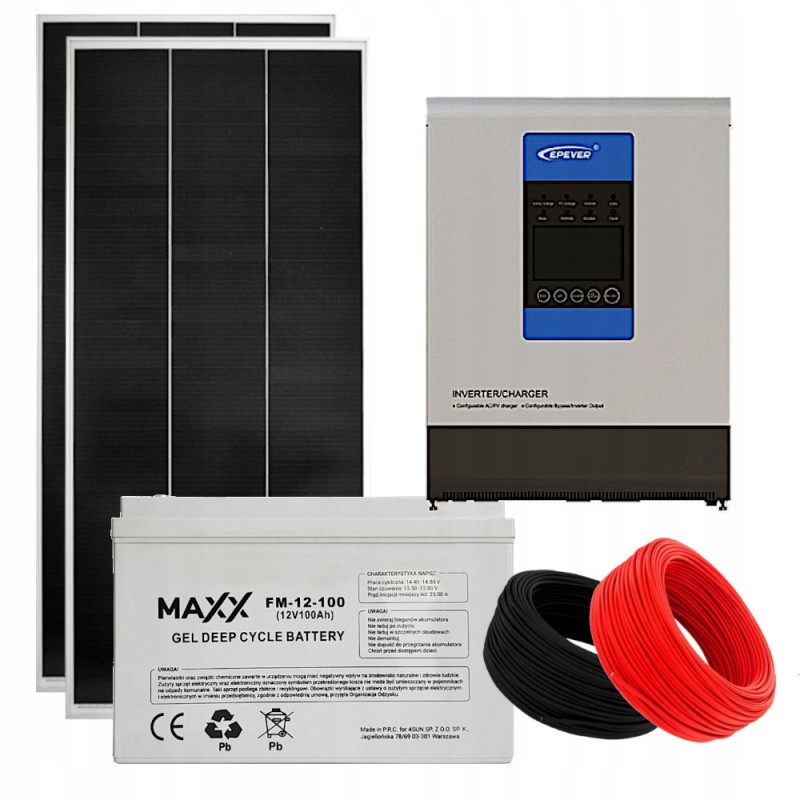

The set includes:* 2x Solarfam 170W monocrystalline solar panel

* 1x Off Grid Epever 12V 800W hybrid inverter

* 1x Maxx gel battery 100Ah 12V

* 1x Set of 2x15m solar cables 4mm2

* 2x M8 battery connection cable 35mm2 50 cm

* 1x MC4 serial connectors

Solarfam 170W monocrystalline solar panel - 2 pieces Cells: Monocrystalline

Peak power: 170 W

Power tolerance: ± 3%

Efficiency: 21.4%

Max power voltage [Vmp]: 20.41 V

Max current [Imp]: 8.32 A

No-load voltage [Voc]: 24.26 V

Short circuit current [Isc]: 8.75 A

Operating temperature: -40°C to +85 °C

Protection: Bypass diode

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 123 cm

Width: 67 cm

Frame: 3 cm

Weight: 8 kg

Epever 12V 800W Off Grid Hybrid Inverter Model: UP1000-M3212

Nominal battery voltage: 12V DC

Battery input voltage range: 10.8～16VDC

Continuous output power: 800W

Overload (5s): 1600W

Range output voltage: 220VAC±5%,230VAC(-10%～+5%)

Output frequency: 50/60±0.1 Hz

Output mode: Single-phase

Output wave: Pure sine wave

Maximum efficiency: 95%

Input voltage range :: 160VAC ～ 280VAC （working voltage range), 170VAC ~ 270VAC (initial voltage range)

Max. Mains charging current:: 20A

Max. Open circuit voltage: 60V (At minimum operating ambient temperature), 46V（25℃）

Max. PV input power: 390W

Max.PV charging current: 30A

Compatibility with batteries: AGM, Gel, Liquid, Lithium

Tracking efficiency: ›99.5%

Charging conversion efficiency: 98%

Own consumption: ›0.8 A

Protection grade: IP30

Working environment temperature: -20℃～50℃（full input and output without derating）

Dimension: 38.6 x 30 x 12.6cm

Mounting dimension: 23cm

Mounting hole size: Φ.8mm

Net weight: 7.3 kg

Maxx 100Ah 12V gel battery Model: 12-FM-100

Capacity: 100Ah

Nominal voltage: 12V

Technology: Gel

Full tightness: Yes

Connector: M6

Width: 33 cm

Depth: 17.1 cm

Total height: 22 cm

Weight: 28.4 kg

Set of 2x15m solar cables 4mm2 Length of red wire: 15 meters

Length of black wire: 15 meters

Cross section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

M8 battery connection cable 35mm2 50cm - 2 pieces35mm2 = cable diameter approx. 9.5mm

MC4 serial connectors Contact material: Tinned copper

Suitable for cables: 4.0mm²~6.0mm² 12AWG-10AWG

Resistance: below 0.3 m

Waterproof: IP 67

Pin dimensions: Ø,4mm

Flame class: UL94-V0

Rated voltage: TUV 1000V DC / UL 600V DC

Rated current: 20A-30A

Protection class: Class II

Degree of pollution: 2
