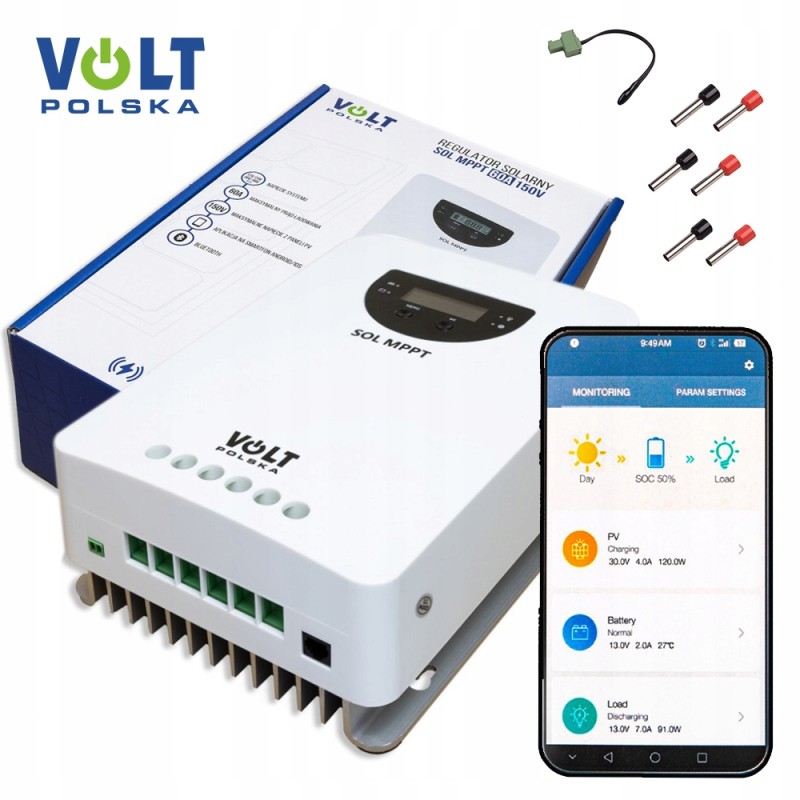

MPPT solar charging controller 150v 12v 48v 60a

MPPT 60A REGULATOR with BLUETOOTH interface 150V 60A, battery voltage that can be connected to the regulator 12/24/36/48V.

SOL MPPT solar regulators are small devices used to charge batteries from a connected set of solar panels. The main distinguishing feature is the MPPT (Maximum Power Point Tracking) technology, which means that the regulator quickly and precisely tracks the maximum power points on the PV solar panel (tracking efficiency >99.9%). By optimizing the charging process, the regulator effectively extends the battery life compared to standard PWM regulators.

* Application for download:

Solarlife in the Apple Store for IOS

Solar life in the Google Play store for Android

Manual in PolishSOL models MPPTs connect wirelessly, e.g. to a smartphone, which allows you to remotely control their operating parameters. The devices are used in photovoltaic installations, among others. in single-family houses and summer houses.

SOL MPPT solar regulators are equipped with four-stage charging: MPPT, BOOST (impulse), Equalization, Float, as well as many modes of controlling the connected load: always-on , dusk to dawn, night and manual. They also have fully automatic protections (short circuit, temperature, overload).

Technical data

Max charging current: 60A

Battery voltage: 12/24/36/48V

Maximum voltage from panels: 150V

Own power consumption: ≤ 8mA(12V),≤12mA(24V)

For batteries: AGM, GEL, WET, Lithium

BOOST voltage: 14.5~14.8/28~29.6V/42~44.4/56~59.2V (at 25°C)

Equalization voltage: 14~15/28~30/42~45/56~60V14.8/29.6 (at 25°C)

Float voltage: 13~14.5/26~29/39~43.5/52~58V (at 25°C)

Load disconnection at low voltage: 10.8~11.8V/21.6~23.6V/32.4~35.4/43.2~47.2V

Reconnection voltage: 11.4~12.8/22.8~25.6/34.2~38.4/ 45.6~51.2V

Overcharge protection: 15.8/31.3/46.8/62.3V

Temperature compression: -4.17mV/K per cell (Boost, Equalization) -3.33mV/K per cell (Float)

Dimensions: 262x186x97mm

Weight: 3kg

Protection: IP32

The SOL MPPT solar controller is designed for charging batteries from a connected set of solar panels. This modern and multifunctional device charges based on the latest and most efficient MPPT charging technology.

By optimizing the charging process, the regulator effectively extends the battery life compared to standard PWM regulators.

The SOL MPPT model is equipped with a BLUETOOTH wireless communication function, so you can remotely control and view the controller's operating parameters.

The most important features:

Modern technology for tracking the maximum operating point MPPT (Max Power Point Tracking)

Efficiency of conversion / tracking, 99.9%

Readable LCD display showing the most important operating parameters

Automatic recognition of the voltage of the connected 12/24V battery

For work with GEL (gel), AGM, lithium and liquid electrolyte batteries

Temperature sensor with automatic temperature compensation (if the temperature exceeds the set value, the charging current will decrease to reduce the temperature)

Four-stage charging: fast, impulse (boost), equalizing, sustaining (float)

Many modes of controlling the connected load: always-on, from dusk to dawn, night and manual

Regulator operation via a dedicated smartphone application via Bluetooth (wireless control of operating parameters)

Fully automatic protections (short circuit, temperature, overload)
